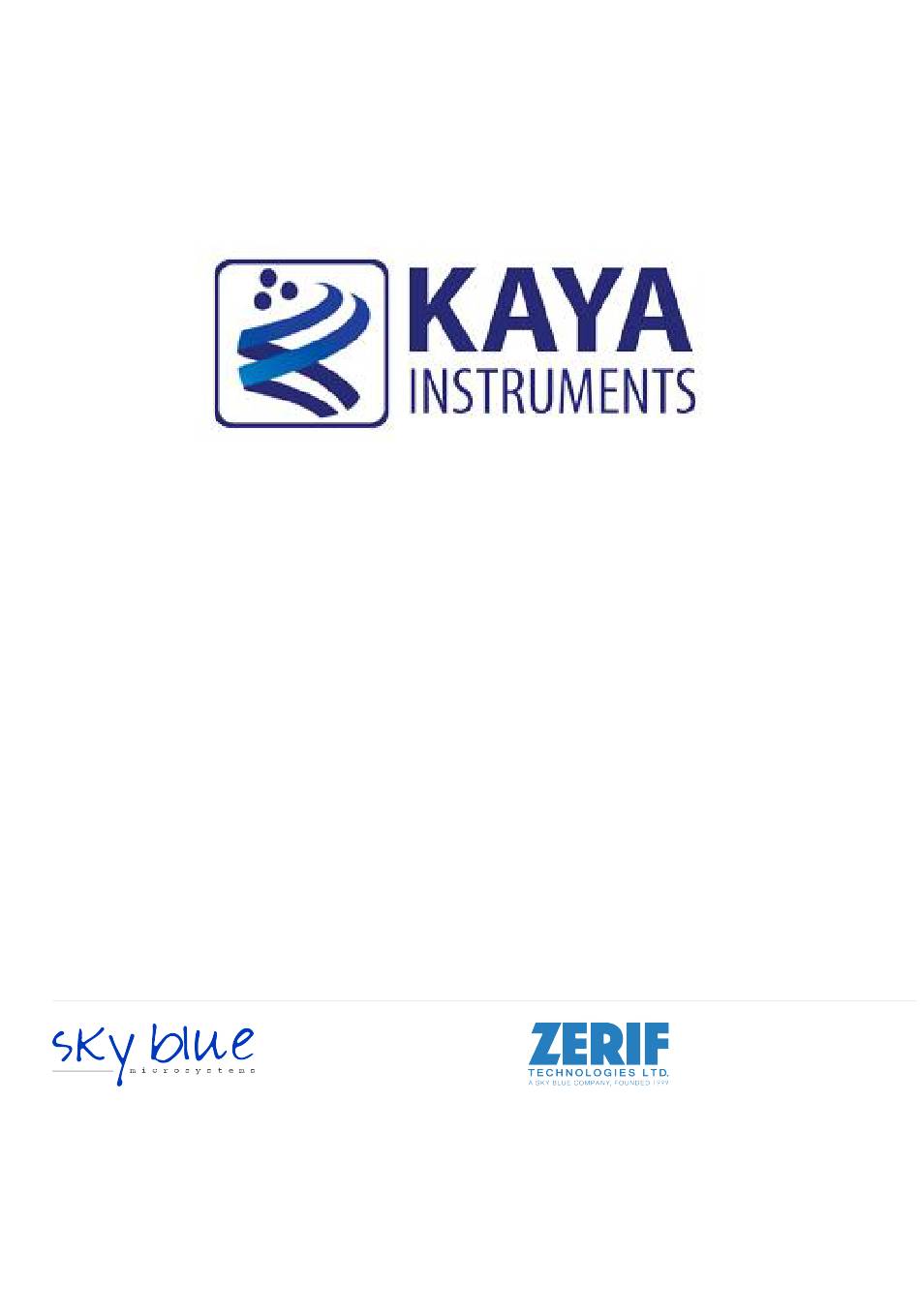

Predator CoaXPress Frame Grabber
Hardware Reference and Installation
June
2014
International Distributors
Guide
(Part-No. KY-FGP-200)
Sky Blue Microsystems GmbH
Geisenhausenerstr. 18
81379 Munich, Germany
+49 89 780 2970, info@skyblue.de
www.skyblue.de
In Great Britain:
Zerif Technologies Ltd.
Woodberry House, 2 Woodberry Grove
Finchley, London N12 0DR
+44 115 855 7883, info@zerif.co.uk
www.zerif.co.uk

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Predator CoaXPress KY-FGP-200 and is the answer not in the manual?

Questions and answers

Summary of Contents for Kaya Instruments Predator CoaXPress KY-FGP-200

  • Page 1 Predator CoaXPress Frame Grabber Hardware Reference and Installation Guide (Part-No. KY-FGP-200) June 2014 International Distributors In Great Britain: Zerif Technologies Ltd. Sky Blue Microsystems GmbH Geisenhausenerstr. 18 Woodberry House, 2 Woodberry Grove 81379 Munich, Germany Finchley, London N12 0DR +49 89 780 2970, info@skyblue.de +44 115 855 7883, info@zerif.co.uk www.skyblue.de www.zerif.co.uk...
  • Page 2: Table Of Contents

    Contents Figures and Tables ....................2 Introduction ......................3 Safety Precautions ..................3 Disclaimer ....................4 Key Features ......................6 Overview ....................6 Features ..................... 6 Product Applications ................. 7 Related documents and accessories ............8 System Description ....................9 Example System Block Diagram ..............
  • Page 3: Figures And Tables

    Figures and Tables Figures 1: C ................9 IGURE RESS SYSTEM BLOCK DIAGRAM 2: P ................... 10 IGURE REDATOR BOARD EXTERNAL VIEW 3: E ................12 IGURE XTERNAL OWER SUPPLY CONNECTOR 4: PCB M ..................13 IGURE ECHANICAL IMENSIONS LED’ 5: P ................
  • Page 4: Introduction

    Introduction Safety Precautions With your Predator CoaXPress Frame Grabber board in hand, please take a minute to read carefully the precautions listed below in order to prevent unnecessary injuries to you or other personnel or cause damage to property.  Before using the product, read these safety precautions carefully to assure correct use.
  • Page 5: Disclaimer

    CoaXPress video streams. KAYA Instruments assumes no responsibility for any damages resulting from the use of this product for purposes other than those stated. Even if the product is used properly, KAYA Instruments assumes no responsibility for any damages caused by the following: - Earthquake, thunder, natural disaster or fire resulting from the use beyond our responsibility, acts caused by a third party or other accidents, the customer’s willful or...
  • Page 6 Introduction KAYA Instruments assumes no responsibility or liability for: - Erasure or corruption of data arising from use of this product. - Any consequences or other abnormalities arising from use of this product, or damage of this product not due to our responsibility or failure due to modification.
  • Page 7: Key Features

    Key Features Overview Predator is low-cost Frame Grabber supporting CoaXPress standard. The Predator is capable of receiving video streams of up to 4 CoaXPress links in single, dual and quad modes, for simultaneous capture from up to two dual link or four single link cameras or single quad link camera.
  • Page 8: Product Applications

    Key Features  Supporting Windows and Linux OS  API for developing custom applications  Plug-ins modules for Matlab  Gen<i>Cam compliant  GenTL support  Full or Half-height bracket  8Gb image buffer  PCIe Gen2 x4 Half-length PCIe card ...
  • Page 9: Related Documents And Accessories

    Key Features Related documents and accessories Documents:  Vision Point App User Manual  Vision Point API Reference Book  CoaXPress standard 1.1  KAYA Frame Grabbers Programming Guide Accessories:  CoaXPress cables (DIN to DIN)  CoaXPress cables (DIN to BNC) Predator Frame Grabber User Guide...
  • Page 10: System Description

    System Description Example System Block Diagram The Predator Frame Grabber supports multiple modes of configuration and system topology. Few of these are presented in following diagrams. Single Camera Topology: Single or Dual CoaXPress links with up to 6.25 Gb per link topology. Maximum throughput to PCIe of 12.5 Gb/sec.
  • Page 11: External View Of The Board

    System Description External View of the Board Figure 2 shows the Predator Frame Grabber board specification. Figure 2: Predator board external view Predator Frame Grabber User Guide...
  • Page 12: Mechanical Specifications

     An availably x4 (or x8 or x16) PCIe slot. Gen 2 support is recommended to faster data transfer.  Vision Point Application installation KAYA Instruments doesn’t guarantee compatibility with all computers that have the above specifications. Please, consult KAYA representative for any specific issue Power supplies The Predator board receives its power directly from PCIe slot of the motherboard.
  • Page 13: Figure 3: Externalp

    Mechanical Specifications External Power Supply Connector Figure 3: External Power supply connector Predator Frame Grabber User Guide...
  • Page 14: Mechanical Dimensions

    This card can be installed in both Standard Height and Low profile computers, simply by replacing the bracket. The exact board mechanical dimensions are as defined in Figure 4. For more detailed information please, contact KAYA Instruments representative. Figure 4: PCB Mechanical Dimensions Predator Frame Grabber User Guide...
  • Page 15: Installation And Configurations

    Installation and Configurations Installation instructions Predator board is standard PCIe card with 4 lanes connector. It can be installed in any PCIe Gen2 connector of the motherboard with 4 lanes and up. Note: Board should be installed before you install your software. 1.
  • Page 16: Predator Leds

    Installation and Configurations Predator LEDs Each CoaXPress link of the Frame Grabber equipped with indication bi-color LED. The LEDs behaves according to the defined in section 5.3 of the CXP standard. The possible LED’s states described in Table 1. LED state Description Solid orange System is not initialized...
  • Page 17: Predator Hardware Reference

    Installation and Configurations In additional to CoaXPress links LEDs, the Predator Board is equipped with status LEDs. LED 0 LED 1 LED 2 LED 3 CH 0 LED CH 1 LED Figure 5: Predator Board LED’s locations Board Status LEDs functionality is described in Table 2: LED # Description LED 0...
  • Page 18: Predator Board Block Diagram

    Installation and Configurations Predator Board Block Diagram Equalizer/ Video stream GPIO 1.0/2.3 Driver channel Control channel Processing GPIO Unit Equalizer/ Controller Video stream 1.0/2.3 Driver channel Control channel External power PoCXP connector PCIe Gen 2.0 × 4 (up to 12.5 Gbps) Figure 6: Predator Board Block Diagram Predator Frame Grabber User Guide...
  • Page 19: Video Stream Acquisition

    Installation and Configurations Video stream acquisition Predator is designed to acquire different video streams compliant with CoaXPress standard 1.0 over up to 4 CoaXPress links. When connected to transmitting device, the frame grabber communicates with Camera device to determine link parameters, such as data rate. For different options please refer to Vision Point Application User Manual.
  • Page 20 Installation and Configurations The electrical connection of the GPIO connector is described following principal schematic diagram: 3.3V 3.3V 3.3V 3.3V MOCD207M IO_IN0 IO_IN_EXT0 IO_IN1 IO_IN_EXT1 IO_IN2 IO_IN_EXT2 IO_IN3 IO_IN_EXT3 MOCD207M MOCD207M IO_OUT_EXT0 3.3V IO_OUT0 RIN0p RIN0n IO_OUT_EXT1 3.3V IO_OUT1 RIN1p RIN1n IO_OUT_EXT2 DOUT0p...
  • Page 21 Installation and Configurations The pinout of IO connector is as described in Table 3. Signal Name Function Electrical Standard Description Number LVDS Input 0p LVDS input LVDS Positive signal of LVDS pair LVDS Input 0n LVDS input LVDS Positive signal of LVDS pair LVDS Input 1p LVDS input...
  • Page 22: Absolute Maximum Ratings

    Installation and Configurations LVTTL 2 GPIO LVTTL General Purpose IO LVTTL 3 GPIO LVTTL General Purpose IO Table 3: GPIO connector pinout Absolute maximum ratings Specification Values 3.3V power supply -1.0V to +7.0V 12V power supply -0.3V to 14V Storage temperature -55°C to 125°C Operating ambient temperature 0°C to 50°C...
  • Page 23: Electrical Characteristics For Board Io's

    Installation and Configurations Electrical characteristics for board IO’s: Symbol Parameter Condition Units Differential Output Voltage ∆V Change in Magnitude of | mV for Complementary = 100 Ω Output States Offset Voltage 1.12 1.23 1.375 ∆V Change in Magnitude of | mV OUT- for Complementary OUT+...
  • Page 24: Table 11: Ttl

    Installation and Configurations Symbol Parameter Test condition Units Output High Voltage = min, I = -2 mA Output Low Voltage = min, I = 2 mA Note: Vdd = 3.3V, unless specified otherwise Table 9: LVTTL output specifications Symbol Parameter Test condition (note 1) Units ≥...
