INSTRUCTIONS
COMM-EL Ethernet Kit for AKC 55
Part no. COMM-EL120
Application:

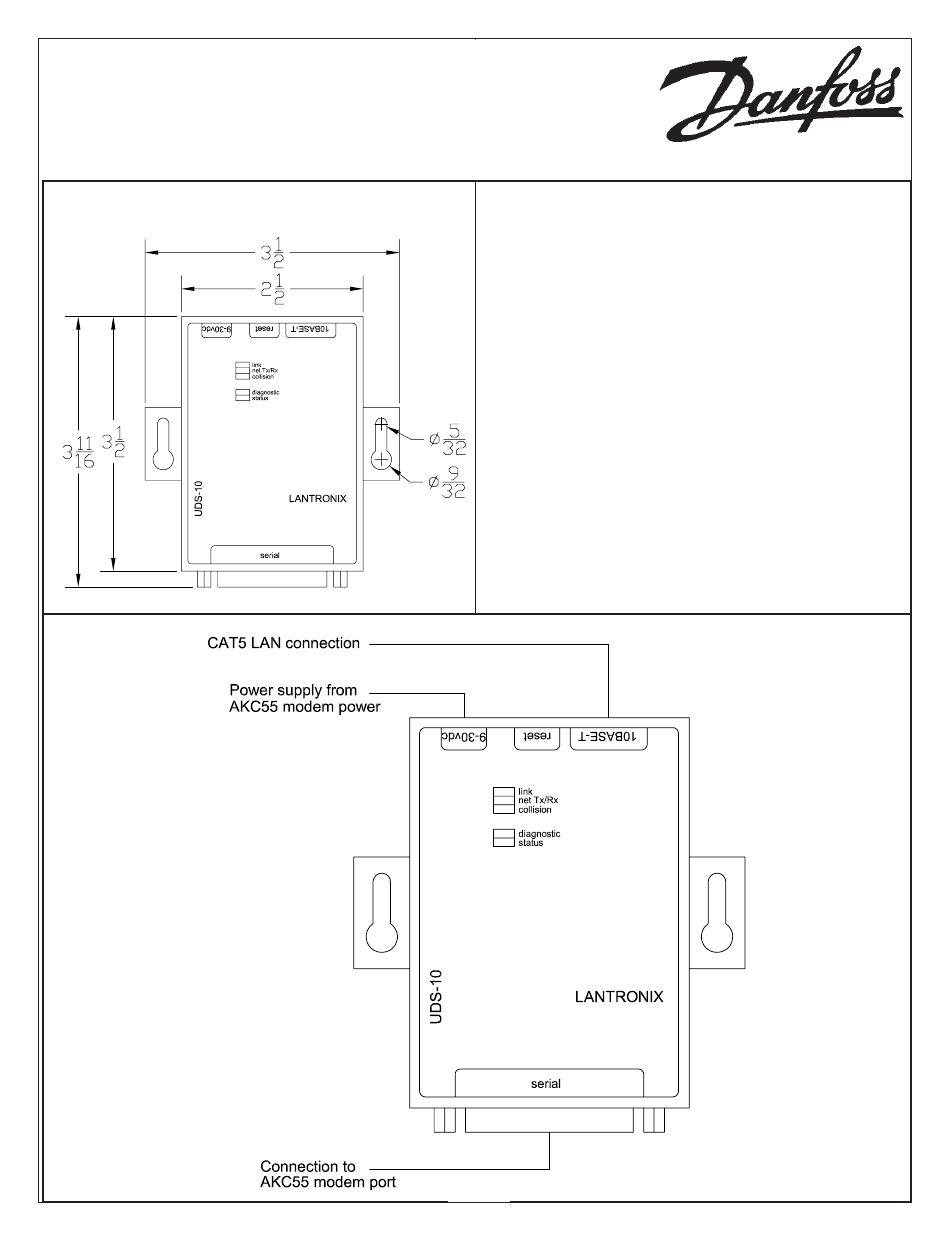

Device Server Dimensions
Ethernet communications for an AKC 55 system are
achieved by installing and configuring an Ethernet device
server, which is a kind of specialized modem. For this
purpose, use the Danfoss COMM-EL kit.
Mounting:
Using the hook-and-loop fastener provided, mount the
Lantronix UDS-10 device server on a rigid flat surface
within 41/2 feet of the AKC 55 controller. Alternatively,
use the screw-mounting tabs, with appropriate screws.
The device server can be mounted inside a rack panel,
away from high voltage wiring.
Wiring
COMM-EL Ethernet Communications Kit for AKC 55
07/02.1
084R9813
RI.8C.P1.22
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Summary of Contents for Danfoss COMM-EL120
- Page 1 Ethernet communications for an AKC 55 system are achieved by installing and configuring an Ethernet device server, which is a kind of specialized modem. For this purpose, use the Danfoss COMM-EL kit. Mounting: Using the hook-and-loop fastener provided, mount the Lantronix UDS-10 device server on a rigid flat surface within 41/2 feet of the AKC 55 controller.
- Page 2 The Danfoss COMM-EL kit contains: the adapter into the connector labeled Serial on the 1. One Lantronxi UDS-10 device server. UDS-10. 2. One AKC55-MPM piggyback power supply 8. Insert the 26-pin keyed connector into the corre- board. sponding socket at J8 near the top left corner of the 3.
- Page 3 Flush Mode Disconnect Time 00:00 Send Char 1 Send Char 2 AKC 55 Configuration These instructions contain only cursory infomration about navigation through the menus of the AKC 55. Navigation, both at the keypad and when using a PC, are discussed in greater detail in the AKC 55 User’s Manual.
- Page 4 Configuration of the AKC 55, Alarm Routing: 4. When you have finished modem configuration, the screen will look like this: 1. Start at the Alarm Configuration Screen (from the Main Menu, select Configuration, then Alarms). On the Alarm Configuration screen, select Routing. This is the screen that appears: 5.
- Page 5 3. Next, select the Type: field (the default reads Selecting Alarms to Route via Ethernet RS232) and toggle it to Modem. 1. Press the EXIT key (on your PC, the ESC key) until you return to the Alarm Routing screen. (If you get lost, press the MENU key or, on your PC, repeat- edly press the ESC key to reach the Main Menu.
- Page 6 Direct order fax: 800-948-3123 Danfoss shall not be responsible for any errors in catalogs, brochures, or other printed material. Danfoss reserves the right to alter its products at any time without notice, provided that alterations to products already on order shall not require material changes in specifications previously agreed upon by Danfoss and the Purchaser.
