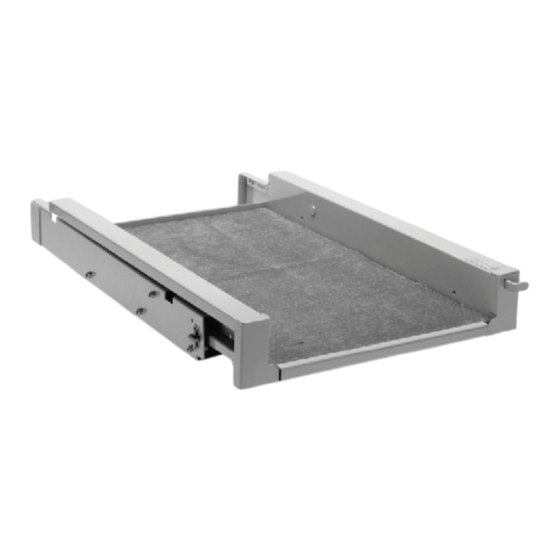

Kwikee Super Slide Installation

SUPER SLIDE ASSEMBLY
2 Slide assemblies (1 left, 1 right)
2 Base brackets (1 left, 1 right)
TRIM PIECES*
1 Front support bracket (U-channel)
1 Rear support bracket (L-bracket)
* 2-way pull uses 2 U-channels
OTHER HARDWARE AND PARTS
(NOT INCLUDED: Quantity of
hardware and size of deck material
vary by installation)
1 3/4" plywood deck, cut to fit
application5/16"-18 carriage bolts
1 Carpet or other material to cover
plywood for deck (optional)
5/16"-18 carriage bolts (length depends
on mounting surface thickness)
5/16" flat washers
5/16" split lock washers
5/16" 18 hex nuts
1/4" pan-head wood screws
Slide length determined
by compartment depth.
Slide width determined by
width of deck installation.
SLIDE ASSEMBLY
FRONT
TRIM
PIECE
PLYWOOD DECK AND COVERING
(not included)
Super Slide

Installation Instructions

READ ALL INSTRUCTIONS CAREFULLY BEFORE STARTING
1. SuperSlide consists of seven
component parts, 2 (left and right)
base brackets, 2 (left and right) slide
assemblies, 1 front U-channel*, 1 rear
L-bracket*, 1 deck (constructed of 3/4"
plywood and carpet, not included)
* 2-way pull SuperSlides use 2 U-channels
Make sure that all component parts
and hardware listed are available
before continuing installation.
2. Set the base brackets in the
compartment, positioning them a
minimum of 2 1/2" back from the
inside of the compartment door or
door hardware if applicable.) Align
both left and right base brackets in a
squared parallel configuration as
shown in Figure 1.
3. Mark the locations of the square
mounting holes, remove the base
brackets and drill the mounting holes
with an 11/32" diameter drill bit. Use
5/16"-18 carriage bolts, flat washers,
lock washers, and hex nuts (not
included) and securely bolt the base
brackets in place.
4. The depth of the deck is set by the
vertical flanges on the slide
assemblies . The width of the deck is
REAR
TRIM
determined by measuring the distance
PIECE
inside the vertical flanges on the base
brackets and subtracting 2 1/2". Use
the holes in the slide component
horizontal flange to attach the deck.
NOTE: If compartment opening has a lip on the bottom edge which is greater than
3/4", it will be necessary to construct plywood spacers to raise the base brackets
and allow clearnance for slide extension. Make spacers the same dimension as the
base bracket horizontal flanges.
Super Slide
Installation
2/04 Kwikee Products Co., Inc.
Kwikee #1421100 Rev. 2 2/04
TM

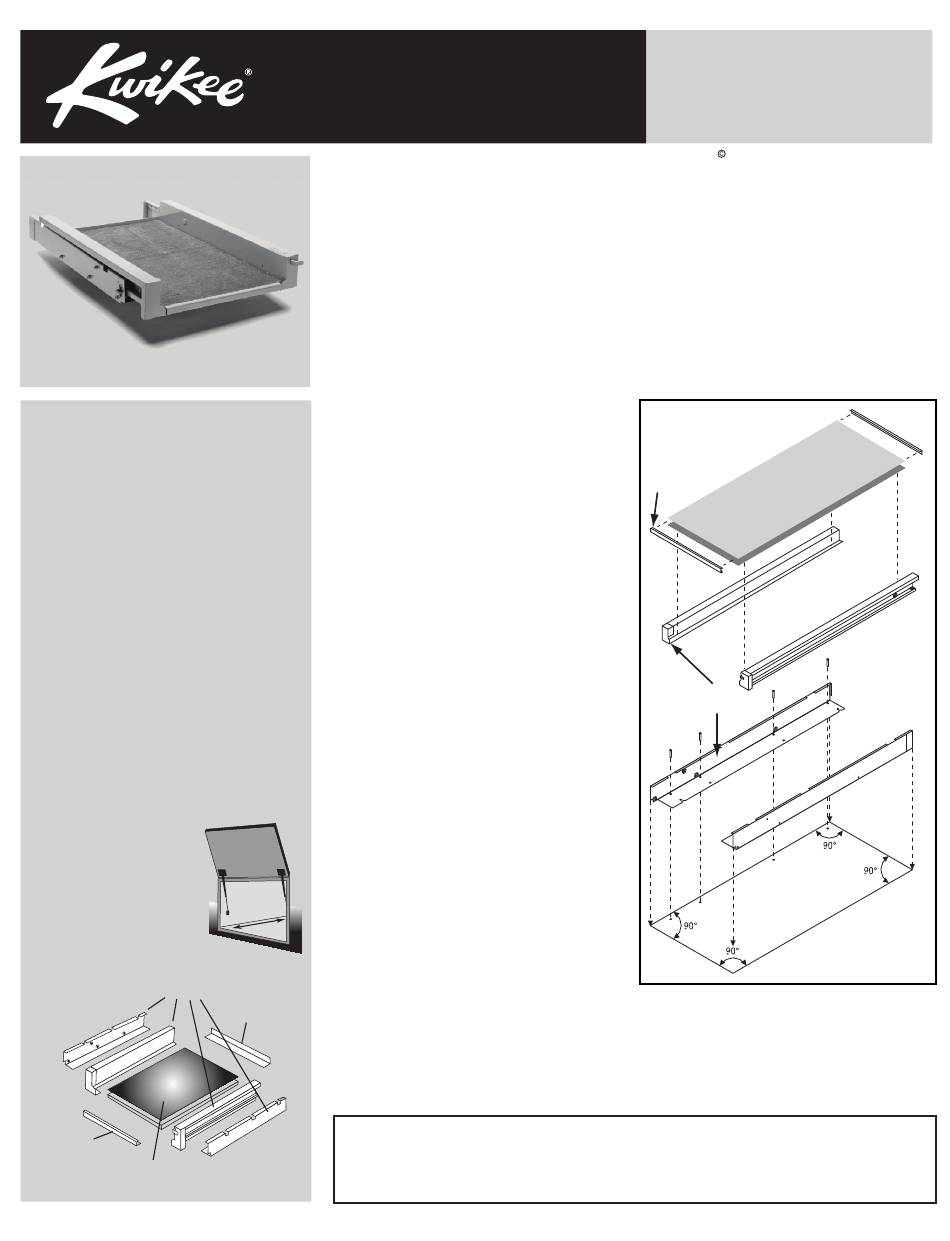

Figure 1
Front
U-channel
VERTICAL
FLANGE
Front
5. Attach the front U-channel and rear
L-bracket to the deck using pan-head
screws and the holes provided. The
2-way pull SuperSlides use U-channel
on front and rear.
TM
Rear
L-bracket
Carpet over
3/4" Plywood Deck
(not included)
Left slide
assembly
Right slide
assembly
Left base
bracket
Right base
bracket
Compartment
floor
