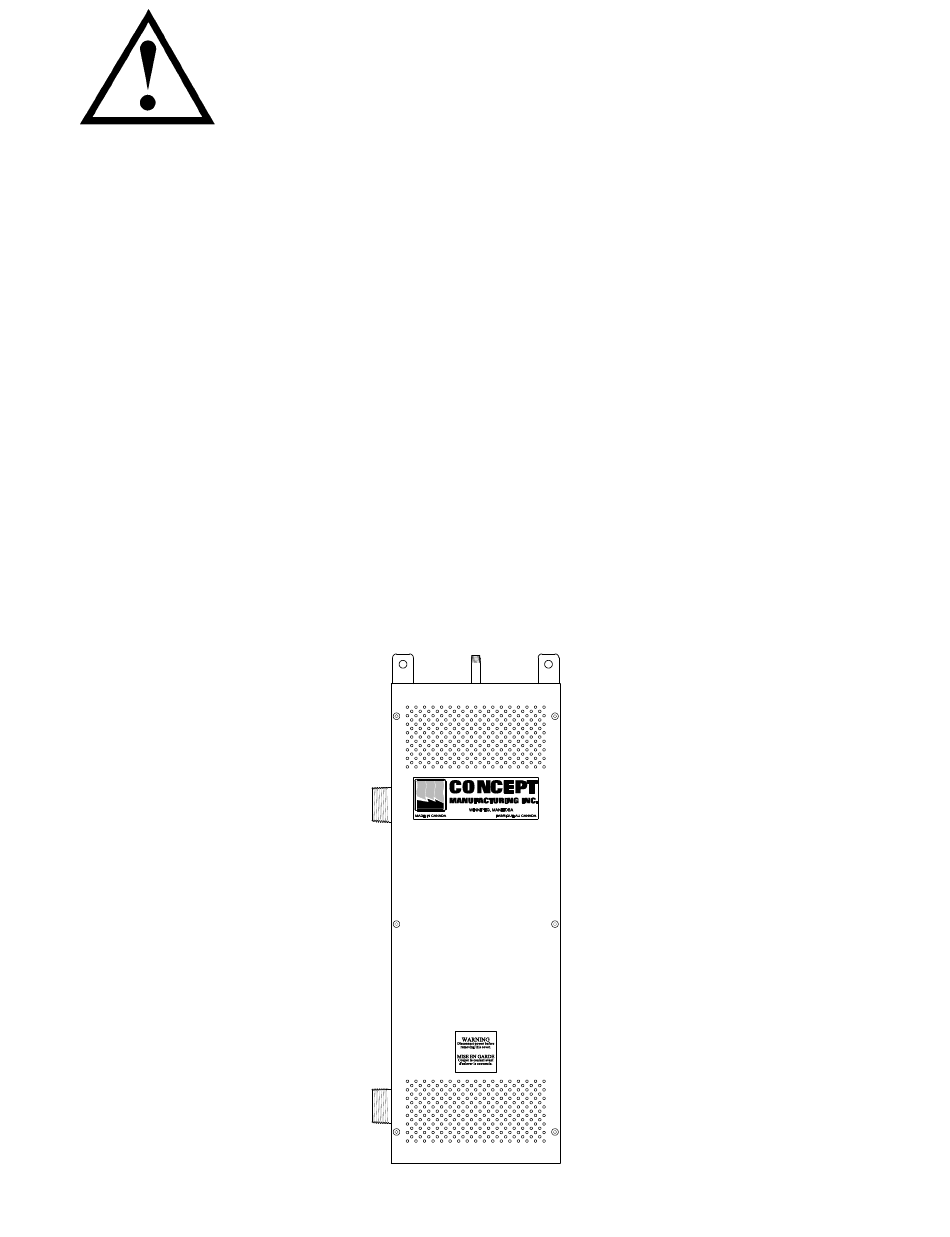

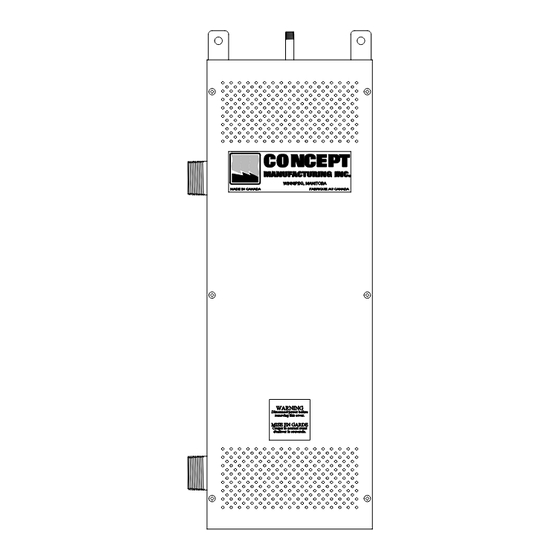

- Page 1 Warning: Use only water or an appropriate antifreeze. Do not use any other liquids especially methanol, automotive antifreeze or any kind of oil. Do not exceed 50% antifreeze. LION BOILERS CEB Series Boiler Installation Manual CEB V12.0 Printed in Canada...
-
Page 3: Before You Begin
Before You Begin Please read this manual thoroughly before you begin. If you encounter problems please see the troubleshooting section near the end of this manual. This boiler should only be installed, tested, or repaired by quali ed personnel with experience in hydronic heating systems, and electrical installations. -
Page 4: Specifications
Specifications Model Volts Phase Amps Minimum Breaker Size Wire Size (Amps) CEB-3 12.5 CEB-5 20.8 CEB-6 25.0 CEB-8 33.3 CEB-9 37.5 CEB-10 41.7 CEB-12 50.0 CEB-15 62.5 CEB-18 75.0 CEB-19 79.2 CEB-20 83.3 CEB-23 95.8 CEB-24 100.0 CEB-25 104.2 CEB-28 116.7 CEB-208-9 25.0... -
Page 5: System Design
New Boiler Inspection All Boilers are inspected and tested at the factory prior to shipment. On receipt of your new boiler, be sure to check for any damage that may have occurred during shipping. Any such damage should be reported to the carrier immediately. Never install a damaged boiler. -
Page 6: Mechanical Installation
Installation Location (1) The site selected for installation of your boiler should leave at least 24” of clear space in front of the unit. The sides require only enough room for plumbing and electrical connections (see Fig. 2). The rear of the unit is considered as a “Zero Clearance” face (see Fig. - Page 7 Dissimilar Metals Do not connect dissimilar metals on the inlet and outlet nipples. Dielectric Unions should be used. Another solution is to use brass or cast iron ttings between the boiler and any copper ttings that you may be using. Failure to do so will result in galvanic corrosion and cause the inlet and/or outlet nipples to fail over time.
-
Page 8: Check List
This setting may have to be adjusted slightly to ideally match the boiler control system to the thermostat, as well as overcome the normal inertia of the radiation system. A setting too low will be characterized by a short cycle, which does not allow the room temperature to be satis ed before the boiler shuts down. -
Page 9: Troubleshooting Guide
Maintenance At the start of each heating season it is advisable to have a quali ed technician check and inspect the boiler and the heating system for proper operation. Troubleshooting Guide Problem Correction Boiler not heating, water cool. Check power supply, fuses or breakers. Check thermostat setting. - Page 10 Concept Manufacturing Inc. Limited Warranty Concept Manufacturing Inc. (the "Manufacturer") warrants its Hydronic Boiler (the "Boiler") to be free from defects in material and workmanship under normal use and maintenance for a period of two (2) years from the date of original installation. The Manufacturer further warrants the tank to be free from defects in material and workmanship under normal use and maintenance for an additional eight (8) years for a total of ten (10) years from the date of original installation.
- Page 11 6. Damage as a consequence of electrical surges, inadequacy or interruption of electrical services or corrosion, whether caused by chemicals or the environment; 7. Damages as a consequence of oods, winds, res, lightning, freezing conditions or other conditions beyond the control of the Manufacturer. LIMITATION OF WARRANTY THIS LIMITED WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES WHETHER EXPRESS OR IMPLIED, AND ALL SUCH OTHER WARRANTIES, INCLUDING WITHOUT LIMITATION...
- Page 18 Troubleshooting Step By Step Procedure The following is a step by step procedure to help in troubleshooting any problems with this boiler. These steps should be performed only by quali ed personnel with experience in hydronic heating systems, and electrical heating equipment. You are working with high voltages and should be extremely careful.
- Page 19 (6) With the circuit board now activated, the power relays should turn on one at a time. If they have not started to come on as yet, temporarily turn up the temperature on the aquastat to the maximum setting, it should be returned to the normal setting when you are nished troubleshooting.
- Page 20 a) If the relays energize, replace the high limit control. (9) If all the relays energize and there is no heat, then check for power to each of the heating elements. a) With all the relays energized, check that there is power to each of the elements with a volt meter.
