Summary of Contents for SilverNet SIL ECHO M5

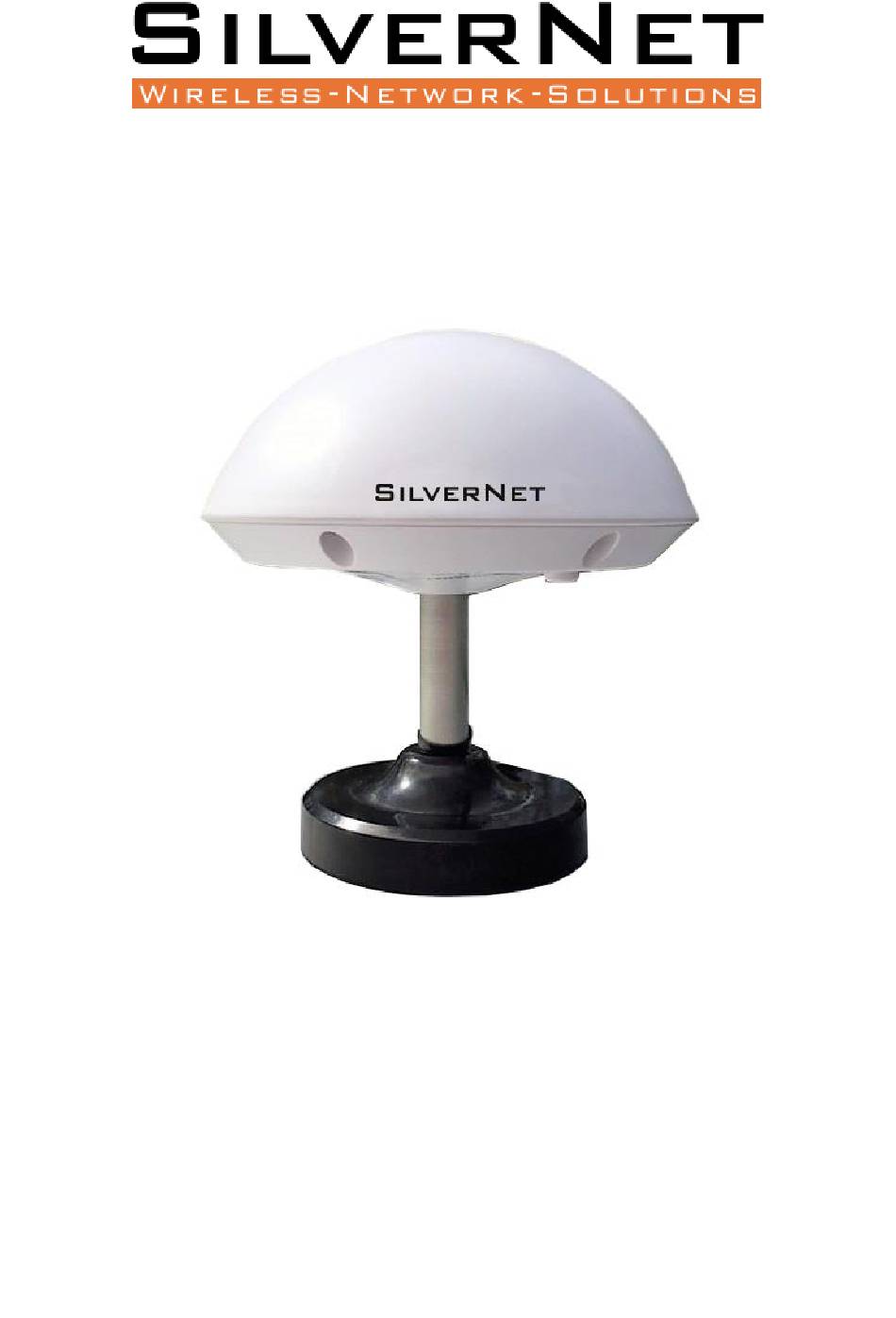

- Page 1 SIL ECHO M5 M5 S PECTRUM NALYSER UIDE V1.1 www.silvernet.com...
-
Page 2: Table Of Contents
CE Statement ........................20 Troubleshooting ........................21 Warranty ..........................21 Contact SilverNet ........................21 Copyright Information ......................21 Other SilverNet Products ..................... 22 ECHO Range ......................... 22 Industrial Network Transmission ..................22 Intelligent Wi-Fi Solutions ....................22 Industry Leading Technical Support ..................22... -
Page 3: Running Silverview
This guide assumes that you have powered the Analyser with the supplied PoE Injector and are locally connected to a windows PC via an Ethernet cable. UNNING ILVER 1. Open SilverView or directly browse onto the web GUI via the analysers default IP address. - Page 4 3. Double click on the M5 within SilverView to access the web GUI or alternatively right click it and select “Configure”. 4. Input the default Username and Password (Admin/Password) and select your select your country from the dropdown menu. Then click “Login”. Running SilverView...
- Page 5 The analyser status page looks like the below image. Running SilverView...
-
Page 6: Installing Java
NSTALLING 1. Browse to Java.com to download and install Java. Follow the prompts as follows in the below images; You may receive a message (Please ignore this unless you are using Microsoft Edge). Installing Java... - Page 7 Installing Java...
- Page 8 Installing Java...
-
Page 9: Setting Up Java On Your Pc
ETTING UP AVA ON YOUR 1. Open your start menu and type in “Configure Java” or navigate to the Java installation directory. Installing Java... - Page 10 2. Go to the “Security” tab and select “Edit Site List”. 3. Click “Add” and input the IP address of the Analyser. Installing Java...
- Page 11 4. Select “OK” and “Continue” and close the Java Configuration. NOTE: If you plan on changing your analysers IP address then you will need to reconfigure the Java security settings with the new IP address. Installing Java...
-
Page 12: Running The Analyser
UNNING THE NALYSER 1. Navigate to the analyser’s web GUI and select “Advanced” followed by the “Start” button 2. When prompted, click “Keep” on the downloads bar and accept the risk to run the application. Running the Analyser... -
Page 13: The Analyser Interface
HE ANALYSER NTERFACE There are four views available and these can be enabled or disabled by selecting the buttons at the top of the interface. The Realtime chart displays current noise levels in dBm on each specific channel. • The yellow lines represent current dBm levels •... - Page 14 The Energy Distribution chart displays noise levels relevant to each channel. The Usage chart displays how many other devices are communicating on each channel. Running the Analyser...
- Page 15 The Waterfall chart displays noise level peaks over time. To change the scan width, go to “View” and then “Options”. Running the Analyser...
- Page 16 You can change the view and channel bandwidth scan here. To close the analyser, select “File” and then “Exit” or click the cross in the top right corner to close the window. Running the Analyser...
- Page 17 To stop the analyser, select “STOP” in the web GUI. Running the Analyser...
-
Page 18: Standards
TANDARDS ECLARATION OF ONFORMITY SilverNet Limited declares the following: Product Name: ECHO Range 95 Model No.: PICO 95, MICRO 95, LITE 95, MAX 95 conforms to the following Product Standards: This device complies with the Electromagnetic Compatibility Directive (89/336/EEC) issued by the Commission of the European Community. -
Page 19: Warnings
Connect the equipment into an outlet on a circuit different from that to which the radio/TV receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Modifications made to the product, unless expressly approved by SilverNet Limited, could void the user’s authority to operate the equipment. RF E XPOSURE... -
Page 20: Ce Statement
Hereby, SilverNet Limited declares that this device is in compliance with the essential requirements and other relevant provisions of the R&TTE Directive 1999/5/EC. -
Page 21: Troubleshooting
Use SilverView and run a data test. ARRANTY The ECHO Range comes with a 1-year warranty as standard. For full terms and conditions of warranty please go to www.silvernet.com/terms-and-conditions/ ONTACT ILVER Email us at support@silvernet.com... -
Page 22: Other Silvernet Products
THER ILVER RODUCTS ECHO R ANGE NDUSTRIAL ETWORK RANSMISSION NTELLIGENT OLUTIONS NDUSTRY EADING ECHNICAL UPPORT Copyright Information...
