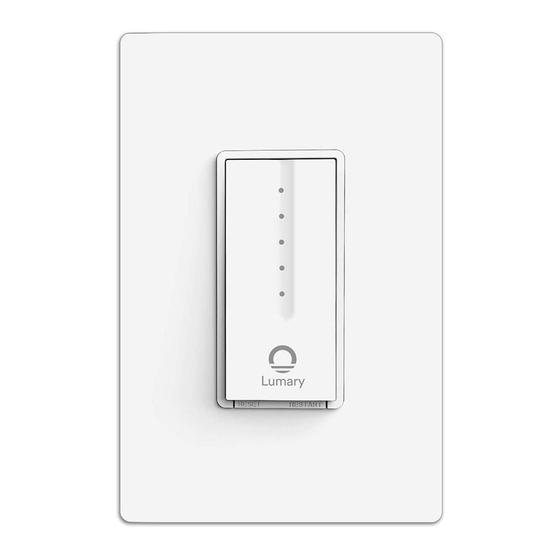

Lumary SMART Wi-Fi Start Manual

Dimmer switch
Hide thumbs
Table of Contents

Advertisement

Quick Links

SMART Wi-Fi
DIMMER SWITCH
START GUIDE
Lumary

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SMART Wi-Fi and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Lumary SMART Wi-Fi

  • Page 1 SMART Wi-Fi DIMMER SWITCH START GUIDE Lumary...
  • Page 2 Thank you for purchasing your Lumary smart home product. Ready to get started? Download the Lumary app to manage your switches (and all other Lumary devices) straight from your phone or tablet. Easily connect to your home Wi-Fi and control multiple devices with the touch of your fingertips.

  • Page 3: Get Ready

    SMART Wi-Fi VOICE LIGHT CONTROL SWITCH GUIDE START GUIDE • Smart Wi-Fi Light Switch • Face Plate • 4x Wire Nut • 2x Screws • Start Guide • Voice Control Guide Get Ready • Turn OFF power supply at the circuit breaker or fuse. Use a noncontact voltage tester to ensure that power is off.
  • Page 4 Download the Lumary app...
  • Page 5 Register a Lumary account STEP 1 STEP 2 Enter your mobile phone number Enter the verification code or email address. and create a password.
  • Page 6 Register a Lumary account, cont. STEP 3 Log into the app.
  • Page 7 Install STEP 1 STEP 2 Shut off power at the circuit Make sure the existing switch box breaker for the switch that you has a neutral wire*. Remove old are replacing. More than one switch by disconnecting all wires. disconnection may be required to *Neutral wire is typically white.
  • Page 8 Install, cont’d Load Neutral STEP 3 (Required) (Required) Connect Switch’s neutral wire (white) to your home’s neutral wire. Connect Switch’s two load (black) wires (labeled as “SW” on the back of Switch) to your home’s load wires, then connect the live wire. Be mindful not to reverse the live and load wires.
  • Page 9 Once power is connected, the blue indicator light will blink to indicate that TAP is ready to Screw connect to Wi-Fi. Faceplate Indicator Light Solid: Connected Fast Blink: Easy Mode Slow blink: AP Mode On: Switched On Lumary Off: Switch Off...
  • Page 10 Restart button is also known as the Wi-Fi Reset button. Power Reset Press to reset the circuit if the switch isn't working. Reset Restart Wi-Fi Reset Press and hold to put it in Wi-Fi pairing mode. See next page for Lumary Wi-Fi Reset instructions. RESET RESTART...
  • Page 11 - Reset one time (press and hold) to reach Easy Mode (Rapidly blinking blue, 2x per second) - Reset again (press and hold) to reach AP Mode (Slowly blinking blue, every 3 seconds) Solid: Connected Fast Blink: Easy Mode Slow blink: AP Mode On: Switched On Lumary Off: Switch Off...
  • Page 12 Connect: Easy Mode Lumary STEP 2 STEP 1 Open the Lumary app. In the top Make sure TAP’s light is rapidly corner of the Devices screen, flashing blue. click (+). If not, reset to reach Easy Mode Choose “Smart Power”.
  • Page 13 STEP 3 STEP 4 Enter your Wi-Fi network and The Lumary app will connect to TAP. password. NOTE: Lumary can’t connect to 5GHz networks. *If the connection fails, try to connect using AP Mode.
  • Page 14 Make sure TAP’s light is slowly flashing blue. If not, reset to reach AP mode (page 9). STEP 2 STEP 3 Open the Lumary app. In the top Press “Next” and enter corner of the Devices screen, click (+). your Wi-Fi details.
  • Page 15 Lumary Lumary STEP 4 STEP 5 Follow the instructions to choose The Lumary app will connect to TAP. the device from your Wi-Fi list. NOTE: Lumary can’t connect to 5GHz networks.

  • Page 16: Frequently Asked Questions

    Frequently Asked Questions 1. Can I share with family and friends? Yes, you can share access to TAP and any other Lumary device. In the Lumary app, press the “Profile” button and click on “Device Sharing” to give or revoke sharing permissions.
  • Page 17 Check with your router specifications for exact range data. 7. If my Wi-Fi/Internet goes down, will Lumary still work? Lumary products need to be connected to Wi-Fi in order to use them remotely. 8. What do the green and blue lights mean? The green light indicates power.

  • Page 18: Troubleshooting

    • Phone with iOS 9® or later, or Android™ 4.1 or later • Existing 2.4GHz Wi-Fi network (not compatible with 5GHz Wi-Fi networks) • Lumary app IMPORTANT: TAP requires a neutral wire and single pole. TAP is a one-way switch, not a multi-location switch. Please consult a licensed electrician if you cannot locate a neutral wire or are unfamiliar with electrical installations.

  • Page 19: Fcc Notice

    Disconnect power before installing or modifying this product. CAUTION: Suitable for indoor use only. Support: If you encounter any issues, please contact us at cs@inlintek.com for help. To explore our full selection of products, visit us at: www.lumary.tech Made in China...
