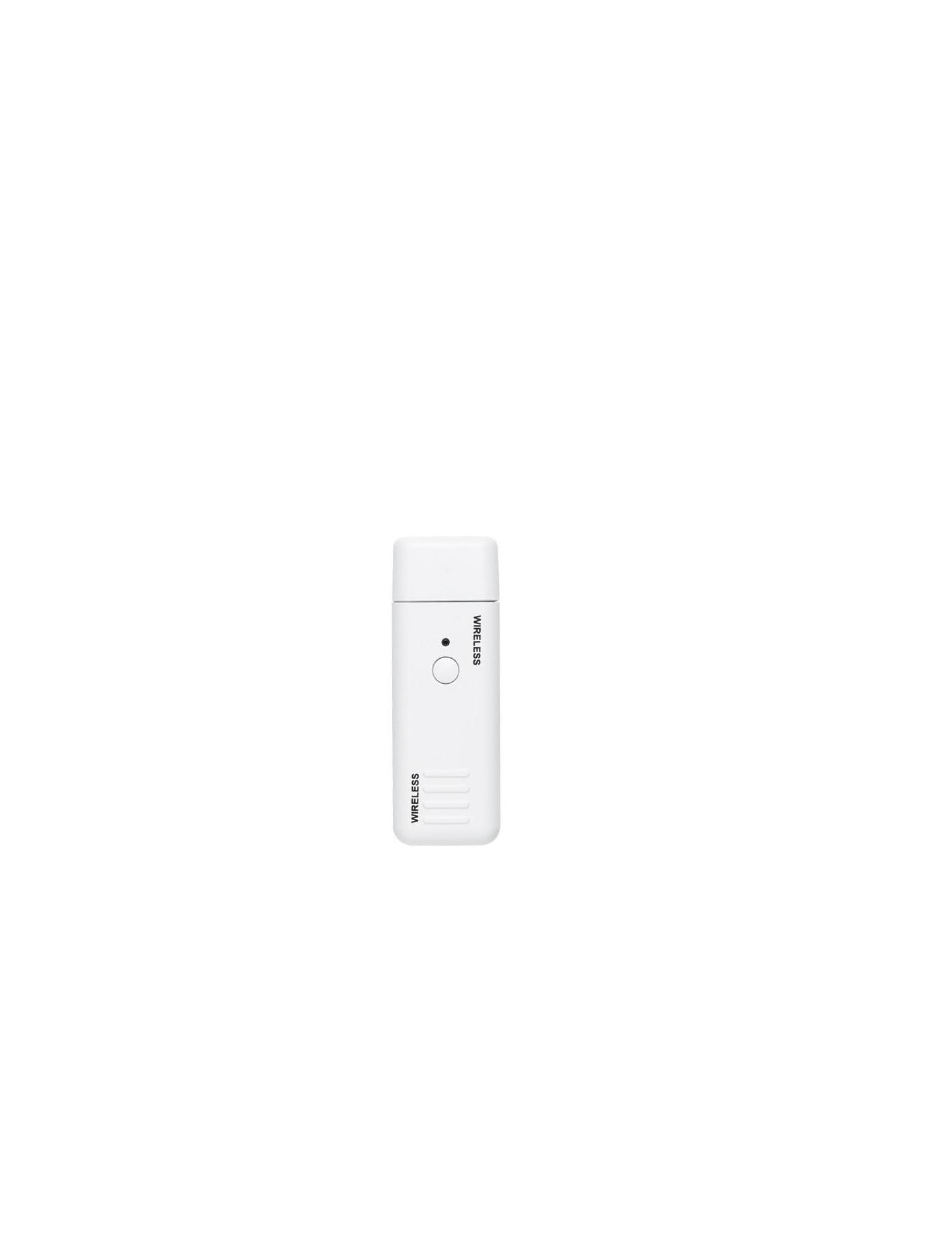

NP05LM1 USER GUIDE WIRELESS ADAPTER
FOR PROJECTORS
Table of Contents
1. Introduction .......................................................2
2. Installation ........................................................3
2. Cautions ...........................................................6
4. Specifications ...................................................6
NP05LM1
02122019
Page 1 of 7
Advertisement
Table of Contents
Summary of Contents for Dukane NP05LM1
- Page 1 NP05LM1 USER GUIDE WIRELESS ADAPTER FOR PROJECTORS Table of Contents 1. Introduction ............2 2. Installation ............3 2. Cautions ............6 4. Specifications ...........6 NP05LM1 02122019 Page 1 of 7...
- Page 2 Thank you purchasing the Wireless LAN Unit NP05LM1. Install the Wireless LAN Unit in the Projector for use. For information on supported projectors, refer to our brochures. Refer to the user’s manual that comes with the projector for installation or removal procedures and for how to set the wireless LAN.
- Page 3 Installation and Connections Connecting to a Wireless LAN (Optional: NP05LM series) The USB Wireless LAN Unit also provides a wireless LAN connection. To use a wireless LAN connection, you are required to assign an IP address to the projector. Important: • If you use the projector with the USB Wireless LAN Unit in the area where the use of wireless LAN equipment is prohibited, remove the USB Wireless LAN Unit from the projector. • Buy the appropriate USB Wireless LAN Unit for your country or area. NOTE: • The green LED on the USB Wireless LAN Unit flashes to show that the USB Wireless LAN Unit is working. • Your computer’s wireless LAN adapter (or unit) must be complied with Wi-Fi (IEEE802.11b/g/n) standard. Attaching the USB Wireless LAN Unit NOTE: • The USB Wireless LAN Unit must be inserted into the USB Wireless LAN Unit port in the correct direction. It cannot be inserted in the reverse direction. If the USB Wireless LAN Unit is inserted in the reverse direction with excessive force applied, the USB port may break. • Before touching the USB Wireless LAN Unit, touch a metallic object (such as a door knob or aluminum window frame) to discharge the static electricity from your body. • Always insert or remove the USB Wireless LAN unit when the main power is turned off. Failure to do so may cause projector malfunction or damage to the USB wireless LAN unit. If the projector will not work correctly, turn off the projector, disconnect the power cord, and then connect it again.
- Page 4 Installation and Connections Connection Example (1) [SMART CONNECTION] Easily connect the projector to multiple terminals as computers and smart phones by PIN code. 1. Download the application software, “MultiPresenter” from our company web site and install it onto each terminal as a computer. http://www.nec-display.com/dl/en/soft/multipresenter/index.html 2. Power ON the projector and display on the on-screen menu and then select as the bellows in order: [SETUP] → [WIRELESS LAN] → [SMART CONNECTION] for [PROFILE] 3.
- Page 5 Installation and Connections Connection Example (3) [INFRASTRUCTURE] Connect the projector to wired/wireless LAN via wireless LAN access point. Wireless access point Wired LAN 1. Connect a computer to the projector via wired LAN. (→ page 96) 2. Use the computer’s browser to display the projector’s HTTP server. (→ page 36) 3. Use an HTTP server to set the wireless LAN. (→ page 40) Select either [SIMPLE ACCESS POINT] or [INFRASTRUCTURE] for [WIRELESS] in [SETTINGS] of [NETWORK SETTINGS] and then perform detail settings in [SETTING]. 4. Click [APPLY] to connect to the wireless LAN. NOTE: • To use the HTTP server function, the projector must be connected to a network. First, connect the projector to a network by the wired LAN and then perform required settings for the wireless LAN on the HTTP server. • If network conflict is occurred, the STATUS Indicator starts to blink in orange. In this case, change the IP address. If you want to change the wireless LAN setting on the projector after setting it on the HTTP server, perform setting change on the on-screen menu. (→ page 79) Page 5 of 7...
-
Page 6: Specifications
Cautions ●Cautions on Usage Warning • The Wireless LAN Unit is not meant for use with facilities or equipment involving the safeguard of human life, such as medical equipment, nuclear facilities or equipment, aeronautical or space equipment, transportation facilities or equipment, etc., or with facilities or equipment requiring high levels of reliability. - Page 7 149/153/157/161 channels (5745 to 5805 MHz) * Dual channel communication will be automatically switched between “enabled” and “disabled” according to the usage environment. DUKANE CORP AV SERVICE DEPT 2900 Dukane Drive St Charles, IL 60174 800-676-2487 / 630-762-4032 Fax 630-584-5156 avservice@dukane.com...
