SNIPE 2
Recommendations for assembly

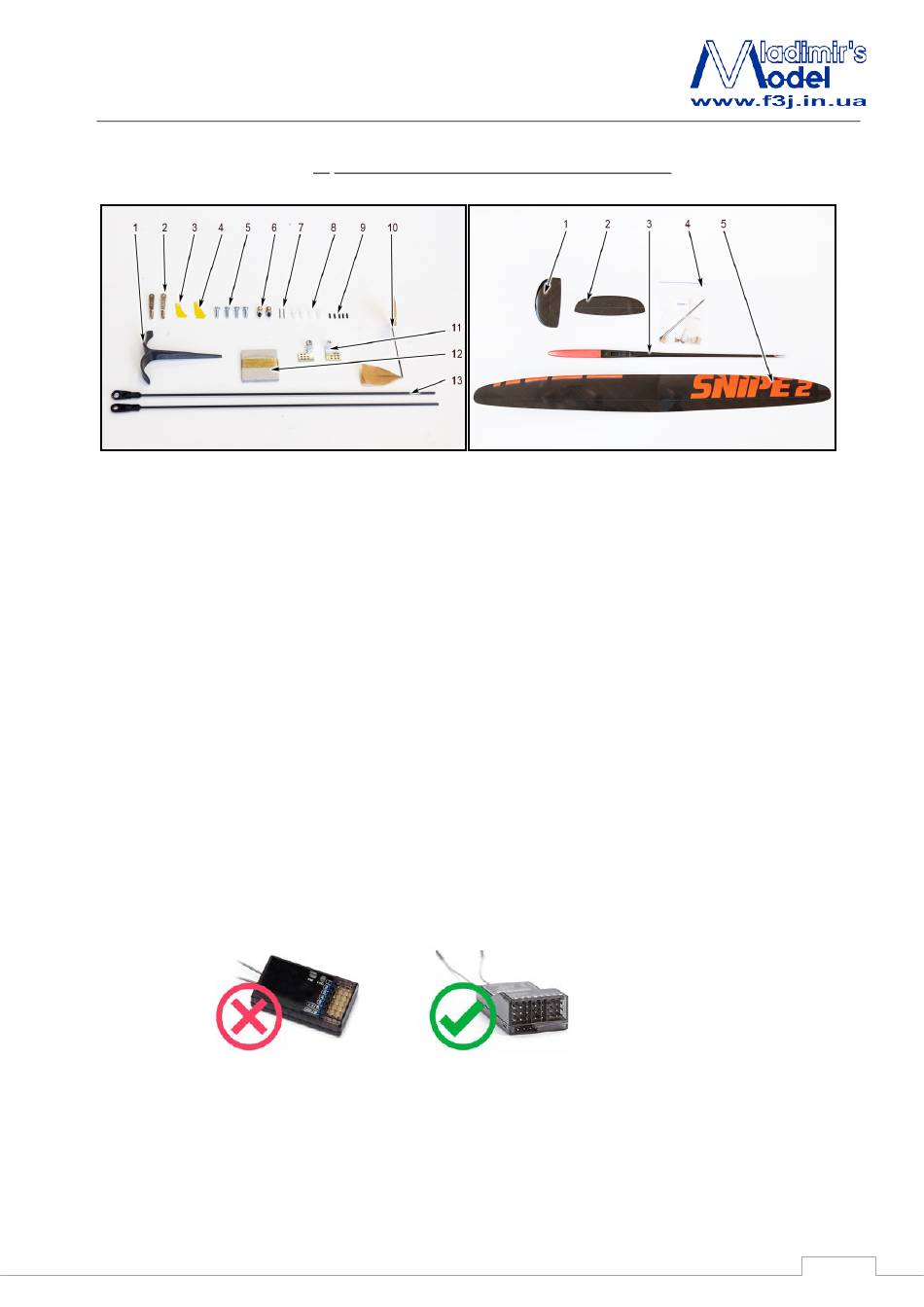

Accessory kit:
1 - Launching peg;
2 - Aileron clevises (with M2.5 thread);
3 - Stabilizer control horn;
4 - Rudder control horn;
5 - Set of screws for fixing of the wing;
6 - Ball heads of rods;
7 - Wing horn shafts;
8 - Screws for fixing stabilizer (2 pcs, 1 spare set);
9 - Pipes for the closing control cables;
10 - Torsion spring;
11 - Wing control horn;
12 - 3m kevlar thread;
13 - Aileron pushrods.
1) Ballast Snipe 2;
2) Battery 1S: 240-600 mAh, 2S: 150-250 mAh
3) Servos: KST X08, MKS DS75K;
4)
Receivers:
1)
Superglue and liquid medium, the accelerator
2)
Cutter
3)
Masking tape
1. The list of parts and materials to build:
1 - Vertical stabilizer;
2 - Stabilizer;
3 – Fuselage with nose cone;
4 – Accessoires of Snipe 2;
5 - Wing.
List of recommended hardware to run your model:
The list of materials needed to build the model:
Parts set:
4)
Pen and ruler
5)
Pliers
6)
Sandpaper number 240-320
1
