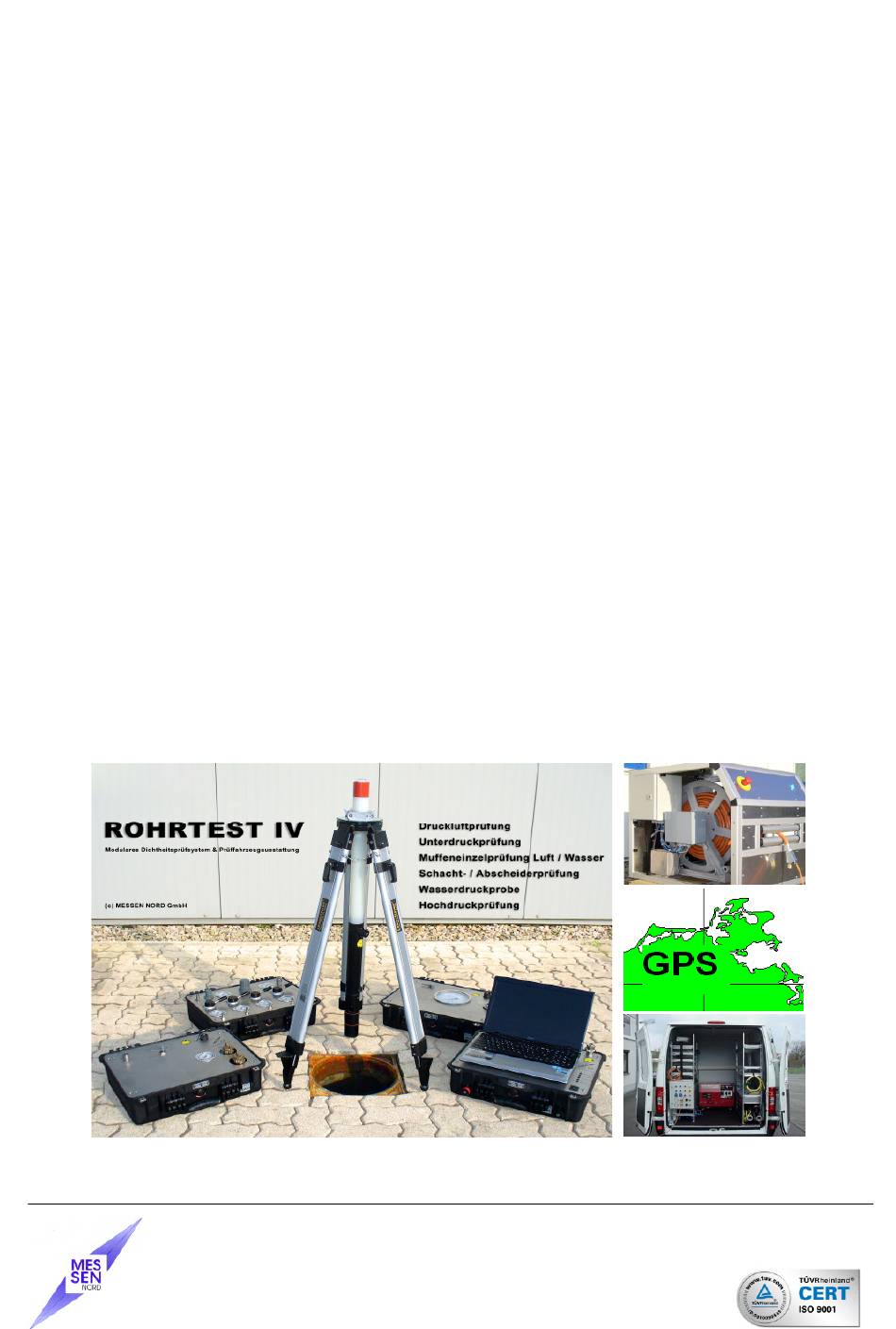

MesSen Nord ROHRTEST-4 Manual

Tightness test system for sewers, sewage pipes and pipe connections, separators, collectors and shafts, drinking water / waste water pressure pipes
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Sewers, sewage pipes and pipe connections
acc. to EN 1610, EN 858-1, EN 858-2, DIN 1999-100, DIN 4040-100,
Drinking water / waste water pressure pipes acc. to EN 805
MESSEN NORD GmbH
Tightness test systems/ Inspection cameras
Test vehicle equipment / Special software
Zum Forsthof 2
D-18198 Stäbelow
ROHRTEST-4 v. 8.8
Tightness test system
acc. to EN 1610, SIA 190 / VSA
Separators, Collectors and Shafts
EN 12566-1, SIA 190 / VSA
for
Tel.:
+ 49 38207 / 656-0
Fax:
+ 49 38207 / 656-66
e-mail:
info@messen-nord.de
Website: www.messen-nord.de

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ROHRTEST-4 and is the answer not in the manual?

Questions and answers

Summary of Contents for MesSen Nord ROHRTEST-4
