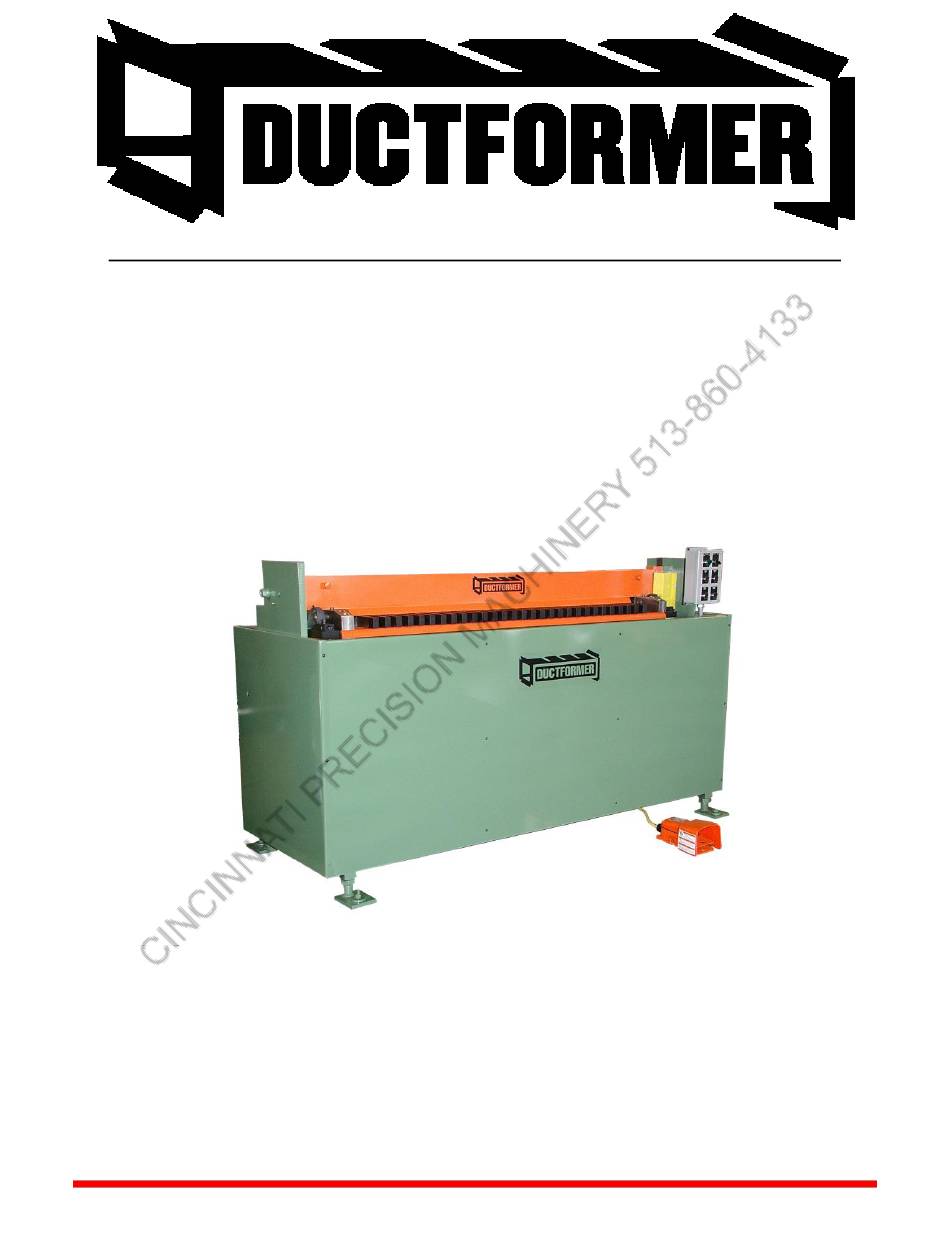

  • Page 1 3991 Green Park Road ● St. Louis, MO 63125 ● Phone – 314.631.1416 Fax – 314.631.3003 OPERATING PROCEDURES MANUAL TDFC POWER BRAKE...
  • Page 2 To reduce the risk of personal injury and to ensure the safe installation and operation of the TDFC Brake, you must carefully read and follow all instructions and safety precautions in this manual.
  • Page 3: Table Of Contents

    OPERATING and PROCEDURES MANUAL TDFC POWER BRAKE If You Have Any Unresolved Questions You May Contact Customer Service at Ductfomer TABLE OF CONTENTS Section Description Page Number General Information System Operation Unloading and Installation Receiving the Machine Unloading Procedure Electrical Procedures...
  • Page 4: General Information

    TDFC POWER BRAKE 1. General Information The TDFC Power Brake is designed to operate in either Automatic or Manual Mode. The Manual Mode is operated from a control box mounted on the front of the machine. A foot operated switch operates the machine in Automatic Mode. A programmable logic controller is mounted inside the electrical enclosure to control the machine operation while in automatic mode.
  • Page 5: Unloading Procedure

    OPERATING and PROCEDURES MANUAL TDFC POWER BRAKE 3.2. Unloading Procedure  When unloading the machine off of the transport vehicle, the machine is best handled by lifting the machine under the frame. Make sure Forks extend through to the other side of the machine.
  • Page 6: General Construction, Factory Settings And Adjustments

     The machine has been adjusted at factory and should not require any changes.  The TDFC Brake is exclusively designed as a one (1) man operation. Failure to follow this precaution can result in serious injury. 6.2. Folder Adjustments ...
  • Page 7: Set-Up Of The Equipment

    OPERATING and PROCEDURES MANUAL TDFC POWER BRAKE 7. Set-up of the Equipment This system does not require any special flooring or grouting. The weight is evenly distributed and there is a minimum amount of impact or shock load involved in the operation.
  • Page 8 OPERATING and PROCEDURES MANUAL TDFC POWER BRAKE Button Description The electrical enclosure has all of the main control selectors and buttons to operate the system. The following is a description of their individual functions. POWER ON/OFF – This selector switch with green light indicates that power is supplied to the machine and ready for operation CYCLE START (FOOT PEDAL): –...
  • Page 9: Understanding The Machine

    OPERATING and PROCEDURES MANUAL TDFC POWER BRAKE MANUAL CLAMP – This push button allows the press to stay down when the press is moved to the lowest position. Press and hold the PRESS DOWN button until the press is run all the way down; then without releasing simultaneously press the MANUAL CLAMP button to hold the clamp press in the clamping position.
  • Page 10: Procedure To Operate

    12. Ordering Replacement Machine PARTS Replacement Machine PARTS may be ordered directly from Ductformer. All of the following information is necessary to ensure the correct replacement PARTS are provided: ...
  • Page 11: Pneumatic Schematic

    OPERATING and PROCEDURES MANUAL TDFC POWER BRAKE Page 11 of 12...
  • Page 12: Electrical Schematic (120 Volt Power)

    OPERATING and PROCEDURES MANUAL TDFC POWER BRAKE Page 12 of 12...
