Summary of Contents for TW Audio VERADLV36

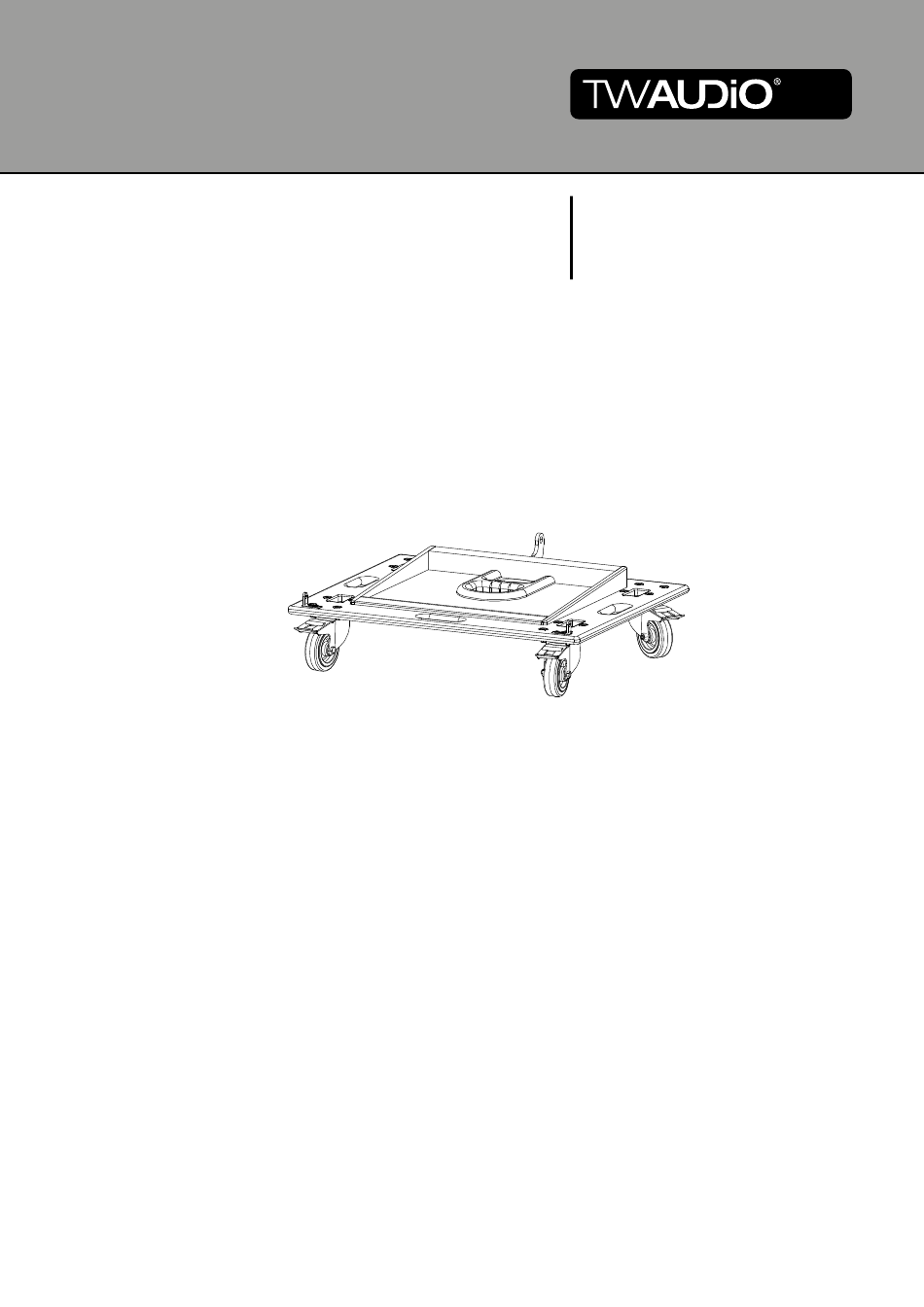

- Page 1 VERA DLV36 Operation manual...
- Page 2 If you lend your product to another party, inform that party of the safety-related operating pro- cedures and hand over this operating manual. If you require additional copies of this manual, you can obtain them free of charge from TW AUDiO or download them from: www.twaudio.de Instructions in this user manual...
- Page 3 Quality warranties or assurance of suitability for a certain type of use based on the technical specifications, dimensions and weights are not granted by TW AUDiO. TW AUDiO also shall not assume liability for any secondary damage (property damage and/or personal injury) nor for the failure to comply with this operating manual! TW AUDiO reserves the right to update this document based on recent developments.
-
Page 4: Table Of Contents
Operation manual VERA DLV36 Content 1. Safety | Intended use ...................... 5 2. Overview ........................7 Components ......................7 3. Technical specifications ....................8 Data sheet ....................... 8 4. Commissioning ....................... 9 Preparation VERA36 loudspeaker ................9 Mounting VERA36 loudspeaker on the VERA DLV36 dolly ........11 Danger of tipping VERA DLV36 dolly with VERA36 loudspeaker ...... -
Page 5: Safety | Intended Use
Note the operating modes described in this operating manual. Other uses are not permis- sible. Damage caused by improper use is not covered by TW AUDiO. Before each use, check the integrity of the VERA DLV36 dolly and ensure that all components are in perfect condition. - Page 6 Operation manual VERA DLV36 When moving the VERA DLV36 dolly, ensure full load-bearing capacity and stability of the substrate. The VERA DLV36 dolly is specified for a load of not more than six VERA36 loudspeakers. This WARNING load capacity must never be exceeded! During movement (assembly or dismantling, transport to the place of use) of the VERA DLV36 dolly with VERA36 loudspeakers, ensure sufficient space to prevent collisions with other objects.
-
Page 7: Overview
Operation manual VERA DLV36 2. Overview Components Figure 2.1 - Overview Transport dolly - Polyurea coated surface Retaining bracket Ergonomic handle Front angle (2 pieces) Recesses for stacking the VERA DLV36 dollys (4 pieces) Handle (4 pieces) Swivel castors with brakes, 100mm (4 pieces) -
Page 8: Technical Specifications
Operation manual VERA DLV36 3. Technical specifications Data sheet Maximum load capacity 6x VERA36 Dimensions (h x w x d) 100 x 700 x 650 mm [3,94 x 27,56 x 25,59 in] Weight 10,5 kg [23,15 lbs] Surface Pulyurea-coated... -
Page 9: Commissioning
Operation manual VERA DLV36 4. Commissioning Preparation VERA36 loudspeaker To prepare the VERA36 loudspeakers for transport on the dolly, proceed as follows: 1. Loosen the two locking pins at the front of four VERA36 loudspeakers. NOTE Figure 4.1.1 - loosen locking pin in front 2. - Page 10 Operation manual VERA DLV36 3. Slide the right slider completely to the right. With one hand, pull the bracket all the way up and with the other hand, slide the left slider completely to the right so that the rear rigging is set to 0 degrees.
-
Page 11: Mounting Vera36 Loudspeaker On The Vera Dlv36 Dolly
Operation manual VERA DLV36 Mounting VERA36 loudspeaker on the VERA DLV36 dolly To load the VERA36 loudspeakers onto the dolly, proceed as follows: 1. Press down the locking levers on the two castors with your foot. This will secure the dolly from rolling away. - Page 12 Operation manual VERA DLV36 6. Now attach the rear locking pin of the VERA36 to the hole in the retaining bracket (see figure 2.1 - pos.2) of the VERA DLV36 dolly. 7. Check that the locking pin is always completely inserted! WARNING Figure 4.2.3 - insert rear locking pin 8.
- Page 13 Operation manual VERA DLV36 12. Now attach the rear locking pin of the second VERA36 to the hole in the bracket of the first VERA36 speaker. 13. Check that the locking pin is always completely inserted! WARNING Figure 4.2.5 - insert rear locking pin...
- Page 14 Operation manual VERA DLV36 14. Follow steps 8 to 11 to mount in front the third and fourth VERA36 loudspeaker in the same manner. 15. Check that all locking pins are always completely inserted! WARNING Figure 4.2.6 - third and fourth VERA36 loudspeaker on VERA DLV36 dolly...
- Page 15 Operation manual VERA DLV36 16. Follow steps 12 and 13 to mount rear the third and fourth VERA36 loudspeaker in the same manner. 17. Check that all locking pins are always completely inserted! WARNING Figure 4.2.7 - third and fourth VERA36 loudspeaker on VERA DLV36 dolly...
- Page 16 Operation manual VERA DLV36 18. At the top VERA36 loudspeaker, slide the left slider to the left to 5 degrees. Hold the bracket with one hand and lower it. Then, with the other hand on the top VERA36 loudspeaker, slide the right slider to the left to 5 degrees so that the rear rigging on this VERA36 loudspe- aker is closed.
-
Page 17: Danger Of Tipping Vera Dlv36 Dolly With Vera36 Loudspeaker
Operation manual VERA DLV36 Danger of tipping VERA DLV36 dolly with VERA36 loudspeaker When moving the VERA DLV36 dolly transport setup with the VERA36 loudspeaker, note that there is a risk of tipping due to the high center of gravity. WARNING Figure 4.2 - Moving VERA36 loudspeaker with VERA DLV36 The VERA DLV36 dolly can be stacked for storage. -
Page 18: Transport And Storage
NOTE This is why the product should be transported and stored in a safe, careful, dry and largely dust-free manner. The following accessories are available from TW AUDiO for the transport dolly: • Cover4V36 (Cover) The original packaging is not suitable as permanent storage and transport packaging. -
Page 19: Ce Declaration Of Conformity
Operation manual VERA DLV36 6. CE Declaration of Conformity Copy and translation of the original CE Conformity Declaration: We hereby declare that the below-referenced components by virtue of their design and con- struction, and in the configuration placed on the market by us, satisfy the safety and health requirements of the applicable EC directives. - Page 20 Operation manual VERA DLV36 TW AUDiO GmbH Osterholzallee 140 71636 Ludwigsburg Germany Phone : + 49 (0) 71 41-48 89 89 0 Fax: + 49 (0) 71 41-48 89 89 99 E-Mail: info@twaudio.de WWW: www.twaudio.de...
