PickData Pick 3G Quick Start Manual

TECHNICAL CHARACTERISTICS

Power circuit
Input voltage
Maximum consumption
Auxiliary output voltage
Auxiliary output voltage maximum power
Environmental conditions
Temperature range
Humidity range
Mechanical characteristics
Enclosure material
Protection grade
Unit dimensions (Width x Height x Length)
Weight
Mounting
Maximum working altitude
Radio connection
Internal antenna
External antenna connector
Modem
SIM
Ethernet
Serial port
External antenna type
Characteristics and electrical security
Security
Electric shock protection
Standards
Standards
PICK 3G

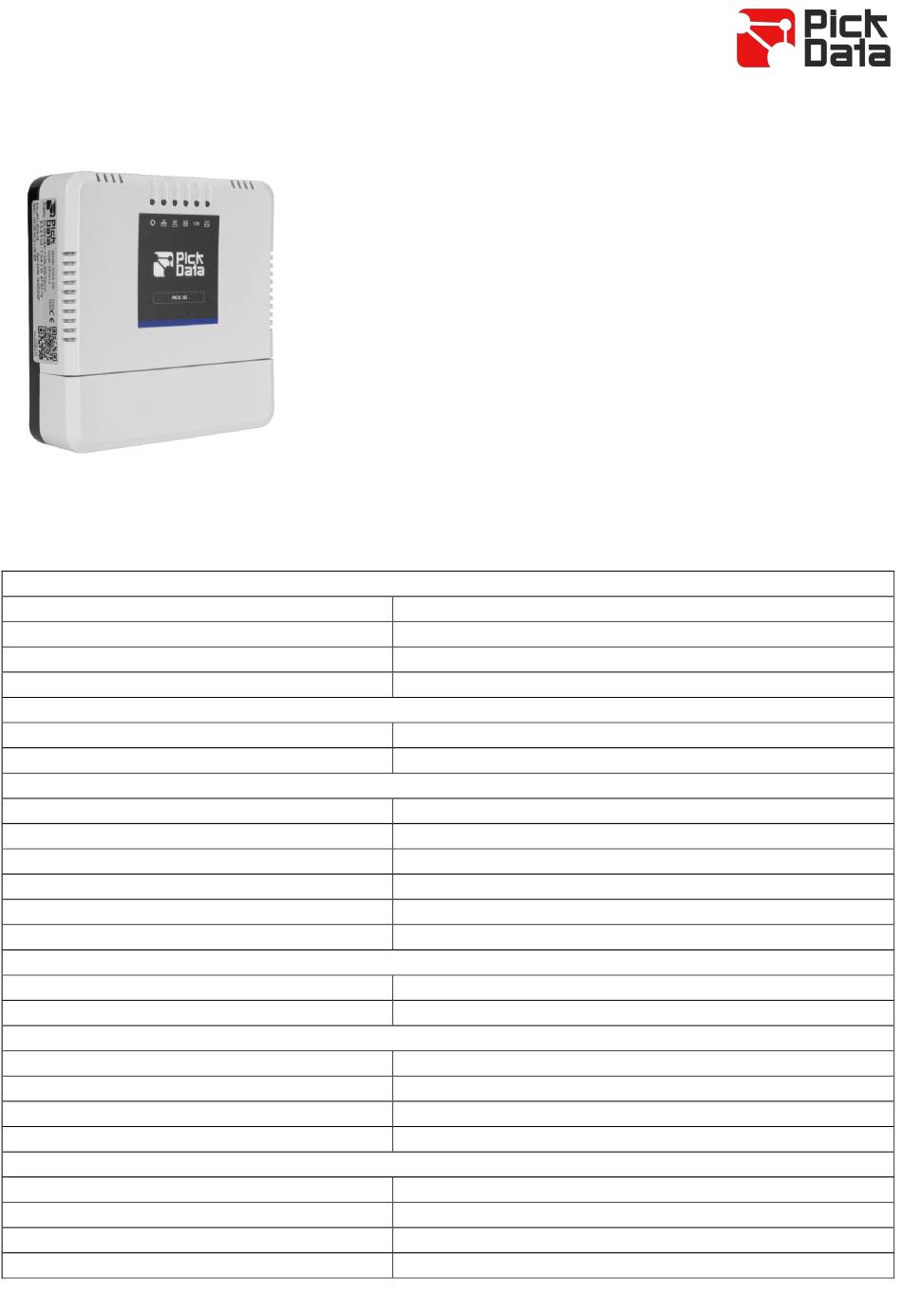

Pick 3G is a gateway designed to communicate with machines and
sensors, collect and store their data and send it to the website for their
treatment.
The gateway's main feature is the communication using 3G, which can
be swapped to GPRS when there's no 3G network coverage.
Pick 3G has an internal and an external antenna with a switch to select
which one is going to be used. The modem adds an Ethernet port, RS-
485, an auxiliary 12 V tension output and a relay output.
Finally, Pick 3G can communicate to EVO platform through 3G/GPRS or
Ethernet.
85 ... 265 Vac / 120 ... 300 Vdc
6.5 ... 9.5 VA / 3.5 ... 4.2 W
12 Vdc
1 W
-10 .... +60ºC
5 .... 95%
Plastic UL94 – V0 Self-extinguishable
IP30
152 x 150 x 44 mm
130 g
Wall mounting / DIN Rail with an accessory
2000 m
Yes
Yes
Not included
1 port 10/100
1 port RS-485
SMA female
CAT III 300 V under EN 61010
Double insulation class II
UNE EN 61010-1:2010, UNE-EN 61000-6-2, UNE-EN 61000-6-4
