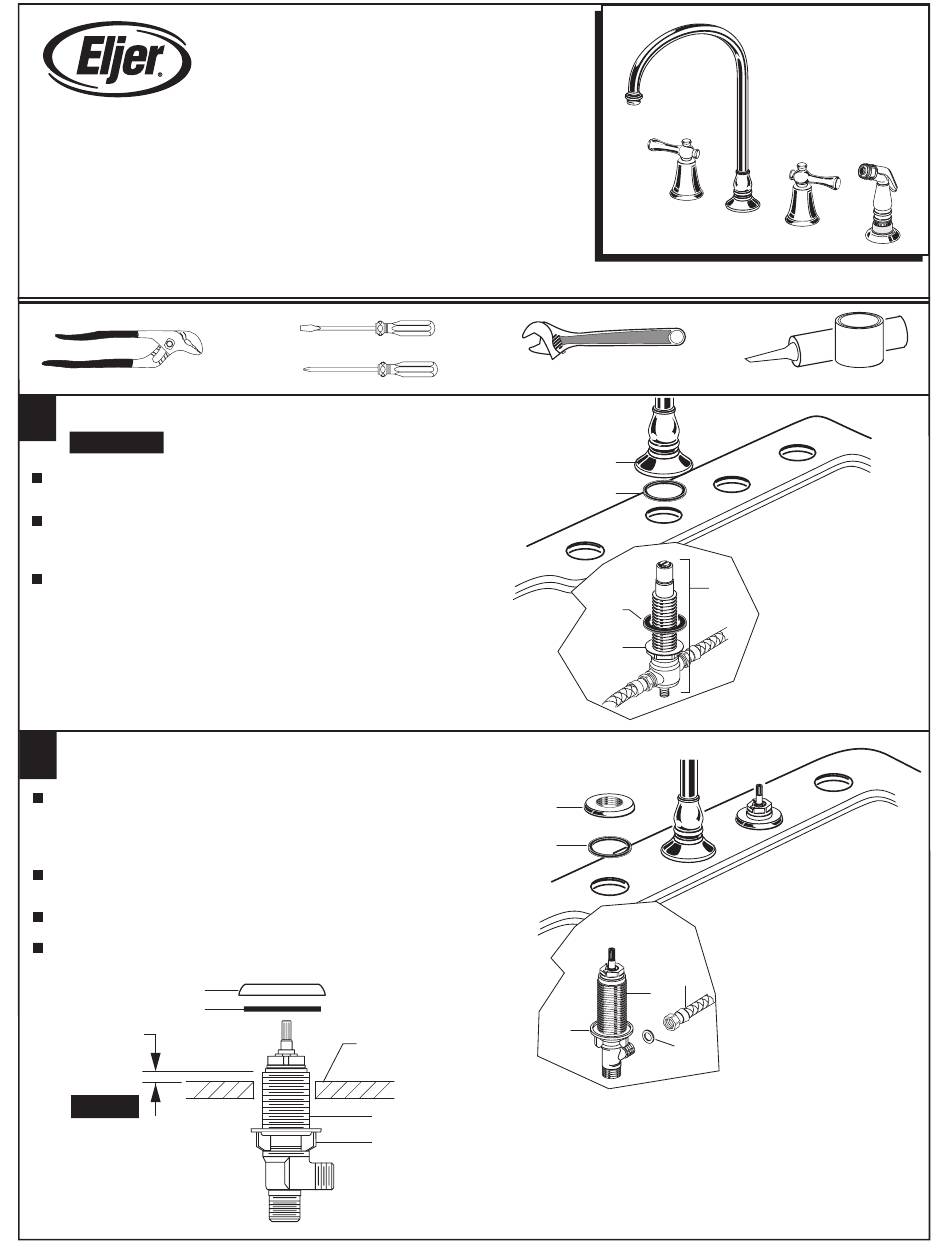

HARTSHORNE™
TWO-HANDLE KITCHEN FAUCET
WITH HI-FLOW SPOUT
To ensure that your installation proceeds smoothly--
please read these instructions carefully before you begin.
RECOMMENDED TOOLS
Channel Locks
1
INSTALL FAUCET
Turn off hot and cold water
CAUTION
supplies before beginning.
Install LOCK NUT (1) and RUBBER WASHER (2) onto SPOUT BODY (3).
Insert SPOUT BODY (1) through hole from underside of SINK.
Place RUBBER RING (4) into SPOUT ESCUTCHEON (5) and screw
ESCUTCHEON (5) onto SPOUT BODY (3) until snug against
internal stop.
From under sink tighten LOCK NUT (1) to secure SPOUT.
2
INSTALL VALVE BODIES
Install LOCK NUT (1) onto VALVE BODIES (2).
Insert VALVE BODY (2) through hole from underside of SINK.
VALVE BODY (2) should extent at least 5/16 of a inch above
mounting surface top. Fig. A.
Place RUBBER RING (3) into ESCUTCHEON (4) and screw
ESCUTCHEON (4) onto VALVE BODY (2) until snug against internal stop.
From under sink tighten LOCK NUT (1) to secure VALVE BODY (2).
Insert SEAL WASHERS (5) into SPOUT BODY SUPPLY HOSES (6) and
tighten connection to VALVE BODIES (2).
4
3
5/16'' MIN.
Fig. A.
Installation
Instructions
9055.050
Flat Blade Screwdriver
Phillips Screwdriver
Threads of
MOUNTING
SURFACE
2
1
Certified to comply with ASME A112.18.1M
Adjustable Wrench
5
4
3
2
1
4
3
6
2
1
5
M 9 6 8 6 0 1 R E V . 1 . 1
Plumbers' Putty or Caulking
Advertisement
Table of Contents
Related Manuals for Eljer HARTSHORNE 9055.050
Summary of Contents for Eljer HARTSHORNE 9055.050
- Page 1 Installation Instructions 9055.050 HARTSHORNE™ TWO-HANDLE KITCHEN FAUCET WITH HI-FLOW SPOUT To ensure that your installation proceeds smoothly-- please read these instructions carefully before you begin. Certified to comply with ASME A112.18.1M M 9 6 8 6 0 1 R E V . 1 . 1 RECOMMENDED TOOLS Flat Blade Screwdriver Adjustable Wrench...
- Page 2 INSTALL HANDLES Push ADAPTER (1) on VALVE STEM (2), so that the hole of the ADAPTER (1) with a spline is facing up. Fig. A. Find correct position of LEVER HANDLE ASSEMBLY (3) by adjusting male teeth on ADAPTER (1) to female teeth in HANDLE (3). Install LEVER HANDLE ASSEMBLY (3) onto Adapter (1).
- Page 3 CONNECT SPRAY HOSE Feed SPRAY HOSE (1) through SPRAY HOLDER (2) and attach COUPLING NUT (3) of HOSE (1) to HOSE ADAPTOR (4) on valve body. Tighten COUPLING NUT (3) firmly. TEST INSTALLED FAUCET Remove AERATOR (1). With HANDLES (2) in OFF position, turn on water supplies and check all connections for leaks.
