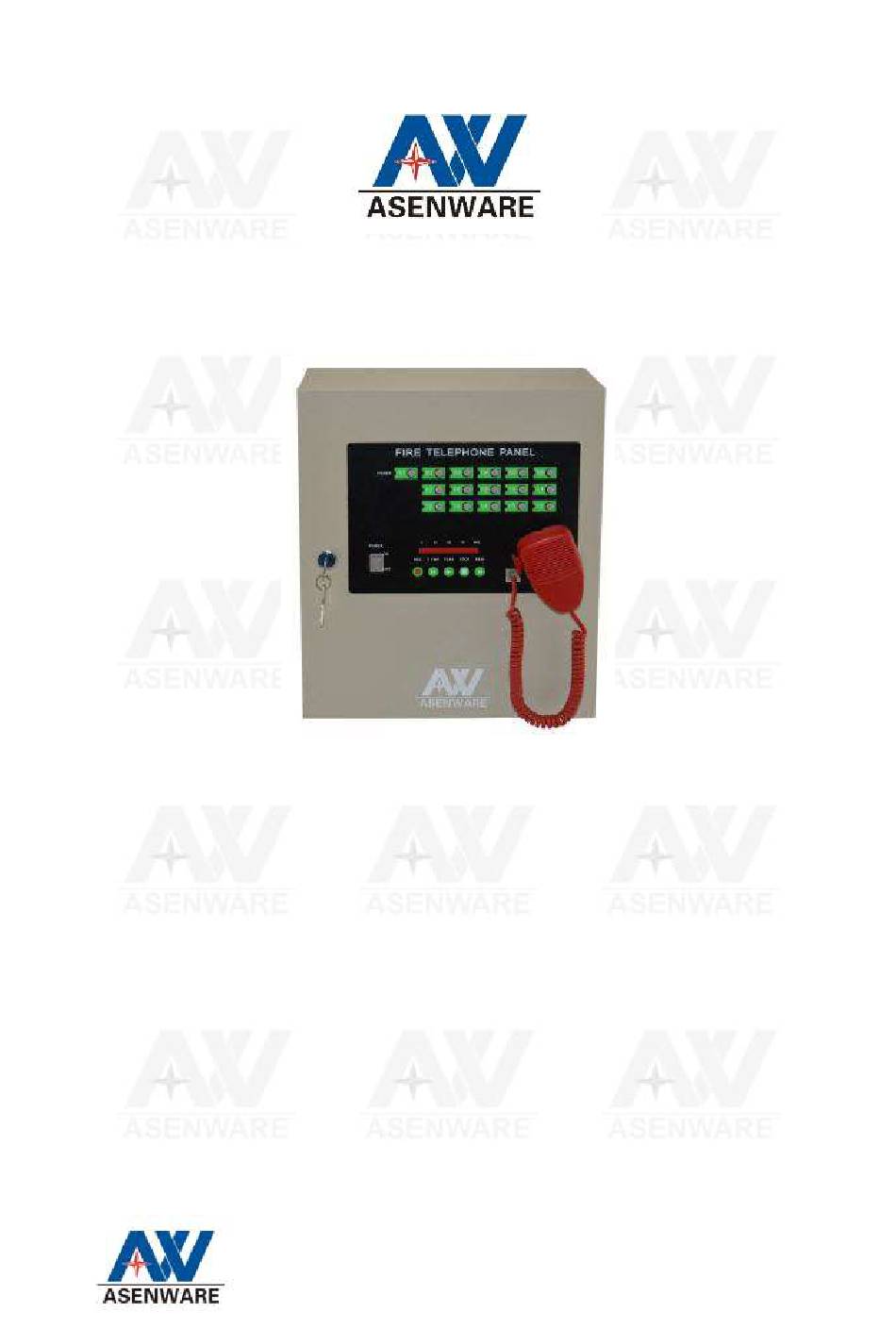

Fire Telephone Panel User Manual
Fire Telephone Panel

1 Overview

1.1 AW-FTP2008/2016 fire call Panel is a new fire dedicated communication device,
when the fire accident, can provide a convenient means of communication, fire
control and alarm system is essential in communications products. Wall-mounted
structure, easy installation, suitable for small systems.
1.2 Switchboard equipment is composed of star fire communications systems. You
need to connect an extension before the composition of the fire alarm
communication system. Extension is a dedicated co-electric fire or telephone
ordinary telephones.
AW-FTP2008/2016
User Manual
1 / 6

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AW-FTP2008 and is the answer not in the manual?

Questions and answers

Summary of Contents for ASENWARE AW-FTP2008

  • Page 1 AW-FTP2008/2016 User Manual 1 Overview 1.1 AW-FTP2008/2016 fire call Panel is a new fire dedicated communication device, when the fire accident, can provide a convenient means of communication, fire control and alarm system is essential in communications products. Wall-mounted structure, easy installation, suitable for small systems.

  • Page 2: Wiring Diagram

    Fire Telephone Panel User Manual 2 / 6 1.3 Hook extension sound and light alarm device. When the extension and switchboard call, the corresponding extension indicator light, sound and light alarm stop. 1.4 Device can simultaneously call multiple extensions. Each extension can be inserted at any time or to exit.

  • Page 3: Installation Instructions

    Fire Telephone Panel User Manual 3 / 6 1. LED power indicator 2. Extension 3. Extension 4. Microphone button 5. The microphone jack 6. Digital recording area 7. Power switch 8. Automatic FIRE key 4 Installation instructions Installation: the machine is removed from the box, first check the appearance of the machine from ministries.
  • Page 4 Fire Telephone Panel User Manual 4 / 6 sound stops. 4.11 Auto FIRE:Required to connect the local telephone line (outside), press the "Auto FIRE" button, you can automatically call the fire outside line FIRE, such as busy, you can press this button again until the call through so far. After switching the operator can hold the microphone and call firefighters.

  • Page 5: Order Information

    7 Order information Product photo Product Information Name : Fire Telephone Panel Model NO.: AW-FTP2008 Characters: 1. Panel Capacity: 8 zones; 2. Operation Voltage: 24VDC± 10%, 220VAC; 3. Environment Temperature: 0~40° C; 4. Relative Humidity: 40%~85%; 5. Dimension: 385mm × 330mm × 120mm;...
  • Page 6 Fire Telephone Panel User Manual 6 / 6 Name : Fire Telephone Mobile Handset Model NO.: AW-FTM2008 Parameter: 1. Mobile hanset compatible with fire telephone jacks; 2. Operating Voltage: AC220V 50HZ OR DC24V; 3. Alarm Current: ≤0.5A; 4. Temperature Range: 0℃~+40℃; 5.
