Swap
V
®
alVe
(molded body materials)

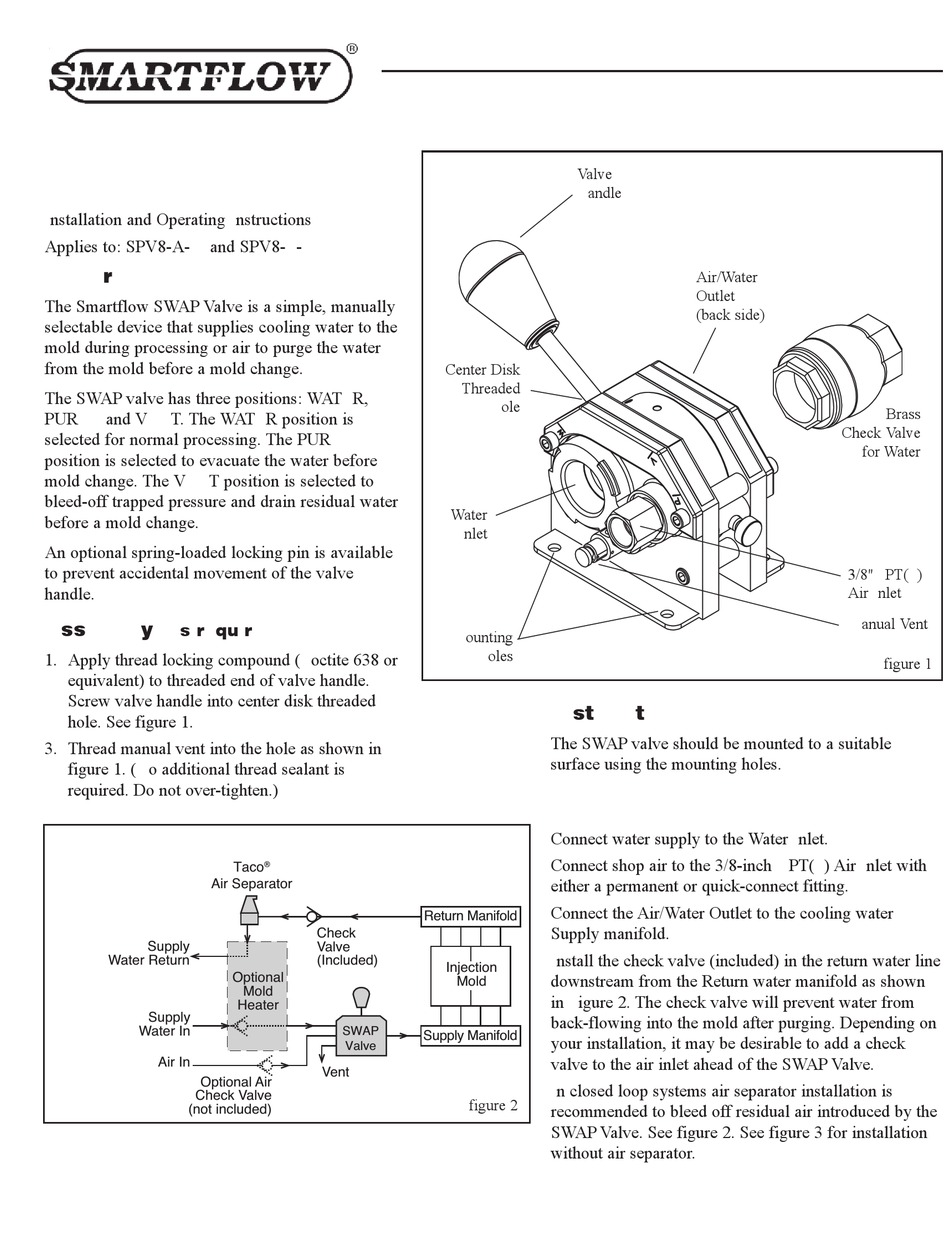

Installation and Operating Instructions
Applies to: SPV8-A-M and SPV8-L-M
General
The Smartflow SWAP Valve is a simple, manually
selectable device that supplies cooling water to the
mold during processing or air to purge the water
from the mold before a mold change.
The SWAP valve has three positions: WATER,
PURGE and VENT. The WATER position is
selected for normal processing. The PURGE
position is selected to evacuate the water before
mold change. The VENT position is selected to
bleed-off trapped pressure and drain residual water
before a mold change.
An optional spring-loaded locking pin is available
to prevent accidental movement of the valve
handle.
Assembly
(as required)
1. Apply thread locking compound (Loctite 638 or
equivalent) to threaded end of valve handle.
Screw valve handle into center disk threaded
hole. See figure 1.
3. Thread manual vent into the hole as shown in
figure 1. (No additional thread sealant is
required. Do not over-tighten.)
Recommended Closed Loop Installation
With Air Separator
Air Separator
Supply
Water Return
Supply
Water In
Air In
Optional Air
Check Valve
(not included)
4500 E 142nd St. • Grandview, Missouri 64030 • Tel. (816) 878-6675 • Fax (816) 878-6683 • www.smartflow-usa.com
Form #191 (05.16)
Taco
®
Check
Valve
(Included)
Optional
Mold
Heater
SWAP
Valve
Vent
Valve
Handle
Center Disk
Threaded
Hole
Water
Inlet
Mounting
Holes
Installation
The SWAP valve should be mounted to a suitable
surface using the mounting holes.
Line mounting to rigid water pipe instead of
bracket mounting is discouraged.
Connect water supply to the Water Inlet.
Connect shop air to the 3/8-inch NPT(F) Air Inlet with
either a permanent or quick-connect fitting.
Connect the Air/Water Outlet to the cooling water
Return Manifold
Supply manifold.
Install the check valve (included) in the return water line
Injection
downstream from the Return water manifold as shown
Mold
in Figure 2. The check valve will prevent water from
back-flowing into the mold after purging. Depending on
Supply Manifold
your installation, it may be desirable to add a check
valve to the air inlet ahead of the SWAP Valve.
In closed loop systems air separator installation is
figure 2
recommended to bleed off residual air introduced by the
SWAP Valve. See figure 2. See figure 3 for installation
without air separator.
Air/Water
Outlet
(back side)
Check Valve
for Water
3/8"NPT(F)
Air Inlet
Manual Vent
Brass
figure 1

Advertisement

loading
Need help?

Need help?

Do you have a question about the Swap SPV8-A-M and is the answer not in the manual?

Questions and answers

Summary of Contents for Smartflow Swap SPV8-A-M

  • Page 1 SWAP Valve. See figure 2. See figure 3 for installation without air separator. 4500 E 142nd St. • Grandview, Missouri 64030 • Tel. (816) 878-6675 • Fax (816) 878-6683 • www.smartflow-usa.com Form #191 (05.16)
  • Page 2 Alternate Closed Loop Installation Without Air Separator Quick-Disconnect Mold Heater Bypass and Ball Valve Temporary Hose Quick-Disconnect and Ball Valve Return Manifold Check Supply Valve Water Return (Included) Injection Optional Mold Mold Heater Supply Water In SWAP™ Supply Manifold Valve Air In Vent Optional Air...
  • Page 3 A drain tube can be connected to the Manual Vent-Drain and run to a suitable drain. Using a Smartflow Mold Temperature Regulator (MTR) 1. Stop the press.
  • Page 4: Troubleshooting

    Troubleshooting Symptom Corrective Action Air or water does not flow through the system • Verify check valve direction • Check that the valve handle is in the correct position Water leaks from the valve while in operation • Replace O-Rings (Contact factory for repair or field replacement procedure) Mold does not evacuate completely...
