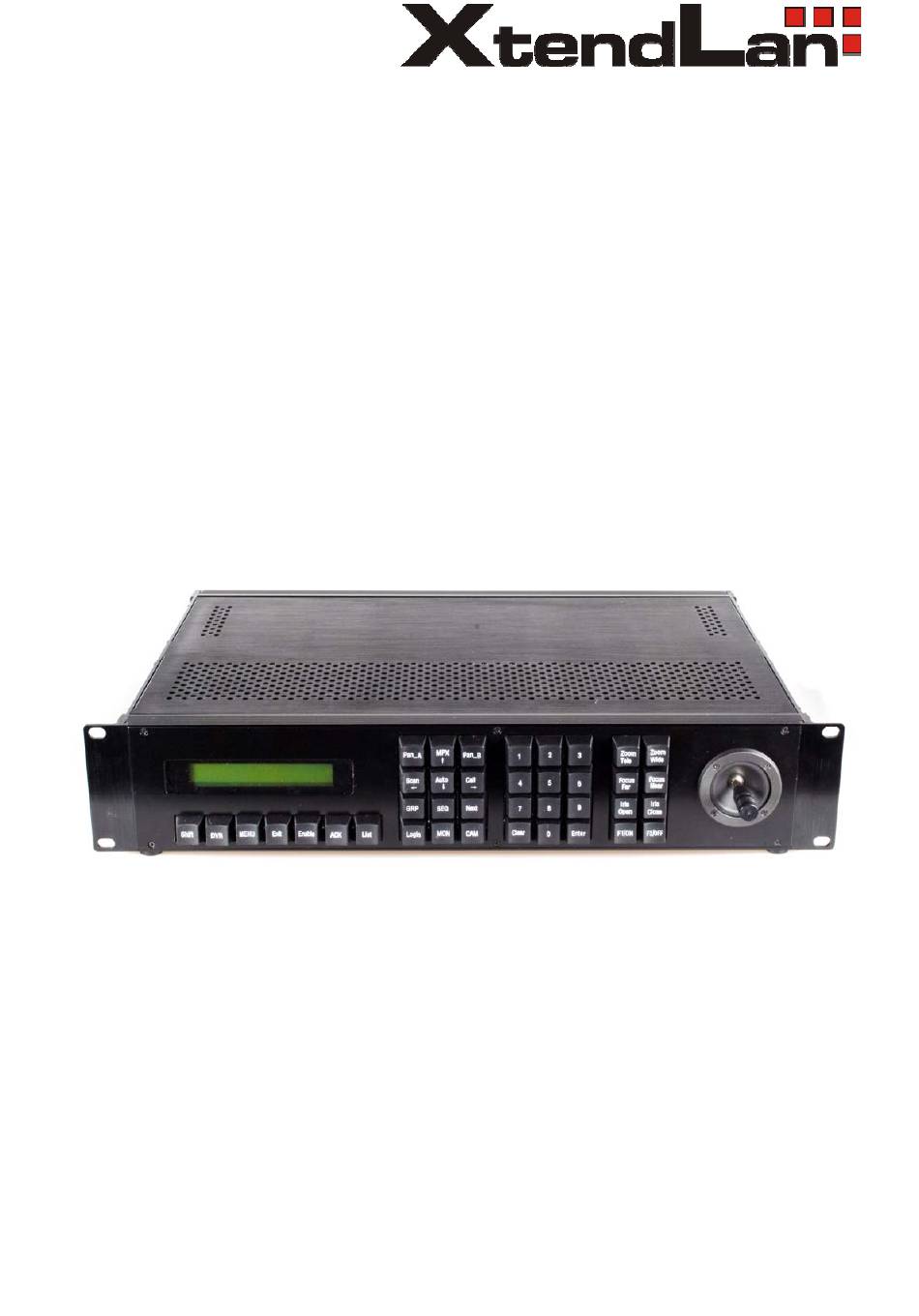

- Page 1 MATRIX1608A Video Matrix Switcher User’s Guide...
-
Page 2: Table Of Contents
Matrix1608A User's guide www.xtendlan.com Contents 1 Safety Attention Notes .......................... 4 2 Features .............................. 5 3 Connection ............................ 5 3.1 Video/Audio Output connect .........................5 3.2 Video/Audio Input connect ........................5 3.3 Communication connect ........................5 3.3.1 RS485 Communication(Dome) .......................6 3.3.2 RS232 Communication ........................7 3.4 Alarm out connect ..........................7 3.5 Video matrix connect audio matrix ......................7 4 System setting ............................ 8 4.1 Setting protocol ............................8 4.2 ... - Page 3 Matrix1608A User's guide www.xtendlan.com 7.1.2 Keyboard Baud Rate Set ...................... 13 7.1.3 Key‐press Sound Set ........................ 14 7.1.4 Matching Resistance (150Ω) Set .................... 14 7.1.5 Keyboard Protocol Set ......................... 14 7.1.6 Keyboard Test .......................... 14 7.1.7 Max Vice Control Number Set .................... 15 7.1.8 Max Alarm Set .......................... 15 8 Intelligent Keyboard Operation ...................... 1 5 8.1 Keyboard Communication Address Set .................... 15 8.2 Keyboard Control for Dome Camera .................... 15 8.3 Auto Scanning (2 Points Scanning,360°Scanning) ................ 16 8.4 Set Preset Position .......................... 16 8.5 View Preset Position .......................... 17 ...
-
Page 4: Safety Attention Notes
Matrix1608A User's guide www.xtendlan.com 1 Safety Attention Notes ◎ Please read the instructions thoroughly before installing or operating the unit. ◎ Please do not put the machine on an unstable table or mounting bracket. ◎ Please prevent all liquids or other contaminating material from entering into the matrix housing. -
Page 5: Features
Matrix1608A User's guide www.xtendlan.com 2 Features • Camera title input through PC, Built-in IP Port • Adopt built-in IP Control Mode and Video server, the operation of mainframe and video switch are controled via IP; Support IE • Plug-in scalable high density architecture for easy expansion, 2U Standard aluminium alloy case •... -
Page 6: Rs485 Communication(Dome)
Matrix1608A User's guide www.xtendlan.com connecting wire are diagramed below for reference RS485A Connect Keyboard or Alarmer RS485B RS485A RS485B RS485A RS485B AUX1 AUX2 Keyboard connecting wire are diagramed below for reference。 AC220V AUX1 AUX2 POWER IN RS232 RS232Communication Video/Audio Video/Audio... -
Page 7: Rs232 Communication
Matrix1608A User's guide www.xtendlan.com 3.3.2 RS232 Communication RS232 connect PC,Alarm equipment etc. Note：When keyboard controler control matrix system，RS232 Port must be taken out 。 3.4 Alarm out connect connecting wire are diagramed below for reference RS485A RS485B RS485A RS485B... -
Page 8: System Setting
Matrix1608A User's guide www.xtendlan.com 4 System setting 4.1 Setting protocol Set protocol and baud rate,matrix switcher control dome （Default setting is PELCO_D protocol,Baud rate 2400Bit/s）the communication protocol, baud rate, should be confirmed. Set the code switch, keeping the setting consistent with the dome system. The relative code switch site and connecting wire are diagramed below for reference. -
Page 9: Keyboard Id No Set
Matrix1608A User's guide www.xtendlan.com Press “EXIT” key to exit to the main Menu. 4.2.1 Keyboard ID No Set Press”Enter” key on keyboard screen “Keyboard setup” until LCD displays: Current keyboard ID No. 1.Cur.Keyboard ID:XX 0=Mast,1→16=Slave:XX Input New ID No. Input the number 0(must be zero), press “Enter” key for confirmation. New ID will be in effect immediately. -
Page 10: Keyboard Test
Matrix1608A User's guide www.xtendlan.com 4.2.6 Keyboard Test Press “MPX” or “Auto” key until LCD displays: 6.Keyboard test Press “Enter” key for confirmation, a blank screen will appear. Press any key except the <EXIT> key, the relative name will display on the screen. -
Page 11: System Keyboard
Matrix1608A User's guide www.xtendlan.com 5 System keyboard 5.1 Keyboard Overview The keyboard is used for controlling the intelligent dome. The keyboard is the main device between operator and device in the monitoring system. It can be regarded as the main control keyboard and as the vice control keyboard. -
Page 12: Camera Lens Control
Matrix1608A User's guide www.xtendlan.com Function Key Joystick: Control Dome Camera running: Up, down, Left, Right, Left-up, Left-down, Right-up, right-down, camera lens zoom in and zoom out Keyboard joystick can’t control Dome Camera lens zoom in and zoom out. Dome Camera Selection and Auto scanning Control... -
Page 13: Keyboard Parameters Setting
Matrix1608A User's guide www.xtendlan.com 7 Keyboard Parameters Setting △ ! The keyboard intelligent keyboard baud rate and communication protocol should Be consistent with that of the dome camera. 7.1 Keyboard Parameters Set Press “SHIFT+EXIT” key enter Keyboard main Menu Then Press “MPX” or “Auto” key until LCD displays: 2)Keyboard setup Press “Enter”... -
Page 14: Key-Press Sound Set
Matrix1608A User's guide www.xtendlan.com 7.1.3 Key-press Sound Set Press “MPX” or “Auto” key until LCD displays: 3.Current sound: ON Displays current set Your select: Select Sound preference Press < SHIFT+MON > key showing “ON”; turns on the sound function. Press “Enter” key for confirmation. -
Page 15: Max Alarm Set
Matrix1608A User's guide www.xtendlan.com 7.1.7 Max Vice Control Number Set Press “MPX” or “Auto” key until LCD displays: 7.MAX(16) SLAVE ID:XX Default Setting Input new ID:XX Input number(00-16), Press “ Enter” key for confirmation. △ ! If the keyboard is set as:01,02…16,it will be considered as the totalVice control keyboard quantity separately. -
Page 16: Auto Scanning (2 Points Scanning,360°Scanning)
Matrix1608A User's guide www.xtendlan.com △ ! When the “DATA” column does not show “0”,the “DATA” column displays the Address of the dome camera.When the “DATA” column shows “0”, the “CAM” column displays the address Of the dome camera. (Take “Vinet” protocol for example to operate Dome Camera) 8.3 Auto Scanning (2 Points Scanning,360°Scanning) -
Page 17: View Preset Position
Matrix1608A User's guide www.xtendlan.com 3. Adjust the camera to the desired position including location, camera zoom, focus and iris. 4. Press “Shift + Call” key for final confirmation. Dwelling time: Can set dwelling time at one preset position: 1S,2S ……. 60S 360°scanning: 360°scanning at one preset position. -
Page 18: Pattern Tours Set
Matrix1608A User's guide www.xtendlan.com 2. Enter the correct Speed Dome Unit and Press “Enter” key. Example: Preset Position for Speed Dome 3. The Keyboard displays: 1)speed dome Setup Displays the Speed Dome Number:0003 Address (1-1024) 3. Now the Keyboard displays:... - Page 19 Matrix1608A User's guide www.xtendlan.com 1)speed dome Setup Displays Speed Dome Number:0002 Address (1-1024) 3. Press “MPX” or “Auto” key, until the keyboard displays: 3)Add pre-position Displays the Group Group Number:0 Number (1-8) 4. Input a Group number using the number keys, press “Enter” key, the keyboard displays: 5.
-
Page 20: Guard Location Set
Matrix1608A User's guide www.xtendlan.com Select: Add the preset position to cruise Press “Enter” key for confirmation after adding a preset position. Press “SHIFT+CAM” key exit when setting is finished. Please set the preset position parameter before setting its pattern tours. If not setting dome preset position, Dome Camera will operate default preset position parameter when it runs its pattern tours. -
Page 21: Intelligent Keyboard Menu Set For
Matrix1608A User's guide www.xtendlan.com The position is set as the guard location. 8.9 Intelligent Keyboard Menu Set for Press “MPX” or “Auto” key, until keyboard will display: Press“MPX” or “Auto” key 5)dome MENU Press enter to Menu 5 Dome Menu Data:0000: Data:0000 →... -
Page 22: Auxiliary Switch 2 Set
Matrix1608A User's guide www.xtendlan.com Number:0001 OFF→Set “Auxiliary Switch 1” open by pressing down “SHIFT+MON”key, Set “Auxiliary Switch 1” close by pressing down “SHIFT+CAM”key. This Function is used for the frontal terminal device with the wash brush function only. .The fan and heater in the speed dome camera is always under auto temperature control status. This function will auto start when the temperature reaches higher point or lower point. -
Page 23: 10 Exception Handles
Matrix1608A User's guide www.xtendlan.com 10 Exception Handles Exception Possible reason Relative solution phenomena No display on the 1.Power supply is not 1.Check connection of power screen when the power connected properly line 2. Watt is not enough 2.See if power supply is... - Page 24 Matrix1608A User's guide www.xtendlan.com 12 Specifications Video output: 8 channels Video input : 16 channels Video Input signal: 1Vp-p(75Ω) Video output signal: 1Vp-p(75Ω) Audio Input signal: 0.5Vp-p~5Vp-p(600Ω) Audio output signal: Input follow Video S/N: >70.5dB Audio S/N: >58dB The video input isolates: >55dB The video output isolates: >50dB...
