Summary of Contents for RackSolutions 1USHL-139

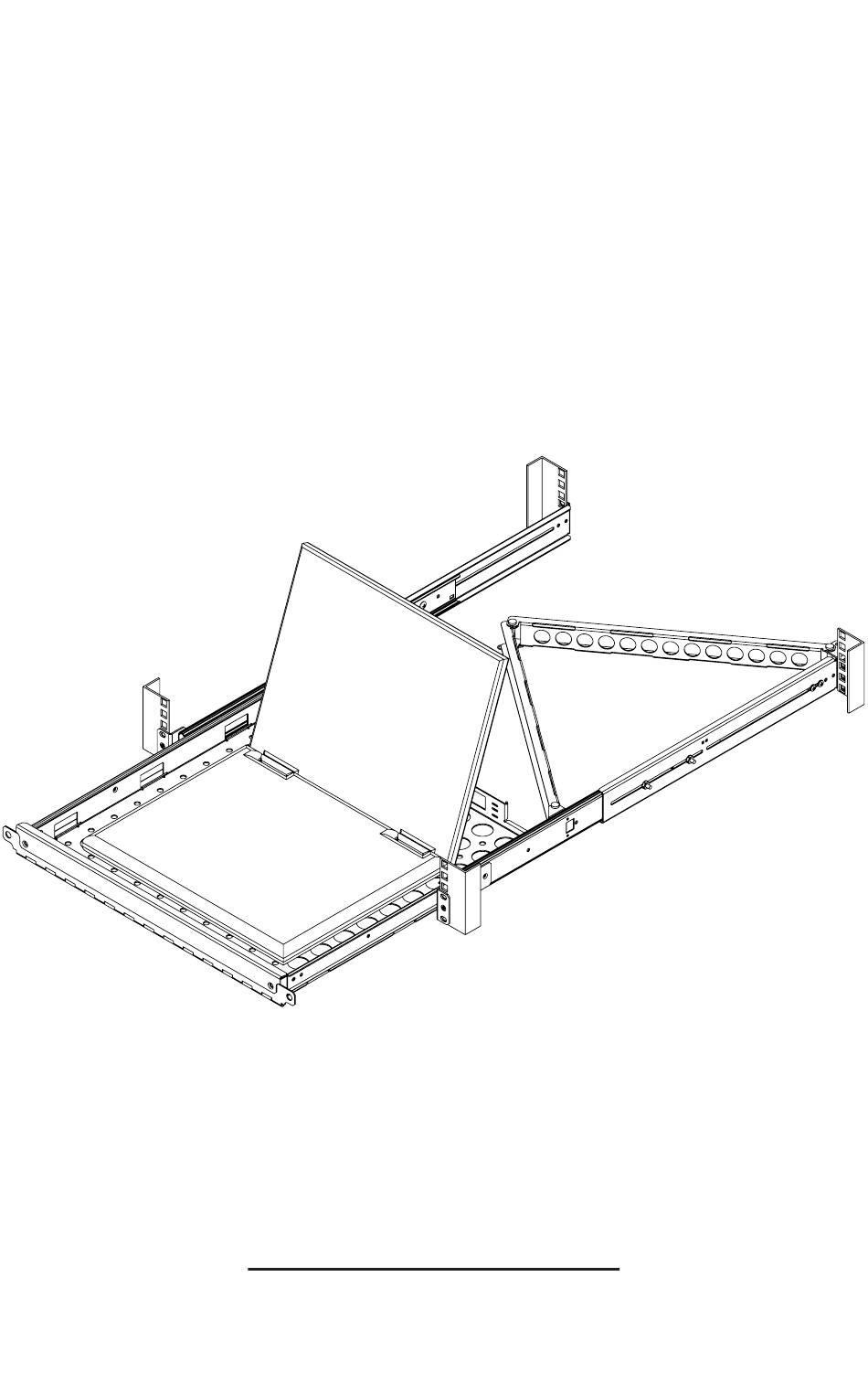

- Page 1 Patent(s) Pending Universal Laptop Shelf Installation Instructions Kit P/N: 1USHL-139...
- Page 2 Kit Contents Rack Mount Hardware (1) Partially Assembled Shelf w/Door (9) 12-24 Square Nut (2) Rear Brackets (9) 10-32 Pan Head Screws (2) Cable management Arms (9) 12-24 Pan Head Screws (16) Tie Straps (9) 12-24 Cage Nuts "Black" Rear Bracket Hardware: Cable Arm Hardware (7) 8-32 x 3/8"...
- Page 3 Step 4 Rear Bracket Attachment: Move the slide rails out approximately 8". You may need to loosen the thumb screws to do this. Attach the "Rear Rack Brackets" as shown below. Attach using (4) 8-32 x 3/8" panhead screws and(4) 8-32 Nuts. The screws should be located in the slots as far apart from one another as possible (see below).
- Page 4 Cable Management Instructions Step 6 Cable Management: "Front CMA Bracket" comes preinstalled on right side of the shelf. To move it to the left side pull the shelf all the way out of the rails, remove the hardware that holds the bracket in place and switch it to the other side. Install the "Rear CMA Bracket"...
