Summary of Contents for RUWI AT 300
-

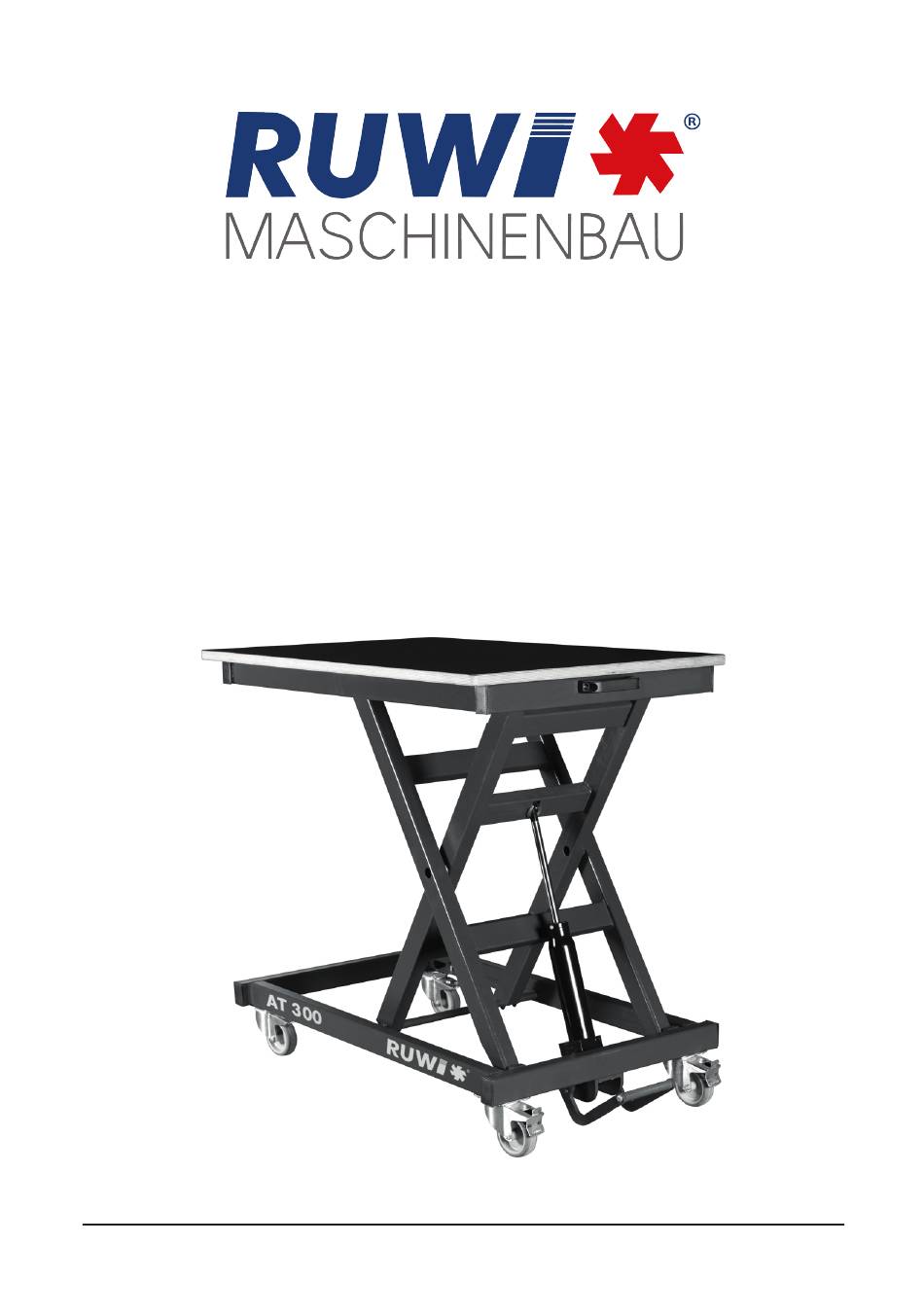

Page 1: User Manual
User Manual Translation Height adjustable RUWI working table AT 300 Keep this manual handy and in good condition for continual reference! Dok.ID: 420240-904_01 Englisch 2017-07-03... - Page 2 Height adjustable RUWI working table AT 300 RUWI GmbH Alte Kirchstr.1 / 78737 Fluorn-Winzeln Tel.: 0049 / 74 02 - 8414 info@ruwi.de / www.ruwi.de TYPE : AT 300 NR.: - - - - - - - - - - - - - - - Baujahr / year of construction / ANNEE DE CONSTR.:...
-
Page 3: Table Of Contents
Height adjustable RUWI working table AT 300 Table of contents Table of contents 1 General ......................4 1.1 Legend ........................4 1.2 Information about the manual ..................4 1.3 Copyright ........................4 1.4 Liability and warranty ....................5 1.5 Warranty notice ......................5 1.6 Spare parts ........................5 1.7 Disposal ........................5... -
Page 4: General
Height adjustable RUWI working table AT 300 General 1 General Legend Important technical safety instructions in this manual are followed. Special attention must be paid in all these par- marked with symbols. ticular cases, in order to avoid accidents, personal injury These instructions for work safety must be observed and or material damage. -
Page 5: Liability And Warranty
Height adjustable RUWI working table AT 300 General Liability and warranty The contents and instructions in this manual were scale. The product that has been delivered, may have compiled in consideration of current regulations and custom-built specifications, add-on options or recent... -
Page 6: Safety
Height adjustable RUWI working table AT 300 Safety 2 Safety At the time of its development and production, the machi- the machine. ne was built in accordance with prevailing technological To further minimise risks, the other chapters of this ma-... -
Page 7: Responsibilities Of The Operator
Height adjustable RUWI working table AT 300 Safety Responsibilities of the operator This manual must be kept in the immediate vicinity of tions as well as current environmental stipulations that the machine and be accessible at all times to all persons apply to the operational range of the machine. -
Page 8: Personal Protective Equipment
Height adjustable RUWI working table AT 300 Safety Personal protective equipment When working on or with the machine, the following must be strictly observed: People with long hair who are not wearing a hairnet are not permitted to work on or with the machine! -
Page 9: Technical Specifications
Height adjustable RUWI working table AT 300 Technical specifications 3 Technical specifications Dimensions and weight Img. 1: Dimensions AT 300 Machine AT 300 Base dimensions AxB (max.) 1290 x 780 mm Worktop surface C x D 1200 x 800 mm Total height E (upper position) approx. -
Page 10: Transport, Packaging And Storage
Height adjustable RUWI working table AT 300 Transport, packaging and storage 4 Transport, packaging and storage Safety instructions Attention! Risk of material damage! The machine can be damaged or destroyed if it is subjected to improper handling during transport. Warning! Risk of injury! There is a risk of injury as a result of falling parts while transporting, loading or unloading the machine. -
Page 11: Storage
Height adjustable RUWI working table AT 300 Transport, packaging and storage Storage Keep items sealed in their packaging until they are assembled/installed and be sure to observe the stacking and sto- rage symbols on the outside of the packaging. Store packed items only under the following conditions •... -
Page 12: Setup And Installation
Height adjustable RUWI working table AT 300 Setup and installation 5 Setup and installation Safety instructions Warning! Risk of injury! Improper assembly and installation can lead to serious physical injury or equipment damage. For this reason, this work may only be carried out by authorised, trained personnel who are familiar with how to operate the machine and in strict observance of all safety instructions. -
Page 13: Operation
Height adjustable RUWI working table AT 300 Operation 6 Operation Attention! Risk of material damage! Danger of tipping Only process work pieces that can be securely positioned. Max. load capacity 300 kg Authorised and prohibited work techniques Authorised working techniques •... -
Page 14: Maintenance / Cleaning The Machine
Height adjustable RUWI working table AT 300 Maintenance 7 Maintenance / Cleaning the machine Note: Generally there is no lubrication necessary, because the ball bearings are free of maintenance. The guiding systems are completely maintenance free and do not require the addition of lubricants. -
Page 15: Appendix - Declaration Of Conformity
Height adjustable RUWI working table AT 300 Annex 8 Appendix - Declaration of Conformity EC certificate of conformity in accordance with machine guidelines 2006/42/EG We hereby declare that the machine indicated below, which corresponds to the design and construction of the model we placed on the market, conforms with the health and safety requirements as stated by the EC. - Page 16 RUWI GmbH Alte Kirchstr.1 78737 Fluorn-Winzeln Tel.: 0049 / 74 02 - 8414 Fax: 0049 / 74 02 - 904215 E-mail: info@ruwi.de Internet: www.ruwi.de...
