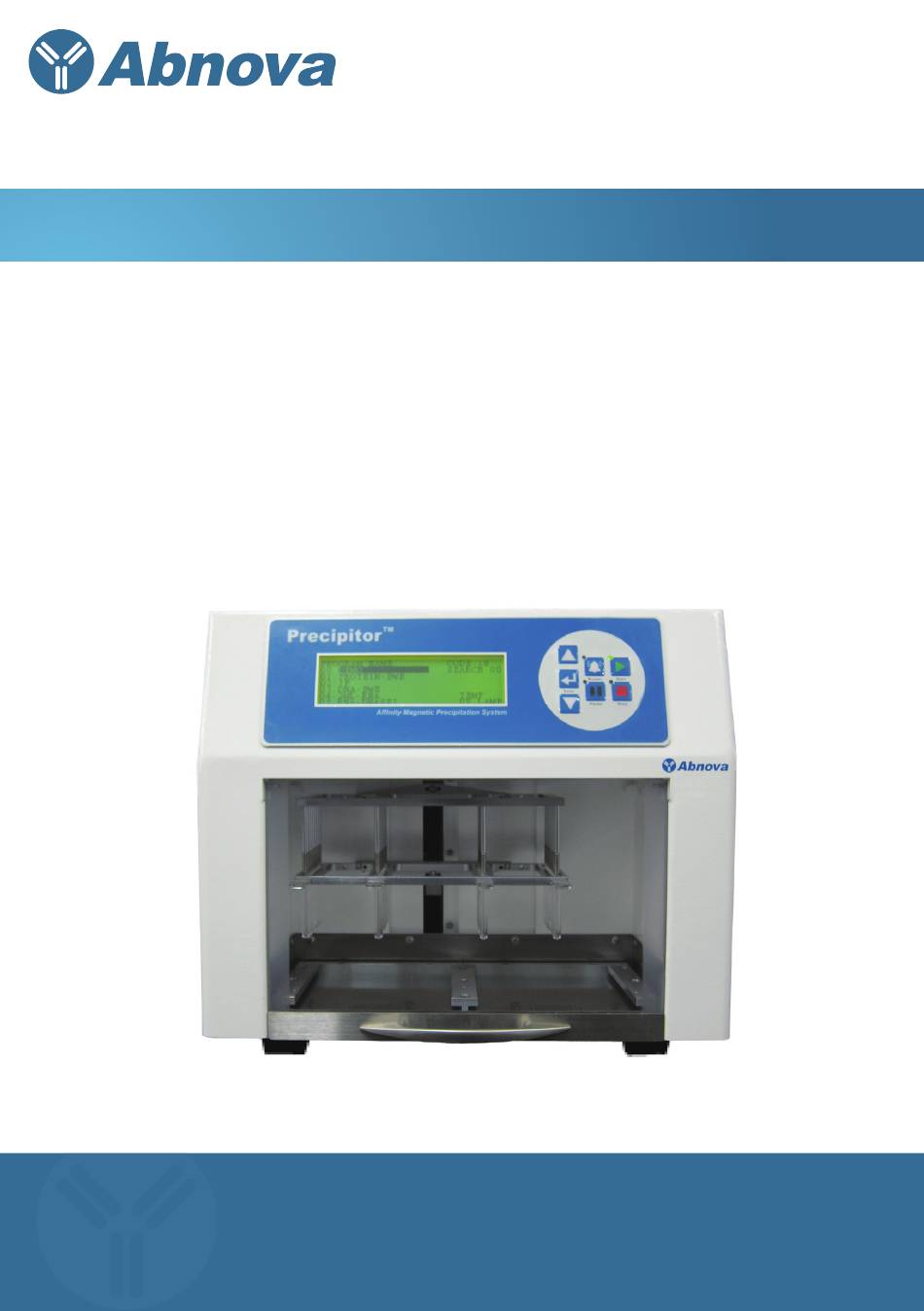

  • Page 1 USER MANUAL ® Precipitor 32 Affinity Magnetic Precipitation System...

  • Page 2: Table Of Contents

    Table of Contents Check list Safety Items Chapter 1 Introduction of Precipitor Chapter 2 Introduction of LCD Chapter 3 The picture of wiring at the back of controller Chapter 4 I/O Chart Chapter 5 Troubleshooting guide Chapter 6 Specification Chapter 7 Program import/export Chapter 8 AutoMag software...

  • Page 3: Check List

    ● User manual ● Quality control checklist Accessories ● USB to serial converter driver disc ● USB to RS-232 transmission line ● RS-232 to USB connection line ● Magnetic base Consumables ● 4X 96 deep well plates ● 8X 8-channel strips www.abnova.com...

  • Page 4: Safety Items

    ® Precipitor 32 Safety Items Caution! Notice these tips below for avoiding electric shock or fire accidents. 1. Do not touch any plugs and electric switches with wet hands. 2. Turn off and unplug the machine before moving it. 3. Fasten robot before moving and delivering the machine.

  • Page 5: Chapter 1 Introduction Of Precipitor

    There is a light on the heating switch and it will be lit up as the heating is functioning. Meanwhile, the temperature of stainless steel board will raise and please keep clear of the machine. www.abnova.com...
  • Page 6 ® Precipitor 32 Appearance of the Machine Front view Back view Control Panel Switches and Electrical Inlet (voltage: 100~240V, fuse: 5A/250V) (A) Heating switch (B) Main power switch (C) USB port (D) Electrical inlet Internal view (A) Magnetic rod frame...
  • Page 7 : 1. Press the button to select the previous program or a number. 2. From : Confirm the program or the number you select. Move down: Press the button to select the next program or a number. www.abnova.com...

  • Page 8: Chapter 2 Introduction Of Lcd

    ® Precipitor 32 Introduction of LCD I. Time Setting Turn on the machine after pressing the button . After 3 seconds, the screen will automatically show time setting as below. Time Setting Screen: Press the buttons to select the key-in position. Then, press the button to confirm it.
  • Page 9 “Perform UV Lamp Screen”. IV. Perform Temp Screen PRESENT : Real working temperature. (℃) PRESET : Set temperature of bottom stainless plate, RT~65. (℃) PROGRAM : Return to the “Select Program Screen” after turning off Heater. www.abnova.com...
  • Page 10 ® Precipitor 32 Introduction of TEMP 1. Press the button to select key-in position and return to “Select Program Screen”. Then press the button to confirm it. 2. PRESET setting: Press the button to change the digits from RT to 70, then press the button to confirm it.
  • Page 11 TEMP ALM : It can not be reached preset temperature in a reasonable period. (30min) : (1) If it shows LIMIT or SENSOR, it means the machine is out of order. And buzzer will keep on ringing. Press the button to stop the buzzer. Turn www.abnova.com...
  • Page 12 ® Precipitor 32 the power system off, and notify our service center to deal with problem. (2) If it shows TEMP MAX or TEMP ALM, it means heating system is out of order. And buzzer will keep on ringing. Press the button to stop the buzzer.
  • Page 13 : Confirm two things below before you start the program. (1) Did you put 96-deep well plate toward outside by bevel and push it to the bottom of plate rack? (2) Did you put 8-channel strip to the bottom of strip rack? www.abnova.com...
  • Page 14 ® Precipitor 32 1. If you press the button in the process of executing program, the execution will be paused immediately. The robot will stop working and move back to the top. Meanwhile, other buttons will be unworkable. : In step, the robot can not be stopped immediately.

  • Page 15: Chapter 3 The Picture Of Wiring At The

    P2 : 26PIN outlet connecting to UV lamp, heater and cooler. : tune the contrast of LCD I/O Chart Input 6 points Output 4 points X-axis zero sensor UV lamp Strip zero sensor Buzzer Rod zero sensor Cool Safety door sensor Heat Reserve Reserve www.abnova.com...

  • Page 16: Chapter 5 Troubleshooting Guide

    ® Precipitor 32 Troubleshooting guide Suggestions Problems Did you turn on the power system already? It displays nothing on the screen. Did the plug connect with the power system? Measure the voltage of outlet. Check the strip to see if it has been pushed Noises from the machine.

  • Page 17: Chapter 6 Specification

    Specification Product Name Preciptor® 32 Width(cm) Height(cm) Length(cm) Weight(Kg) Power (V) 100-240 Current (A) max. 2 Operating temperature (℃ ) RT-65 Humidity Range (%) <80 Processing Volume (μl) 100-1000 per well www.abnova.com...

  • Page 18: Chapter 7 Program Import/Export

    ® Precipitor 32 Progarm import / export 1.1 AutoMag.rar file 1.2 USB to serial converter driver disc 1.3 USB to RS-232 transmission line 1.4 RS-232 to USB connection line 2.1 Copy AutoMag.rar to your computer and extract it. 2.2 If you don’t have any software for extraction, please contact your dealer to obtain AutoMag file.

  • Page 19: Chapter 8 Automag Software

    AutoMag software key in your user name and password (6 digits at the most) change your password confirm your password Protocol Edit window: www.abnova.com...
  • Page 20 ® Precipitor 32 : New- open a new file Open- open an old file Save- Save a file End- close the file : Cut Copy Paste Move up Move down Insert Delete Choose a COM port. There 16 COM ports.
  • Page 21 3.6 Paste After the actions mentioned above, move to the position that you are going to paste. Click to paste a whole row of data on the right position. 3.7 Move up Move up a whole row of data. www.abnova.com...
  • Page 22 ® Precipitor 32 3.8 Move down Move down a whole row of data. 3.9 Insert Insert a row of blank space. 3.10 Delete You could delete a whole row of data when you select a certain row. However, if you highlight a certain cell, all you could delete is the data in the field length.
  • Page 23 ” and “ ”. Use drop-down list to select the mixing speed. : the volume of solution in well Input numeral from 0 to 1000. The unit is μl. The working range of strip will is accord to the volume high. www.abnova.com...
  • Page 24 ® Precipitor 32 : It is recommended to use solution volume no more than 1000μl. It may cause cross contaminations over the volume of 1000μl. And the suggested minimum volume is 100ul. If lower volume is required, please do NOT go lower than 60ul per well.
  • Page 25 Click “ ” to transmit one program from a machine to a computer according to your key in number of the program. Manufacturer Abnova Corporation 9th Fl., No.108, Jhouzih St., Neihu District, 11493 Taipei, Taiwan, ROC Tel: +886-2-8751-1888 Fax: +886-2-6602-1218 e-mail: sales@abnova.com...
  • Page 26 Abnova Corporation 9F, No. 108, Jhouzih St., Neihu, Taipei 114, Taiwan Tel: + 886 2 8751 1888 Fax: + 886 2 6602 1218 Rev. March, 2012...
