Phrozen Sonic

User Guide

Thank you for purchasing Phrozen products!

Table of Contents

Need help?

Do you have a question about the Sonic and is the answer not in the manual?

Questions and answers

Summary of Contents for Phrozen Sonic

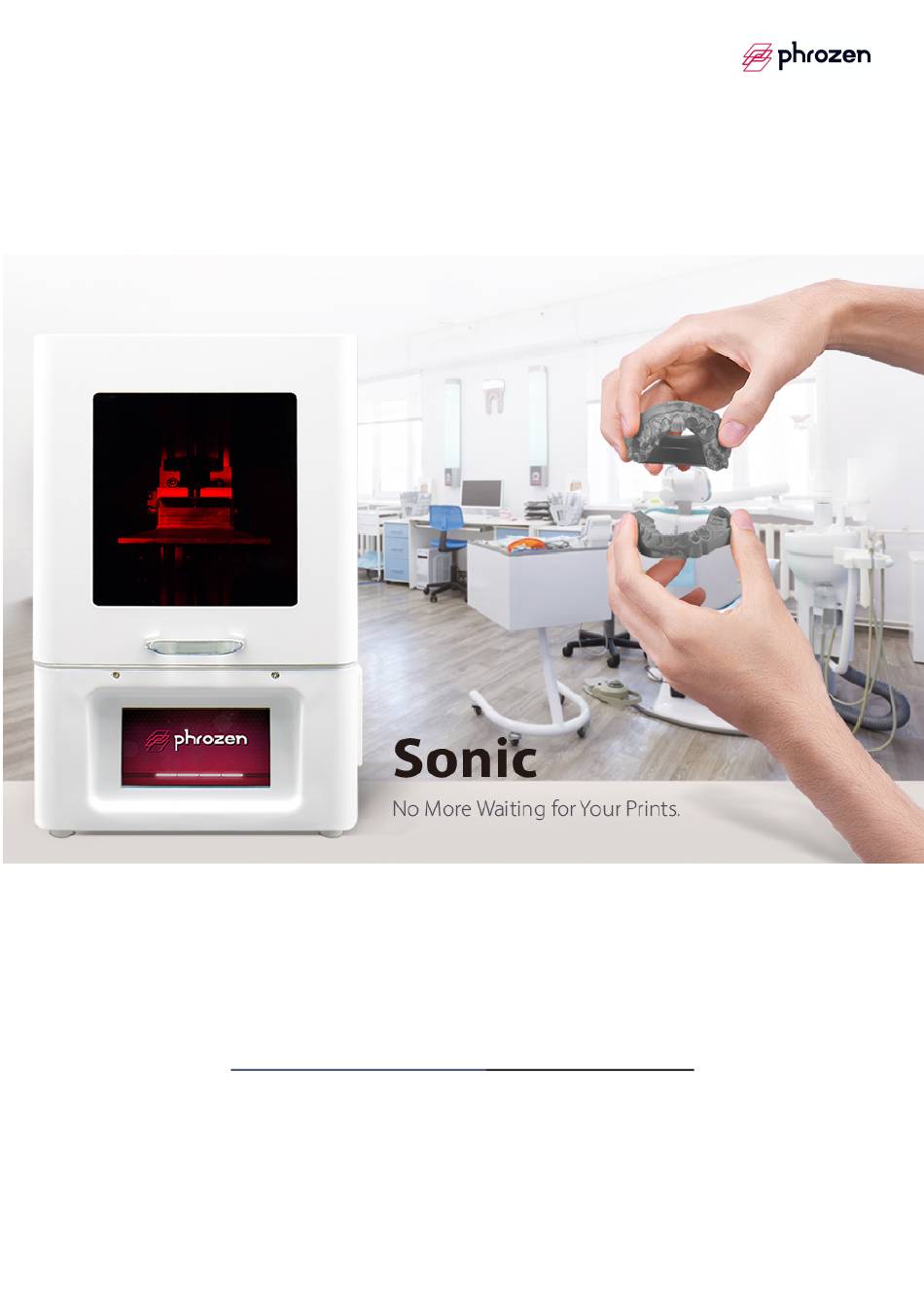

Page 1 Phrozen Sonic User Guide Thank you for purchasing Phrozen products!
Page 2: Table Of Contents
INDEX CONTENTS ....................... 3 BEFORE YOU START… .................... 4 III. POWER ON/POWER OFF ..................5 PHROZEN OS FUNCTION ..................7 CALIBRATION ......................8 RESIN PROFILE SETTING ..................11 VII. UPLOARD PRINTING FILES ................. 13 VIII. START TO PRINT ....................16 AFTER PRINTING PROCESS ................
Page 3 CONTENTS 1. Phrozen Sonic LCD 3D Printer (with building platform) * 1 pc 2. Resin Vat with Cover and Preinstalled FEP film 3. Phrozen Printing Toolkits Box 3.1 Funnel * 1 pc 3.2 Ethernet Cable* 1 pc 3.3 Doorknob & Hex Wrench* 1 set 3.4 WiFi USB Dongle* 1 pc...
Page 4: Before You Start
BEFORE YOU START… 1. Assemble the Doorknob Use the hex wrench to assemble the doorknob on Phrozen Sonic. 2. Plug-in AC Power Cord 3. Insert WiFi USB Dongle or Ethernet Cable...
Page 5: Power On/Power Off
III. POWER ON/POWER OFF 1. Power On Switch AC power from OFF to ON. Phrozen OS will be ready in 45 secs.
Page 6 2. Power Off Step 1 è Click【SETUP】è Click【Shutdown】èClick【✓】. Step 2 è Switch AC power from ON to OFF.
Page 7: Phrozen Os Function
IV. PHROZEN OS FUNCTION 【PLATES】èTo choose your printing file. 【PROFILE】èTo manually adjust the resin profile. 【SETUP】èPower off, reboot and status checking. 【Z-AXIS】èZ-axis calibration. 【LCD TEST】èLCD quality checking. 【WIFI】: WiFi setting.
Page 8: Calibration
CALIBRATION Z-axis calibration is an essential process to make your 3D prints successfully printed with good quality, please do start your printing process after a proper Z-axis calibration. Step 1è Take off the resin vat and Step 2è Put 1 piece of A4 paper on make sure no objects on the LCD.
Page 9 Step 4è Click 【Z-AXIS】button to start the calibration process. Step 5è Click the manual dot icon at the right side. Step 6è Click 【NEXT】 , kindly wait the build platform down to the BOTTOM.
Page 10 Step 7è Tighten the screws with slightly pressing the build platform to make sure the A4 paper is still and IMMOVABLE. Step 8è Click 【DONE】, kindly wait the build platform back to the top.
Page 11: Resin Profile Setting
VI. RESIN PROFILE SETTING 1. Connect your 3D printer to the internet via Ethernet Cable or WiFi. 2. Input the IP address showed at the top of Phrozen OS display on your web browser. IP Address (XXX.XX.X.XXX) Input the IP Address showed at touch panel here...
Page 12 4. Add new resin profile by inputting name and profile setting Ø Tip 1 Check Phrozen Resin profiles of all models here! è https://reurl.cc/0zy6Xk Ø Tip 2 è 1 second = 1000 ms è 1 um =0.001 mm Ø Tip 3 Please name your resin profile with ONLY EN ALPHABET.
Page 13: Uploard Printing Files
VII. UPLOARD PRINTING FILES 1. Upload Printing Files via USB Step 1 è Make sure the printing file in your USB has been sliced to .phz or .zip format. Ø Tips Please name your printing file with ONLY EN ALPHABET. Step 2 è...
Page 14 2. Upload Printing Files via Internet Step 1 è Connect your 3D printer to the internet via Ethernet Cable or WiFi. Step 2 è Input the IP address showed at the top of Phrozen OS display on your web browser. IP Address (XXX.XX.X.XXX)
Page 15 Step 3 è Click 【PLATES】of the navigation bar. Step 4 è Select your printing file (.phz or .zip format) and upload it. Ø Tips Please name your printing file with ONLY EN ALPHABET.
Page 16: Start To Print
VIII. START TO PRINT Ø Tip 1 Always wear gloves, goggles, long-sleeved clothing during your printing process. Ø Tip 2 Resin is a kind of chemical material, if feeling any uncomfortable during using it or, moreover, accidently eating it, please go to the nearest medical unit asap for further help.
Page 17 1. Do Your Printing via Phrozen OS Step 1 è Click 【PLATES】. Step 2 è Choose the file you would like to print. Step 3 è Check the printing details, NAME, LAYER, PROFILE on 【PREVIEW】 page and click 【✓】to start your printing process.
Page 18 2. Do Your Printing via Internet Step 1 è Click 【PLATES】of the navigation bar. Step 2 è Select the file you would like to print and click 【PRINT】 to start the printing process. Ø Tips Update your resin profile if there’s any changed choice.
Page 19: After Printing Process
Step 1 è Take off your print slightly from the build platform with metal scraper. Ø Tips Always wear gloves and be aware of any danger operations with the metal scraper. Step 2 è Clean your prints by Phrozen Wash/IPA/95% alcohol until no resin on your print. Ø Tips Phrozen Washè https://reurl.cc/8lOv0o Ø...
Page 20: Software
Ø Tip 2 Always keep new resin and used resin stored in separated container. Step 4 è Clean your resin vat by Phrozen Wash/IPA/95% alcohol until no resin on the resin vat. SOFTWARE 1.Basic setting...
Page 21 (d) Select layer thickness Step 1 è Machine type Step 2 è Parameter file Step 3 è Click〝⊕〞icon...
Page 22 (e) Change parameter file Step 1 è Change the name of parameter Step 2 è Adjust the slice thickness Step 3 è Save Step 4 è Save again...
Page 23 (f)Import file Step 1 è Select the upper left file icon Step 2 è Choose the file to import Mobile window: The middle mouse button can move the screen, and the ※ right mouse button can rotate the screen in 3D. 2.
Page 24 3. Air out setup ※After hollowing out, make sure air out at least two holes on the bottom of model. (a) Slice air out ─── create a set of pressure relief holes in slice process. Step1 è It goes with slice air out mode to adjust the size of holes Step2 è...
Page 26 Actual air out ───create a set of pressure relief holes in a hollow 3D model design. Step1 è Select actual air out image Step2 è Air out at the bottom of model Step3 è It is able to air out continuously, after that select the image to exit the function.
Page 27 4. Bracket setup (a) Select the right side of window───generate bracket（Basic） (b)Bracket setup Step1 è Density could be 80-175% Step2 è Support tip contact point diameter 0.6mm Step3 è Support post pillar diameter 0.8mm Step4 è Support base diameter 1mm (c)Select create bracket, software would add bracket automatically...
Page 28 (d) Click『Confirm』 5. Edit bracket (a)Select───the edit spot Step1 è Click the left mouse button on the position where to create bracket, after that it would generate a black spot which is the support tip position Step2 è If click the left mouse button on the black spot again, it would clear away Step3 è...
Page 29 (b) Edit base Step1 è If click the left mouse button on the base, it is able to edit the detail setup of base at the right side of window Step2 è After editing, select『Apply』to complete Step3 è After finishing bracket operation, click upper right corner to 『complete』...
Page 30 6. Model slice Step1 è Select slice image Step2 è Select───start to slice operation 7. Examinate before slice Step1 è Make sure the type of machine and slice thickness which needs to be the same as resin profile. Step2 è Please name your printing file with ONLY EN ALPHABET. Step3 è...
Page 31 ※It automatically saves the file after finishing slice. Also, the more layers go, the much time consumes. Please be more patient to it.
Page 32: Contact Us
Please contact your local agent/distributor for the license file. If you purchase your Phrozen Sonic on our official website, the license of Phrozen 3D has been sent to your email address listed while purchasing. iii. Phrozen 3D is our latest slicing software co-developed with Netherlands FormWare, please check the FormWare official website for further introduction.
