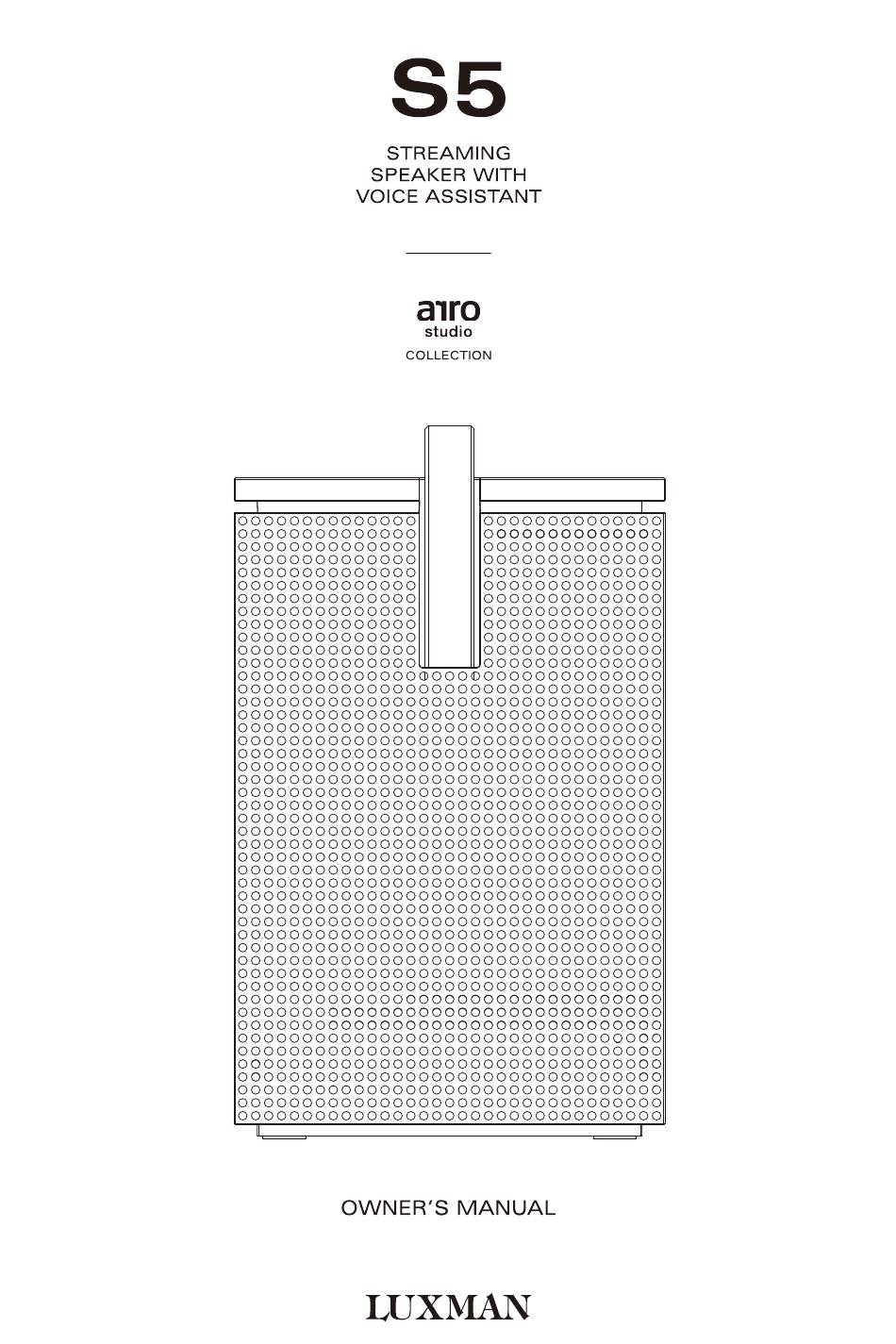

Luxman S5 Owner's Manual

Luxman S5 Owner's Manual

Streaming speaker with voice assistant
Hide thumbs
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the S5 and is the answer not in the manual?

Questions and answers

Summary of Contents for Luxman S5

  • Page 2 Note: Explanations of required symbols in the operating manual shall precede any operating instructions. IMPORTANT SAFETY INSTRUCTIONS 1.Read these instructions – All the safety and operating instructions should be read before this product is operated. 2.Keep these instructions – The safety and operating instructions should be retained for future reference.
  • Page 3 WIRELESS STREAMING SPEAKER ARRO Studio Collection 14.Refer all servicing to qualified personnel. Servicing is required when the apparatus has been damaged in any way, such as power supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

  • Page 4: Table Of Contents

    TABLE OF CONTENTS Confirmation of bundled items •••••••••••••••••••••••••••••••• 5 Feature •••••••••••••••••••••••••••••••••••••••••••••••••••••••••• 6 Name and use of each part •••••••••••••••••••••••••••••••••• 7 Setup ••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••11 Method of operation •••••••••••••••••••••••••••••••••••••••••••15 Specifications ••••••••••••••••••••••••••••••••••••••••••••••••••23 Trademarks of each company •••••••••••••••••••••••••••••••24 Caution on safety ••••••••••••••••••••••••••••••••••••••••••••••26...
  • Page 5 IN THE BEGINNING Thank you very much for purchasing LUXMAN arro studio collection S5.Founded as a radio department in the corner of the frame shop "KINSUIDO" in 1925, when NHK started to broadcast this radio, LUXMAN has delivered many products to audio and music fans for over 90 years.

  • Page 6: Confirmation Of Bundled Items

    CONFIRMATION OF BUNDLED ITEMS Body Power cable Owner's manual Cleaning cloth (this book)

  • Page 7: Feature

    WIRELESS STREAMING SPEAKER ARRO Studio Collection FEATURE • Powerful and high sound • Object design quality The refined and simple appearance using aluminum We realize powerful music material matches rooms with reproduction of low-pass 30W + various high-pass 15W * 3 although beinga compact case.

  • Page 8: Name And Use Of Each Part

    NAME AND USE OF EACH PART Top panel ⑥ ⑤ ① ② ③ ④ ① Wheel • Adjust volume • power on / off press and hold the wheel for 3 turning the wheel towards the seconds directly below the product back of the product will increase to turn on the machine.
  • Page 9 WIRELESS STREAMING SPEAKER ARRO Studio Collection ④ INPUT button ③ Microphone mute button It is a button to switch to the Disable the microphone for calling sound source you want to listen to Amazon Alexa by voice. the input of this unit. Every time When the microphone is disabled, this button is pressed, the input press this button again to enable...
  • Page 10 Rear panel ⑦ ⑥ ③ ② ① ④ ⑤ ⑧ ⑨ ② Wired LAN terminal Connect to your home router or ① AC IN terminal network hub using a LAN cable. Connect the supplied power cable. *When connecting this unit via Wi-Fi (wireless LAN), do not connect a LAN cable to this ③...
  • Page 11 WIRELESS STREAMING SPEAKER ARRO Studio Collection ⑤ OPTICAL OUT terminal ⑥ ANALOG IN terminal Digitally connect an audio device Connect an analog device with an with an OPTICAL input with an audio device with analog output optical cable. using a line cable (stereo mini plug type).

  • Page 12: Setup

    Wi-Fi (wireless LAN), do not connect a LAN cable to this terminal. - Download the app Download and install the dedicated application "LUXMAN CONNECT" from the Google Play Store or App Store according to the smartphone or tablet OS used. -11-...
  • Page 13 At this time, the INPUT press the INPUT button several indicator NET starts blinking. times until NET lights or flashes. 3. Launch the "LUXMAN CONNECT" app and follow the on-screen instructions to proceed with the setup. Switch your smartphone Press "Add Device"...
  • Page 14 SETUP Follow the instructions on the Device list screen. screen to connect to your smartphone or tablet Wi-Fi network. Then, set up an Amazon Alexa Network connection is complete account that provides voice when this screen is displayed. control to this unit. -13-...
  • Page 15 WIRELESS STREAMING SPEAKER ARRO Studio Collection When this screen is displayed, Follow the onscreen instructions preparation for Amazon Alexa is to log in to Amazon. complete. You can give this machine a name The setup is complete when the you like so that you can device name is displayed on the distinguish individual products device list screen.

  • Page 16: Method Of Operation

    Press the unit's INPUT button to select NET (Network). Launch the dedicated application "LUXMAN CONNECT" from your smartphone or tablet. This screen displays a list of Device list screen. devices (including this unit) set up in the same network.
  • Page 17 WIRELESS STREAMING SPEAKER ARRO Studio Collection This is a screen to control the music being played. 1. Search 2. Favorite 3. My music 4. Internet music service 5. Add service 6. AUX input 7. Bluetooth 8. USB device 9. Optical digital input Music playback screen.
  • Page 18 When you wirelessly press the AirPlay icon of the play music from your DLNA application, you can play your compatible device. music wirelessly by selecting this unit (ASC-S5) from the AirPlay compatible devices listed. -17-...
  • Page 19 At this time, BT of the INPUT indicator starts blinking. Open the Bluetooth settings on your smartphone or tablet and select "LUXMAN ASC-S5" from the list of available devices. It may take some time for your device to detect this unit and to be displayed in the list.
  • Page 20 METHOD OF OPERATION USB memory playback By inserting a USB memory into the USB (A type) terminal on the back of this unit, you can play music data built in the USB memory. When a USB memory is inserted into this unit, the input of this unit automatically switches to USB, and playback of the built-in music data starts in alphabetical order of file name.
  • Page 21 WIRELESS STREAMING SPEAKER ARRO Studio Collection Music playback by optical digital input Press the unit's INPUT button and select OPT (Optical: Optical Digital). It is the same even if you select the optical digital from the main menu screen of the dedicated application.
  • Page 22 METHOD OF OPERATION Multi-room playback [Solo mode] When multiple devices are displayed on the device list screen, each device is operating independently. By pressing the device icon, you can select Input from the main menu screen to play different music for each device. [Multi mode] When you want to play the same music on multiple devices, the devices need to be in the...
  • Page 23 WIRELESS STREAMING SPEAKER ARRO Studio Collection METHOD OF OPERATION Stereo pair playback When multiple devices are grouped, you can change the audio channel played by the device by pressing the audio channel selection icon. Set the audio channel of this unit on the left side to L and the audio channel of this unit on the right side to R of two units of this unit installed in the same room, the audio stereo (LR)
  • Page 24 Music playback by analog output Connect an analog audio device with the ANALOG OUT connector of this unit and an analog input with a line cable (stereo / mini plug type). The music played on this unit is played on the connected audio device.

  • Page 25: Specifications

    WIRELESS STREAMING SPEAKER ARRO Studio Collection SPECIFICATIONS Type: Streaming Speaker Model name: ASC-S5 Output: Woofer 30W + tweeter 5W + Tweeter 5W + 5W for left and right channel Speaker: Woofer 100mm + tweeter 25mm × 3 Crossover frequency: 2,300 Hz...

  • Page 26: Trademarks Of Each Company

    Airplay, iPod, iPhone, and iPod touch are trademarks SIG, Ink. And any use of such marks by of Apple Inc., registered in LUXMAN Corporation, Incorporated is the U.S. And other under license. Other trademarks and trade countries. App Store is a names are those of their respective service mark of Apple Inc.
  • Page 27 WIRELESS STREAMING SPEAKER ARRO Studio Collection English(US) Use your phone, tablet or computer as a remote control for Spotify. Go to spotify.com/connect to learn how German Verwende dein Smartphone, Tablet oder deinen Computer als Fernbedienung für Spotify. Auf spotify.com/connect erfährst du mehr. French Utilisez votre téléphone, votre tablette ou votre ordinateur comme une télécommande pour contrôler Spotify.

  • Page 28: Caution On Safety

    CAUTION ON SAFETY << FCC >> NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
  • Page 29 << CE >> Use the ASC-S5 in the environment with the temperature between -10℃ and 40℃, otherwise, it may damage your ASC-S5. It can be operating under 2000m Hereby, (IAG Group Ltd.) declare that the radio equipment type ASC-S5 is compliance with Directive 2014/53/EU.

  • Page 30: Declaration Of Conformity

    CAUTION: PRECAUCIÓN: • The ventilation should not be impeded by covering the ventilation openings • La ventilación no debe quedar obstruida por hacerse cubierto las aperturas with items, such as newspapers, tablecloths, curtains, etc. con objetos como periódicos, manteles, cortinas, etc. •...
  • Page 31 • This symbol that touching uninsulated terminals or wiring may result in an unpleasant sensation. • Before connecting to speakers, turn off the main power switch. LUXMAN CORPORATION AG00638A53C Printed in china 1-3-1 Shinyokohama, Kouhoku-ku, Yokohama-shi, Kanagawa 222-0033, Japan -30-...
  • Page 32 -31-...
