MyLEDLightingGuide MLLG-AX-LED-HM-450-5000-PM Installation Instruction

PLEASE READ THESE INSTRUCTIONS CAREFULLY BEFORE INSTALLATION

IMPORTANT INSTALLATION INFORMATION

1.Normal opera ng environment and temperature:
-40 50 Fixtures is suitable for Airport, Car Dealerships,
-+ .
℃ ℃
Achitural, Municipal, Parking lot, Stadium, and Port ligh ng.
2.Before commencing installa on or repairs, ensure that
power mains are switched off. Only registered or licencesed
electricians are allowed to conduct installa on or repairs.
3.Light fixture should not be installed nearby or on flammible
materials and must be installed away from heat sources.
4.Recommended installa on height above lighted area:
6-40 meters.
5.All light fixtures run hot therefore the space surrounding the
light fixture shall have adequate airflow spacing of at least 50cm
omni-direc onally from the outer case. Fire hazards and local
safety ordinances shall be taken into considera on by the
installer before commissioning.
LEAVE A COPY FOR THE USER / MAINTENANCE ENGINEER
FOR FUTURE REFERENCE

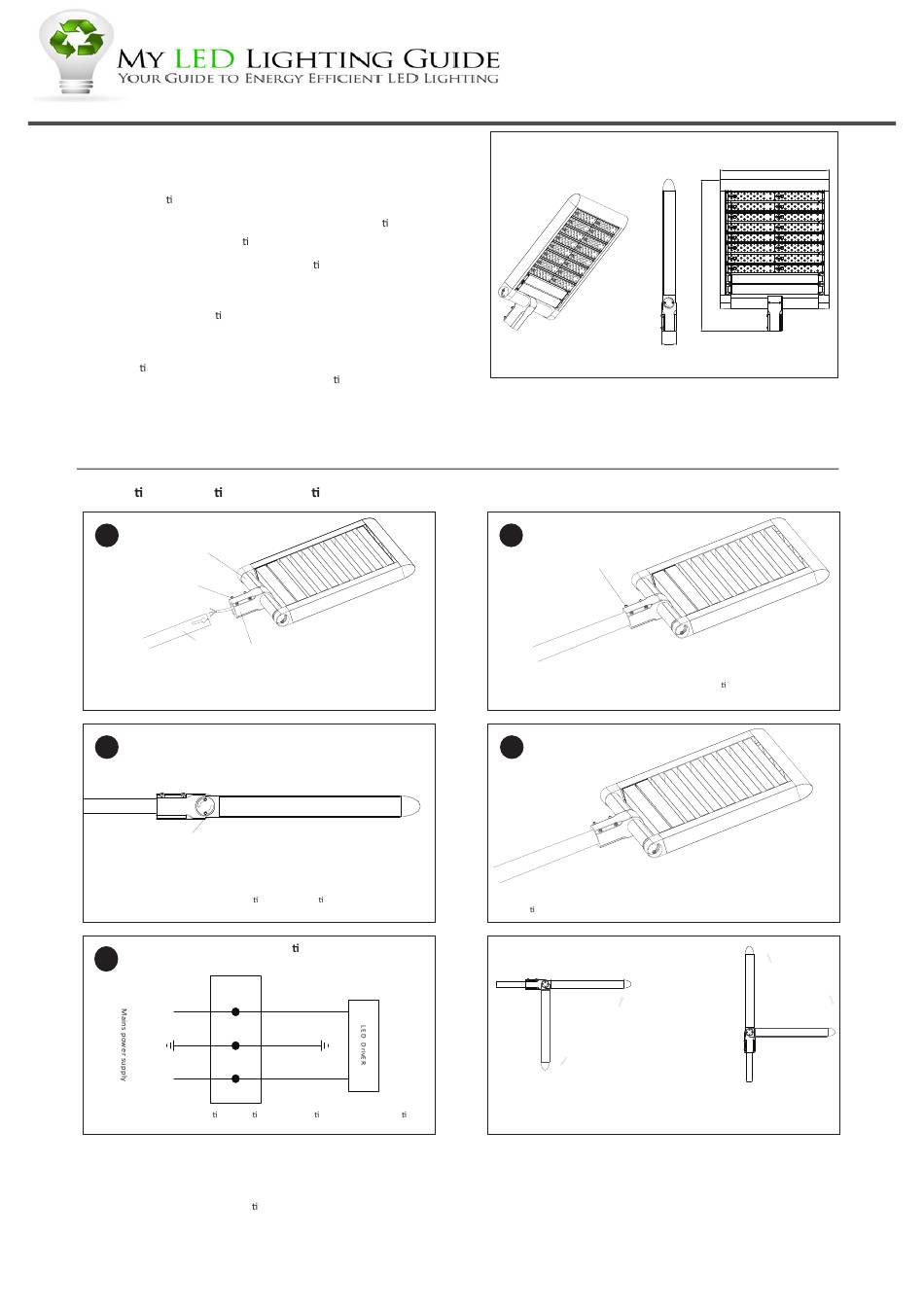

Installa on Instruc on & Installa on Steps
1
Rotatable tenon
Locking bolts
Pole
STEP 1:
Loosen locking bolts, then connect the mains power supply cord.
See Figure 1.
3
Screws to adjust and lock rotatable
tenon
STEP 3:
Loosen the screws on both sides of the rotatable tenon, rotate
the light body to a specific aiming direc on for illumina on,
then secure the screws with 25 n.m of force.
Electrical Connec ons
5
Terminal Block
LIVE
GROUND
NEGATIVE
STEP5:
Reference "Electrical Connec ons" sec on for comple ng electrical connec ons.
See Figure 5.
*The external flexible cable or cord of this luminaire cannot be replaced; if the cord is damaged, the luminaire shall be destroyed.
Terminal block not included, Installa on may require advice from a qualified person.
Locking nuts
L
LIVE - Black
G
GROUND-Housing
N
NEGATIVE - White
H
MLLG-AX-LED-HM-600-5000-PM
Drawings herein for MLLG-AX-LED-HM-600-5000-PM are used as examples for all the
below listed models
2
Mains power supply cord
STEP 2:
Ensure to slide fixture to the inner end of tenon,then ghten
locking bolts with 45 n.m of force.
4
STEP 4:
Installa on is completed. See Figure 4.
0°
-90°
*0~ 90 degrees adjustable
LED Flood/AreaLight
INSTALLATION INSTRUCTION
W
L
+90°
0°
