- Page 1 MERI ™ USER GUIDE...
-
Page 3: Main Screen

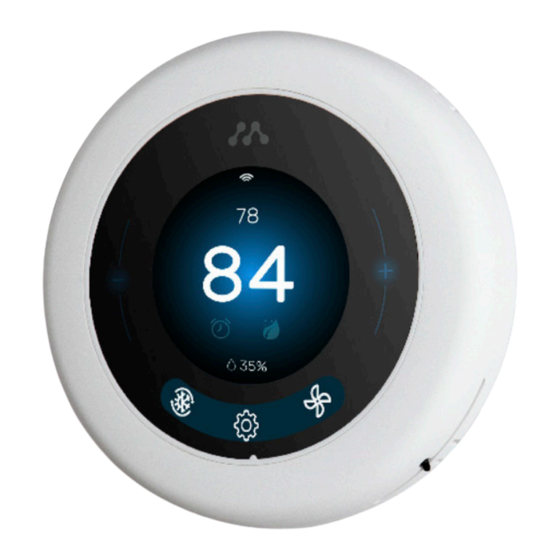

MAIN SCREEN WiFi Set Temp Show WiFi Shows the current set temperature Connection status Room Temp Show current room Eco Mode temperature Toggle the Eco Mode temperature range Schedule Mode Toggle the scheduled temperature ranges Humidity Shows the current room humidity System Mode Toggle the system mode... -
Page 4: Specifications
SPECIFICATIONS Temperature Sensor Accuracy ±1ºC Temperature Range Heating 40º - 90ºF (4º-32ºC) Cooling 50º - 99ºF (10º-37ºC) 0~45ºC, 5~95% RH Operating Temp/ (non-condensing) Humidity Range Screen Resolution 320 x 480 TFT LCD Power Supply AC 24V Size 112 x 112 x 20mm Housing Material IP Rank IP20... -
Page 5: Thermostat Functions
THERMOSTAT FUNCTIONS Functions Descriptions System Modes Off, Heat, Cool, Auto, Emergency Auto, on Task Modes Schedule, Eco Room Temperature Detects the current room Display temperature Humidity Display Detects the room humidity level Delay Protect Controls the start and stop time intervals of the compressor WiFi Connection Direct WiFi connection for updates... - Page 6 APP PAIRING From the main screen, tap on the settings icon. Then select the APP PAIRING option Download the “Momentum Smart Thermostat”...
- Page 7 APP PAIRING Ready the app to scan the QR code on the next screen Scan the QR code on the screen Complete!
-
Page 8: Symbol Guide
SYMBOL GUIDE Symbol Name Description System Selection of heat/ cool/ auto/ Mode emer/ off options Standby/ Standby mode/ Main Screen Main Enter settings screen Settings Enable the scheduled temperature Schedules settings ECO mode activation Fan Auto Fan runs automatically Fan On Fan turns on WiFi WiFi connectivity... - Page 9 OPERATIONS 1) System mode selection In the main interface press to toggle the system mode selection. You can switch between OFF, COOL, HEAT, EMER, AUTO modes. Press to toggle the Fan AUTO, ON. Note that not all mode options will be available as it will depend on your sys- tem type.
- Page 10 OPERATIONS 3) Standby Screen When the thermostat is idled it will go to a standby screen that has additional options. You can adjust the idle period from the thermostat’s display settings. Here you can toggle the Schedules and ECO modes by tapping the icons at the bottom.
- Page 11 OPERATIONS 6) Eco This is an energy saving mode to use when away from home. This mode will maintain the room temperature to stay within the preset cooling or heating temperature range. The temperature range should be relatively wide to save more energy. 7) Display •...
- Page 12 OPERATIONS 8) Reminders Set a time frame to remind you to change your air filter. The reminder can be set from 0-12 months. 9) System Type Select the appropriate system type option according to your HVAC system. Be sure to choose the correct one or your system may not run properly.
- Page 13 OPERATIONS 11) Status Displays which terminals are currently on when a system mode is activated. 12) Advanced • Fan Controls – You can enable the Fan to run with the heater and extend the fan run time after the AC or heater is turned off.
- Page 14 13) App Pairing Follow the instructions given on the screen to pair the thermostat to the Momentum Smart Thermostat app. 14) Reset This will reset the device to the original factory settings and wipe all the custom-...
- Page 15 OPERATIONS FCC Compliance This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Attention that changes or modification not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
- Page 16 © 2016 Momentum Momentum is a registered trademark in the United States. Apple and iPhone are registered trademarks of Apple Inc. Google, Google Play, and Android are trademarks of Google LLC. All other brands and product names are or may be trademarks of their respective owners.
