TracRac CapRac 29200 Installation Manual

Racks for Truck Caps & Shells
Extremely quick and
easy mounting
Installation Guide
SKU 29200
CapRac's unique design allows users to
securely mount loads to the roof of their
truck cap.
NOTE: Layout brackets with crossbar, prior to
drilling, to confirm fit.

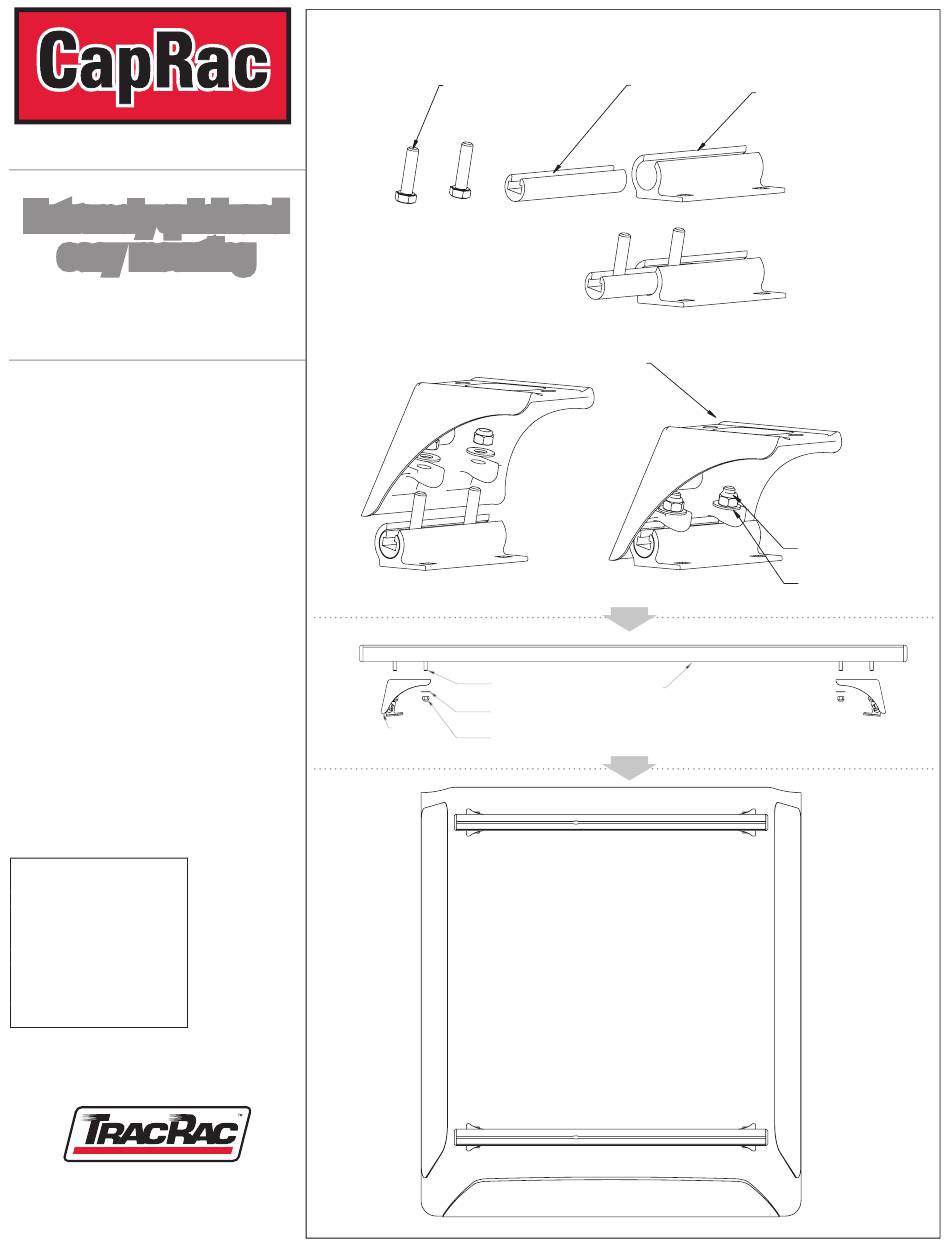

➀ • Loosely assemble rack corners to swivel
brackets.
➁ • Loosely assemble crossbars to
rack corners.
➂ • Place corners with crossbars onto
truck cap.
• Align and position
• Mark holes.
• Drill holes in cap for 5/16" bolts.
Installation cont. page 2
Tools Required: Tools Required:
9/16" wrench 9/16" wrench
1/2" wrench 1/2" wrench
3/8" drill bit 3/8" drill bit
Electric drill Electric drill
TracRac, Inc.
994 Jefferson Street, Fall River, MA 02721
T: 800.501.1587 • F: 508.677.4136
www.tracrac.com
➀
HD-80112-1
HEX BOLT 5/16-18 X 1 1/4
10-25111
CROSSBAR TIEDOWN
KB-90004
KNOB 3/8-16
HD-80122
T-BOLT 3/8-16
RACK CORNER
RACK CORNER
ASSEMBLY
➁ ➁
HD-80122
T-BOLT 3/8-16
HD-80078
WASHER 3/8
RACK CORNER
HD-80120
ASSEMBLY
LOCK NUT 3/8-16
➂
CapRac Assembly Instructions
AX-11115
SWIVEL ROD
AX-122XB
CROSSBAR
ZN-11502
CORNER BRACKET
HD-80122
T-BOLT 3/8-16
HD-80078
WASHER 3/8
HD-80098
HEX NUT 3/8-16
AX-122XB
CROSSBAR
FX-14476
SWIVEL BRACKET
SWIVEL BRACKET
HD-80139
LOCK NUT 5/16-18
HD-80115
WASHER 5/16
Pg. 1 of 2
