SURE XMTS TEMPERATURE CONTROLLER – SIMILAR TO BELOW
NO
DESCRIPTION

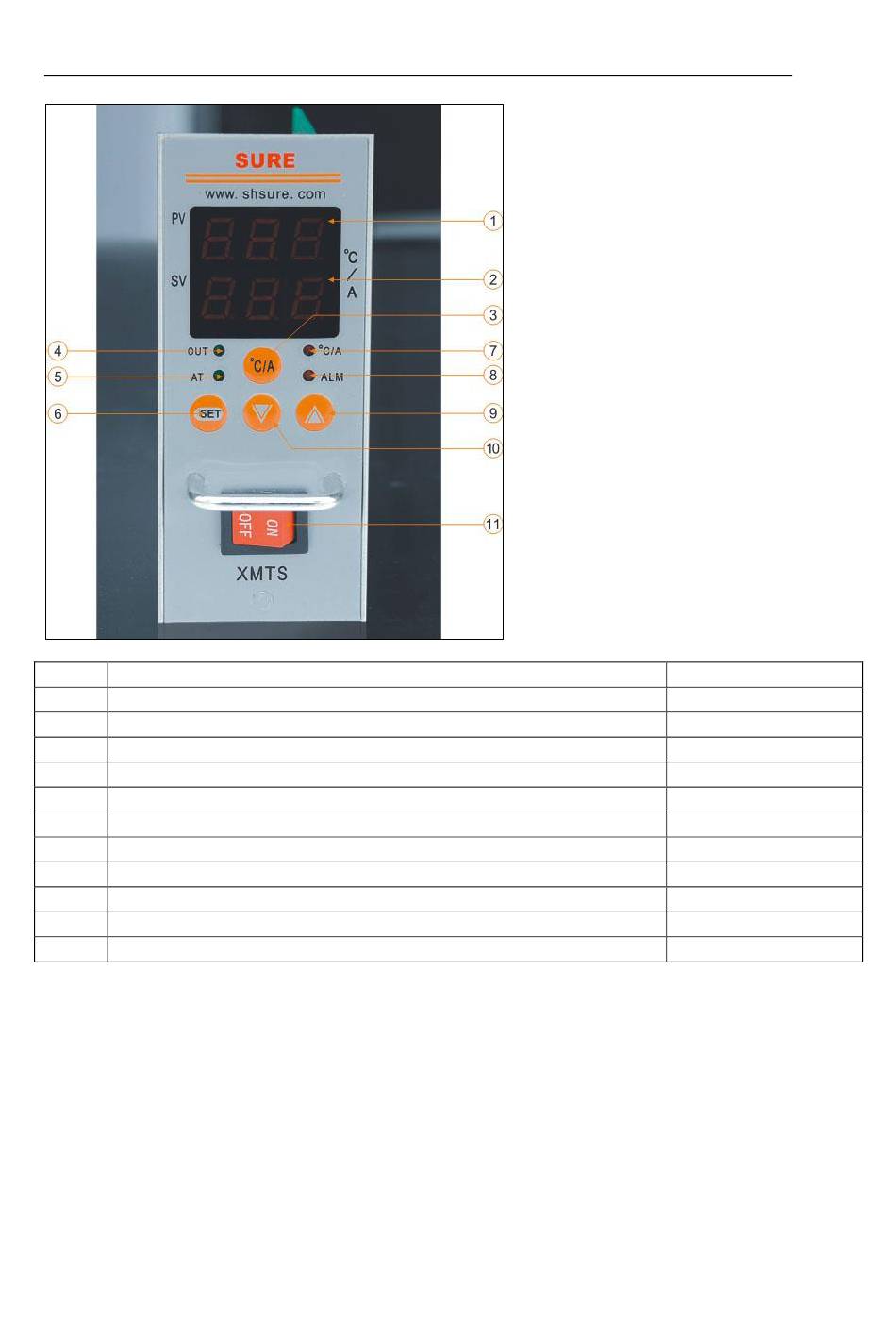

1
PV – actual probe temperature
2
SV – required temp set point
3
Degrees/current drawn ( not on all models)
4
'OUT' LED. Power out indicator
5
'AT' LED. On when in 'Setup' mode
6
'SET' – function setup button
7
Degrees/Current indicator LED (not on all models)
8
'ALARM' LED – on when probe open circuit or temp too high/low
9
Increase button
10
Decrease button
11
Power ON/OFF
Note!
'HH' indicates a thermocouple fault.
'LL' indicates thermocouple reversed or short-circuited.
Set PID values to zero for Bit-Type control.
Set LoC to unlocked (value = 0).
Set At to "ON" – so that unit is self-starting.
SETTING
None
As required
-
-
As required
-
-
-
-
-
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the XMTS and is the answer not in the manual?

Questions and answers

Engr.Alrafia Nsraldeen
February 26, 2025

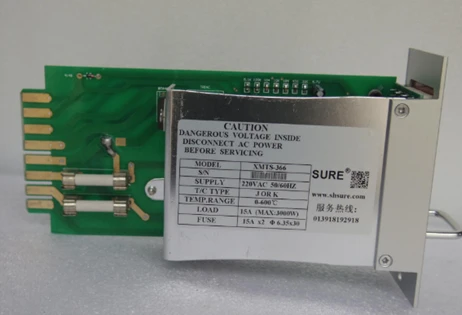

Dear Sir, Please quote for the details below . P/N -XMTS-366 DESCRIPTION -TEMPERATURE CONTROLLER-SURE
