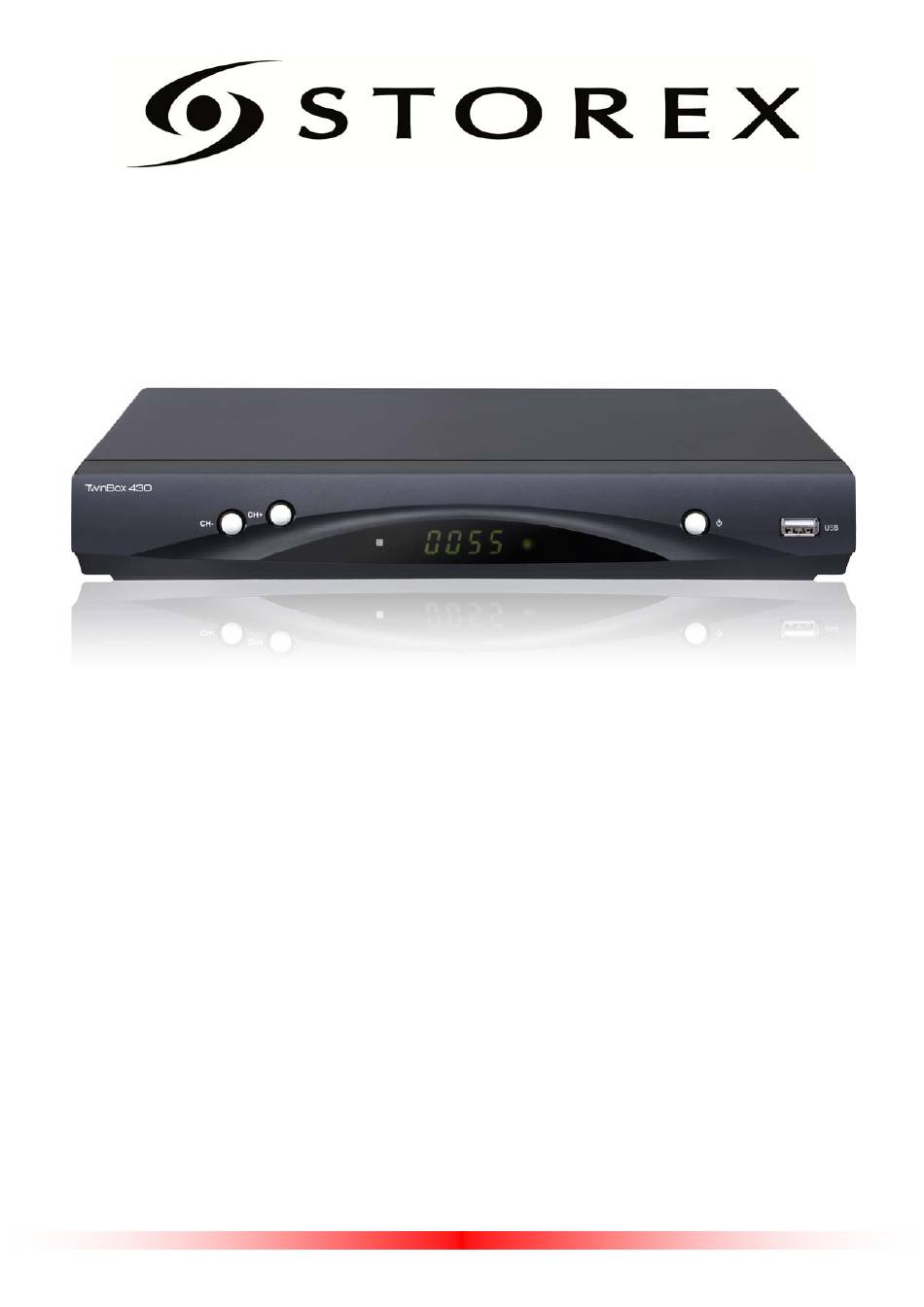

- Page 1 QUICK INSTALLATION GUIDE TwinBox 430 TwinBox 430 Page 1/28...
- Page 2 TwinBox 430 Page 2/28...
-
Page 3: Table Of Contents
DESCRIPTION OF REMOTE CONTROL ...................... 6 BEFORE STARTING ............................8 FRONT VIEW .............................. 8 REAR VIEW ..............................8 CONNECT TWINBOX 430 TO YOUR TV ...................... 9 INSTALL THE DVBT CHANNELS ........................ 10 VIEW AND RECORD DVBT CHANNELS ....................12 VIEWING DVBT CHANNELS ........................12 LIVE RECORDING ........................... - Page 4 TwinBox 430 Page 4/28...
-
Page 5: Introduction
INTRODUCTION The TwinBox 430 allows you to receive the free DVBT channels, including the high definition channels (HD) and to record them. DVBT Records (live, scheduled or deferred) are done on the USB storage (hard drive or USB key). FUNCTIONS - Connect to the wall antenna socket;... -
Page 6: Description Of Remote Control
DESCRIPTION OF REMOTE CONTROL Remote control 1 Remote control 2 Remote control 1: Corresponds to the real remote control. Remote control 2: Corresponds to the numeration of the remote control’s keys. TwinBox 430 Page 6/28... - Page 7 FUNCTION STANDBY Power on / off (standby) the TwinBox 430. MUTE Enable / disable the sound (mute). NUMERIC KEYS Allows going to a specific point of the video file (Time). GOTO INFO Displays the information of the selected file. Option key.
-
Page 8: Before Starting
...). REAR VIEW 1. ANTENNA IN: To connect an antenna cable from the wall outlet to TwinBox 430. ANTENNA OUT: To connect an antenna cable from the TwinBox 430 to the TV. 2. Y / Pb / Pr: To connect an YUV cable to your TV. -
Page 9: Connect Twinbox 430 To Your Tv
AV Cable HDMI Cable Antenna Cable 1. Connect your TwinBox 430 to the wall antenna socket to enjoy the DVBT and HD DVBT channels. 2. Connect TwinBox 430 to the TV using the AV cable (depending on your configuration). 3. Connect the power cord into your wall power socket. -
Page 10: Install The Dvbt Channels
INSTALL THE DVBT CHANNELS Press "HOME" on the remote control and select "Setup" by pressing "ENTER". 1. Select "REC". 2. Choose the geographic area that corresponds to your position. TwinBox 430 Page 10/28... - Page 11 3. Select “Channel Scan” and then press ENTER. Select "Auto Scan" and press ENTER. AUTO SCAN: To scan and automatically install the DVBT channels. MANUAL SCAN: To manually scan and install the DVBT channels. This progressing bar should appear. 4. Once the channels scan is complete, press ENTER. TwinBox 430 Page 11/28...
-
Page 12: View And Record Dvbt Channels
Press to display the Electronic Program Guide. LIVE RECORDING To be able to record DVBT / HD DVBT channels, you must have previously connected an USB device to the TwinBox 430. 1. Select "DTV". TwinBox 430 Page 12/28... - Page 13 HINT: Records are stored directly on the device connected (USB or external hard drive) in the "REC" folder at the root of the device. You can record one channel and watch another simultaneously, simply proceed in the same way as for normal viewing of a channel. TwinBox 430 Page 13/28...
-
Page 14: Scheduled Recording
1.5. To select the recording repeat frequency, press "RED" on your remote control. - Once - Everyday - From Monday to Friday - From Monday to - Sunday Saturday - Tuesday - Monday - Thursday - Wednesday - Saturday - Friday TwinBox 430 Page 14/28... - Page 15 3. Press ENTER, a confirmation message will appear. If the settings are right for you, select "Confirm" and press ENTER. HINT: You can record one channel and watch another simultaneously, simply proceed in the same way as for normal viewing of a channel. TwinBox 430 Page 15/28...
-
Page 16: Use Of Storage Device
USE OF STORAGE DEVICE The TwinBox 430 is equipped with two USB HOST ports that allow you to connect an USB key or an external hard drive to the TwinBox 430, to browse it and thus read the multimedia content stored in. -
Page 17: Enjoy The Multimedia World
ENJOY THE MULTIMEDIA WORLD 1. Select "File Manager" on the homepage. 2. Select your STOREX server that appears in the list by pressing "ENTER", and select the folder you want to browse or the file you want to read. 3. Enjoy the Multimedia world! -
Page 18: Settings
DISPLAY AND LANGUAGE 1. Turn on your TwinBox 430. 2. After startup, select “Setup” to configure your TwinBox 430. 3. Select "VIDEO" and then select "TV System" to select the display resolution. 4. Select "SYSTEM" and then select "MENU LANGUAGE” to change the language. -
Page 19: Network
NETWORK HINT: The WiFi key is an option of the TwinBox 430, please contact your distributor or visit the website http://www.e-storex.com to acquire a compatible WiFi key. Connect the WiFi USB device (optional) on one of the USB HOST ports at the back of the unit. - Page 20 5. The list of available names on your SSID network appears. 6. Enter your key using the virtual keypad. Select OK and then press ENTER to confirm. 7. The connection test begins; confirm your choice by pressing ENTER. TwinBox 430 Page 20/28...
- Page 21 HINT It is recommended to configure the network after you correctly connect the USB WiFi to the TwinBox 430 Please check that the anti-virus or firewall is not blocking access of this unit to the network Perhaps you might experience a temporary break and the freeze of the AV content read through the WiFi network because of network speed, video streams input capacity or AV files including HD codes.
-
Page 22: Technical Support
STOREX WEBSITE Go to http://www.storex.eu, select “DVBT Recorder” and then select TwinBox 430. You will be able to download the latest full version of the manual and software updates. TECHNICAL SUPPORT In order to easily manage your issue, you should contact our support team, we invite you to register your TwinBox 430 guarantee on our website at the following address: http://garantie.storex.eu... -
Page 23: Guarantee Conditions
STOREX TwinBox guarantees your TwinBox 430 against any manufacturing or assembling faults. This guarantee only applies to the first purchase of the TwinBox 430 by the end user and is not transferable if the device is resold. This warranty does not cover any incompatibilities found by end user apart from recommendations specified on the packaging, or any other incompatibility generated by other hardware or software on the computer that is connected to the TwinBox 430. -
Page 24: General
- Unplug the product from the wall outlet before cleaning the product, - Clean the outside of the product and the remote control using a soft, dry cloth. Never use an abrasive pad, scouring powder or solvent such as alcohol or gasoline. TwinBox 430 Page 24/28... -
Page 25: Important Hint
TV screen. The plasma TVs and projection televisions are sensitive. SAFETY-ENVIRONMENT Your STOREX product has been tested in laboratory and is consistent with corresponding European Directives for CE marking applicable during the time of marketing. - Page 26 HINT __________________________ __________________________ __________________________ __________________________ __________________________ __________________________ __________________________ __________________________ __________________________ __________________________ __________________________ TwinBox 430 Page 26/28...
- Page 27 TwinBox 430 Page 27/28...
- Page 28 STOREX www.storex.eu © STOREX – 2011 All trademarks are patended by their respective owners. TwinBox 430 Page 28/28...
