- Page 1 ALFANO PRO Serial : (82500 – 99999) (20000 – 59999)

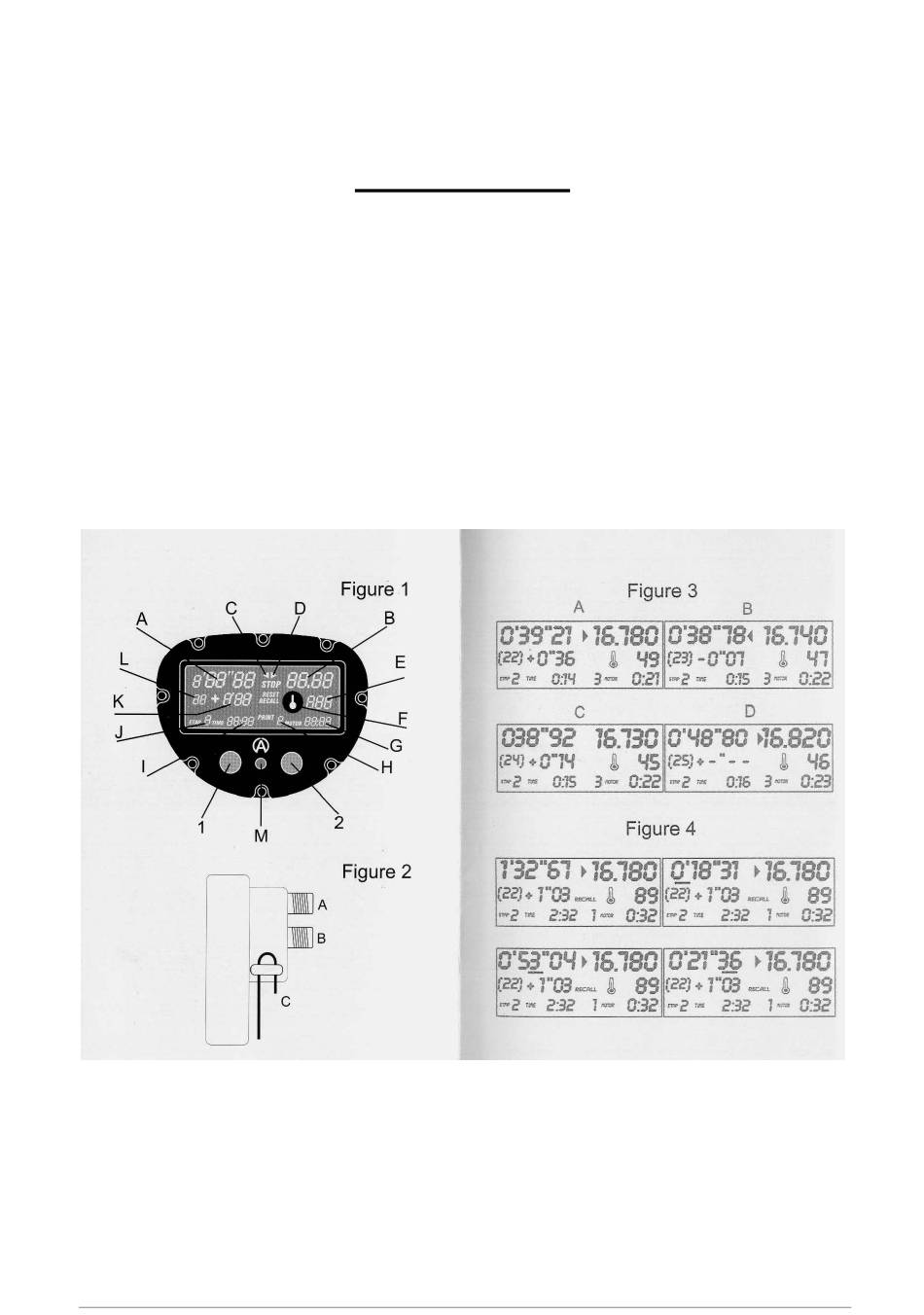

- Page 2 The measuring pulses sent are recorded via a wire which is connected to the spark plugs cable and the device. The wire is hereby inserted in a loop in the two recesses («C» in figure 2). The plastic spirals enclosed with the ALFANO are used to fasten the black wire to the spark plug lead.
- Page 3 For example: Because of motor disturbances. Change to START mode : The ALFANO must first without exception be in the STOP mode. If this is the case then a contact with a magnetic strip is sufficient to delete the display (small dashes appears).
- Page 4 ENGINE NUMBER (MOTOR) This display is helpful if a number of engines are used in the vehicle. If the engine is exchanged another counter should be selected (5 counters are available in the ALFANO). TOTAL TIME (TIME) Total measured time in hours and minutes.
- Page 5 MAIN RECALL “recall” The screen displays the data recorded during the best lap. For each additional impulse on the right button the ALFANO will display the data starting from the first lap. Reading of the results of the split times If the time between pressing the right push button is shorter than 3 seconds only the lap times are shown and not the cycles of the split times.
- Page 6 “PRINT” is displayed with the serial number of your ALFANO. Press the right button: the system starts the infrared output of all saved data and shows the individual serial number in the display. Note : Each ALFANO has a unique serial number.
- Page 7 WARNING! A bad configuration unavoidably leads to a defective reproduction of data. First bring the ALFANO PRO into position : "Best time and maximum engine speed of all recorded circuits”. (See: Chapter 2 "Mode of operation"). The display lasts for 2 seconds.
- Page 8 6° SAFETY MEASURES In mounting the ALFANO, pay attention that the back side of the housing does not come into contact with the steering wheel so as to avoid damaging the housing.
