HomeAware BLINK HA360B User Manual

Hide thumbs

Advertisement

Quick Links

Download this manual

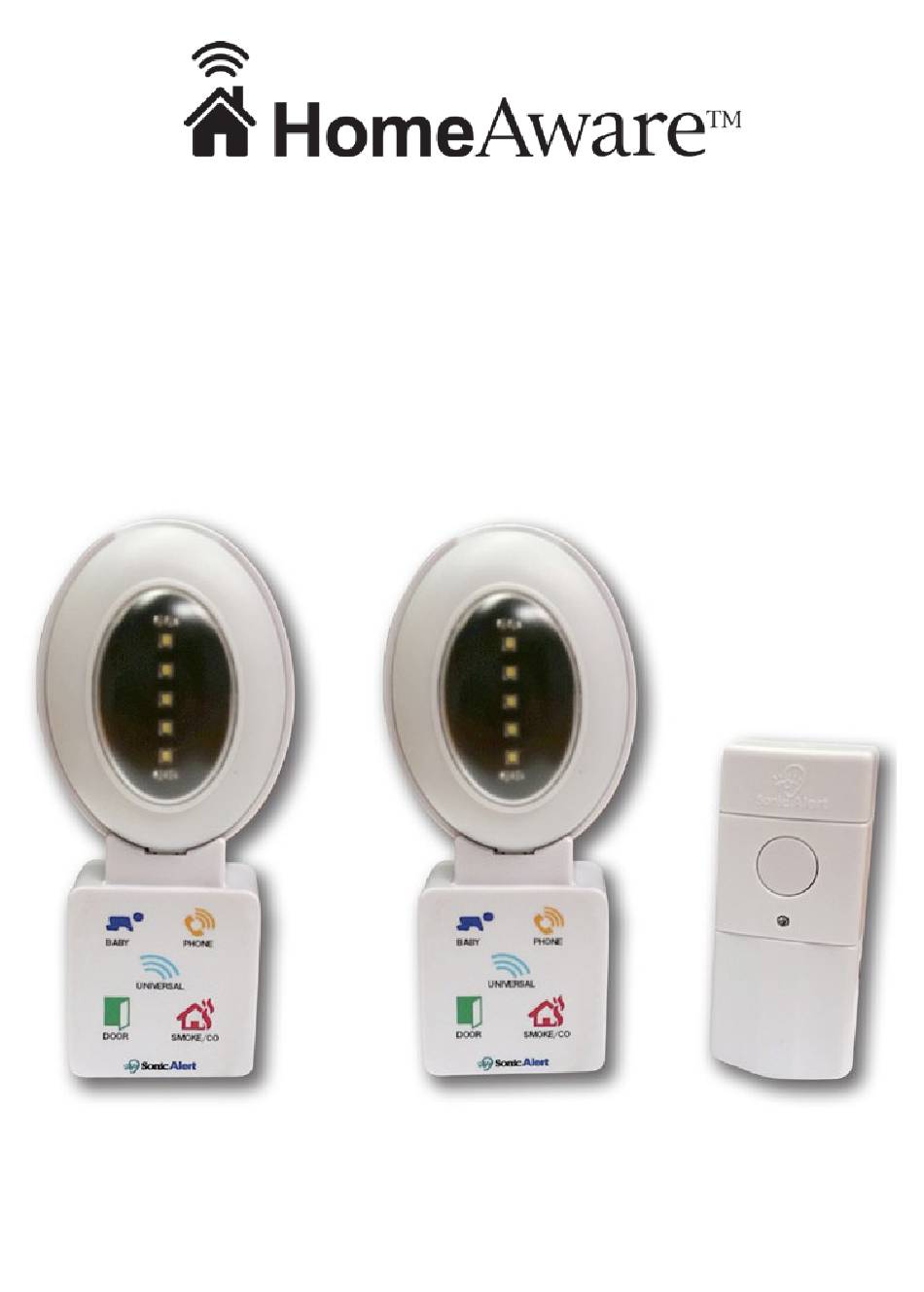

BLINK
USER GUIDE FOR MODELS
HA360B
HA360BDB
Copyright © 2019 Sonic Alert. All right reserved.

Advertisement

loading
Need help?

Need help?

Do you have a question about the BLINK HA360B and is the answer not in the manual?

Questions and answers

Summary of Contents for HomeAware BLINK HA360B

  • Page 1 BLINK USER GUIDE FOR MODELS HA360B HA360BDB Copyright © 2019 Sonic Alert. All right reserved.

  • Page 2: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS When using your HomeAware™ HA360B / HA360BDB, basic safety precautions should always be followed to reduce the risk of fire, electric shock or injury to persons including the following: 1. Read and understand all instructions, if there is something you do not understand please call our customer service.
  • Page 3 • Works even when the power is out for two days. The HomeAware Blink is normally left plugged into an AC outlet. It has an internal battery so it will work for up to two days when the power is out.
  • Page 4 FEATURES Note for models HA360B / HA360BDB: Please be careful when removing and replacing the blink unit to minimize damage to the springs on the bracket. Place the top of the Blink into the top of the bracket and then gently push the blink on the bottom into place on the bracket until you hear it snap into place.

  • Page 5: Battery Features

    20 percent. • If the internal rechargeable battery’s charge in the HomeAware Blink is low, it will flash yellow every eight seconds. Plug the unit back into its cradle and into an AC outlet to recharge the battery.
  • Page 6 Main / Receiver switch. • Set the Main / Receiver switch to Receiver. • Set the HomeAware Main to link mode by press Set Up button on the HomeAware Main and the word LINK will be shown on the display.
  • Page 7 TO USE THE HOMEAWARE BLINK DOORBELL HA360BDB AS A DOORBELL SIGNALER Before linking please install batteries in your HomeAware doorbell. Install Batteries The HomeAware™ doorbell transmitter comes with two #357 silver oxide long-lasting batteries that need to be installed into the bottom of the unit. Once installed the red light should light when the button is pushed.
  • Page 8 • Using a toothpick or paper clip, press the switch under the hole labeled LINK on the bottom of the HomeAware Blink. It is now in link mode and will blink purple for 10 seconds. RGB LEDs will turn orange for one second if there is no link after 10 seconds.
  • Page 9 1. Without the existing chime box. With this method, no existing doorbell chime box is available. Placement of the transmitter should be within 50ft of the HomeAware Blink. (See Step 1 for doorbell transmitter set up below). 2. With the existing chime box. This is the preferred...
  • Page 10 THE DOORBELL TRANSMITTER SET UP Step 1) The Installation Without an Existing Doorbell Chime Box For this method, you will need the provided connector wire to install. We provide screws, and a mounting block (see diagram for transmitter installation on the next page), also see step by step instructions.
  • Page 11 THE DOORBELL TRANSMITTER SET UP Step 1) The Installation Without an Existing Doorbell Chime Box Continued Once the mounting block is in place and you have removed the top screw cover, position the back of the doorbell transmitter over the mounting block.
  • Page 12 THE DOORBELL TRANSMITTER SET UP Step 1) The Installation Without an Existing Doorbell Chime Box Continued Now that the doorbell unit is installed over the mounting block and in place, you now can install the top screw in the top hole, and replace the screw cover.
  • Page 13 THE DOORBELL TRANSMITTER SET UP Step 1) The Installation to an Existing Powered Door Chime With this method, you can install the HomeAware doorbell transmitter to your existing AC powered doorbell chime. This method allows you to use the existing doorbell button so there aren’t two buttons outside.
  • Page 14 THE DOORBELL TRANSMITTER SET UP Mounting the Doorbell Transmitter Use the provided hardware kit to mount the transmitter. See the diagram above for the doorbell transmitter set up. Note: You can link more than one HA360B’s to flash the doorbell light in other rooms.

  • Page 15: Regulatory Compliance

    REGULATORY COMPLIANCE PART 15 OF FCC RULES INFORMATION The HA360B complies with part 15 of the FCC rules, Operation is subject to the following two conditions; (1) This device might not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
  • Page 16 (1) year from the date of purchase. Within this period Sonic Alert will repair or replace at our option the HomeAware™ HA360B / HA360BDB without charge for parts and labor. Simply contact our customer service department to obtain an RMA (return authorization number) and instructions on how to process your product for return.

This manual is also suitable for:

Blink ha360bdb
