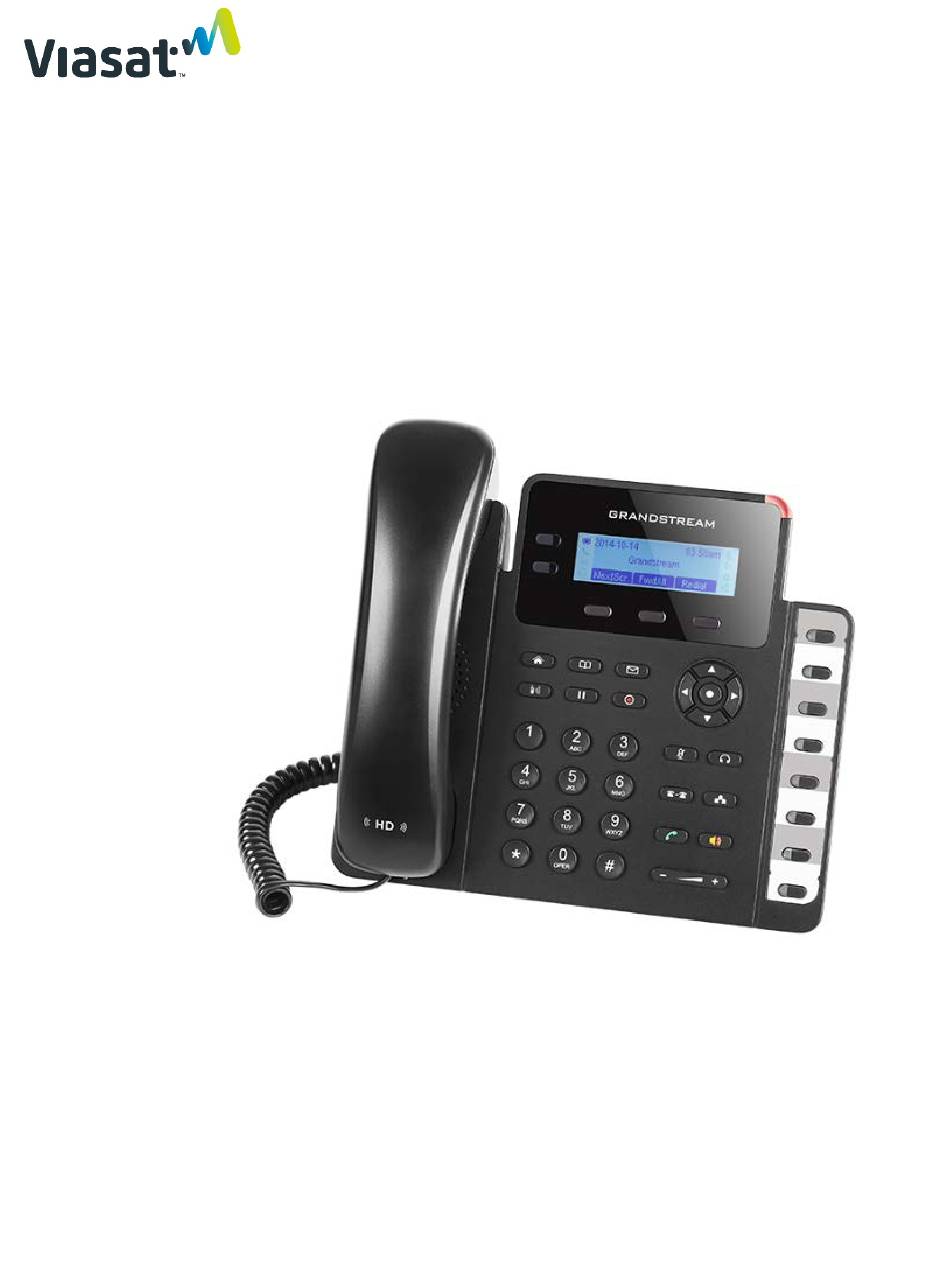

- Page 1 Business Voice Installation Guide...
-
Page 2: Table Of Contents
Step 1 | Ensure all tools, equipment, and supplies are included ............6 Step 2 | Determine equipment location ......................6 Step 3 | Install Viasat Satellite solution ......................6 Step 4 | Set up phone ............................6 Step 5 | Install BLF paper label ........................7 Step 6 | Install CAT5E cable .......................... -
Page 3: Voice Network Installation
Voice Network Installation Viasat Business Hotspots Installation Guide Page | 3... -
Page 4: Equipment
Satellite antenna Satellite modem PoE injector Controller phone* Blue Ethernet patch cable Green Ethernet patch cable *Up to 4 units; includes handset, phone cord, phone stand / wall mount, and BLF labels. Viasat Business Hotspots Installation Guide Page | 4... -
Page 5: Network Connections
1 – 5/8in paddle bit CAT5e color-coded Ethernet cables (included) 1 – Ladder CAT5e black standard Ethernet cable 1 – Laptop or smartphone Cable clips 1 – Cat5E cable tester RJ45 connectors Viasat Business Hotspots Installation Guide Page | 5... -
Page 6: Installation Instructions
Installation instructions This installation guide provides comprehensive instructions for equipment installation and documentation when adding the Business Voice network to the Viasat Satellite Internet solution. Step 1 | Ensure all tools, equipment, and supplies are included Double check all equipment to ensure all parts, tools, equipment, spares, and anything needed for a successful installation are included prior to departing for the location. -
Page 7: Step 5 | Install Blf Paper Label
Install the plastic cover over the paper label by inserting the non-cutout side of the panel. Adjust the plastic cover in an up/down direction to make the three cutouts on the right side align with the plastic notches. Slightly pull the plastic cover upward. Viasat Business Hotspots Installation Guide Page | 7... -
Page 8: Step 6 | Install Cat5E Cable
Step 7 | Connect the handset Connect one end of the phone cord to the handset. Connect the other end of the phone cord to the handset port on the back of the phone. Viasat Business Hotspots Installation Guide Page | 8... -
Page 9: Step 8 | Install Network Equipment
If the power adapter for the phone was not removed prior to shipment, please remove it and do not provide it to the customer. If the power adapter is used in conjunction with the PoE Injector, it will damage the phone and could pose a potential fire hazard. Viasat Business Hotspots Installation Guide Page | 9... -
Page 10: Step 9 | Basic Network Troubleshooting
Cable run › Bonding point Mount Cable type Any other requested images › › › › Ground source › Point of entry Any additional notes or comments may be added as needed. Viasat Business Hotspots Installation Guide Page | 10... -
Page 11: Step 11 | Review Quick Start Guide With Customer
Step 11 | Review Quick Start Guide with customer A Business Voice Quick Start Guide for the customer is included with the network equipment. Review the guide with the customer to ensure they are aware of key information about their voice network: ›... -
Page 12: Terminating Utp Cable
Terminating UTP cable Viasat Business Hotspots Installation Guide Page | 12... - Page 13 Moving from left to right, arrange the wires in a flat, side-by-side ribbon formation, placing them in the following order: white/orange, solid orange, white/green, solid blue, white/blue, solid green, white/brown, solid brown. Viasat Business Hotspots Installation Guide Page | 13...
- Page 14 Release the handles and repeat this step to ensure a proper crimp. Step 8: Repeat After the first termination is complete, repeat process on the opposite end of your cable. View online at http://www.cableorganizer.com/learning-center/how-to/how-to-terminate-RJ45.htm Viasat Business Hotspots Installation Guide Page | 14...
