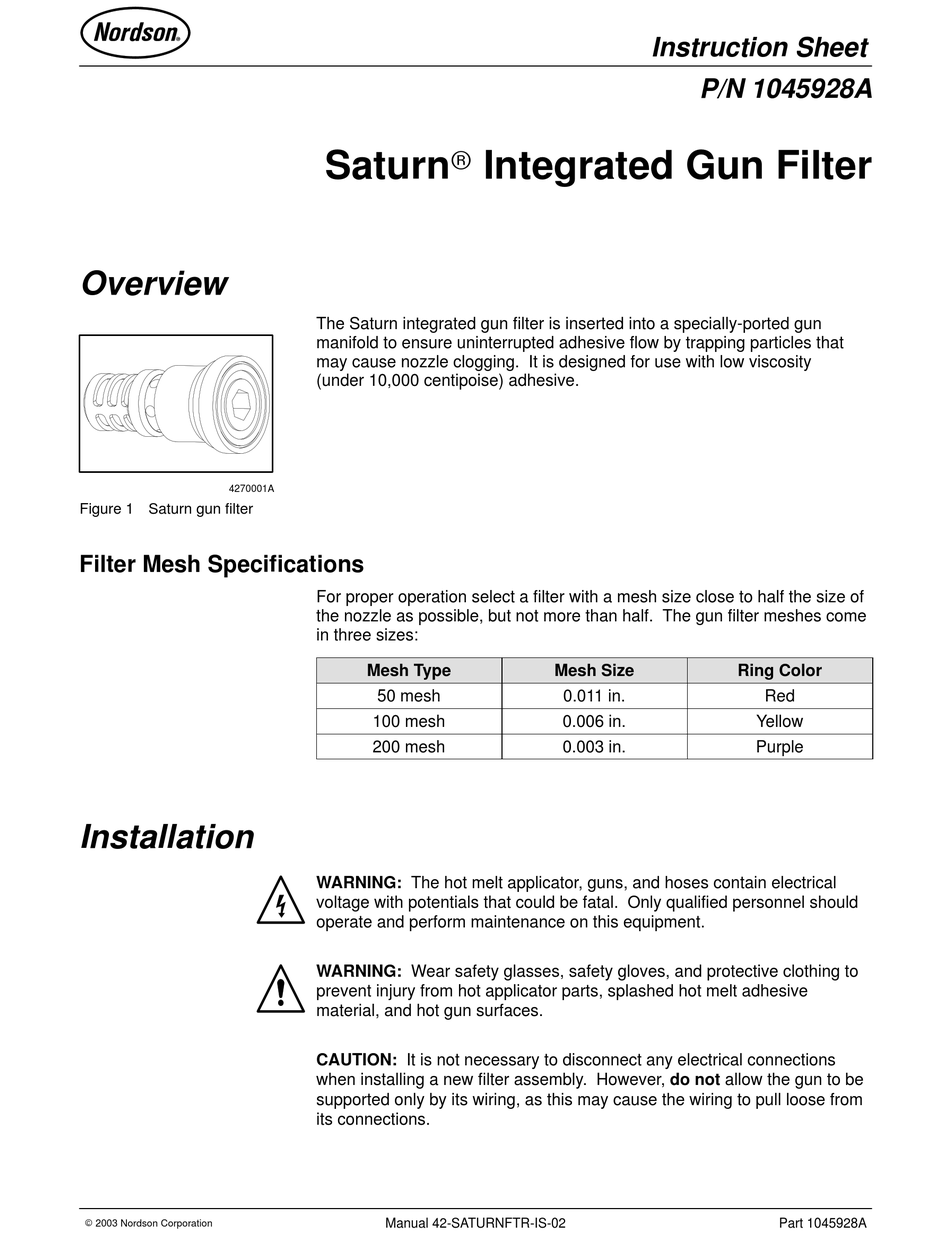

Nordson Saturn 1045928A Instruction Sheet

Overview

4270001A
Figure 1 Saturn gun filter

Filter Mesh Specifications

Installation

E 2003 Nordson Corporation
Saturnr Integrated Gun Filter
The Saturn integrated gun filter is inserted into a specially-ported gun
manifold to ensure uninterrupted adhesive flow by trapping particles that
may cause nozzle clogging. It is designed for use with low viscosity
(under 10,000 centipoise) adhesive.
For proper operation select a filter with a mesh size close to half the size of
the nozzle as possible, but not more than half. The gun filter meshes come
in three sizes:
Mesh Type
50 mesh
100 mesh
200 mesh
WARNING: The hot melt applicator, guns, and hoses contain electrical
voltage with potentials that could be fatal. Only qualified personnel should
operate and perform maintenance on this equipment.
WARNING: Wear safety glasses, safety gloves, and protective clothing to
prevent injury from hot applicator parts, splashed hot melt adhesive
material, and hot gun surfaces.
CAUTION: It is not necessary to disconnect any electrical connections
when installing a new filter assembly. However, do not allow the gun to be
supported only by its wiring, as this may cause the wiring to pull loose from
its connections.
Manual 42-SATURNFTR-IS-02
Instruction Sheet
P/N 1045928A
Mesh Size
0.011 in.
0.006 in.
0.003 in.
Ring Color
Red
Yellow
Purple
Part 1045928A
