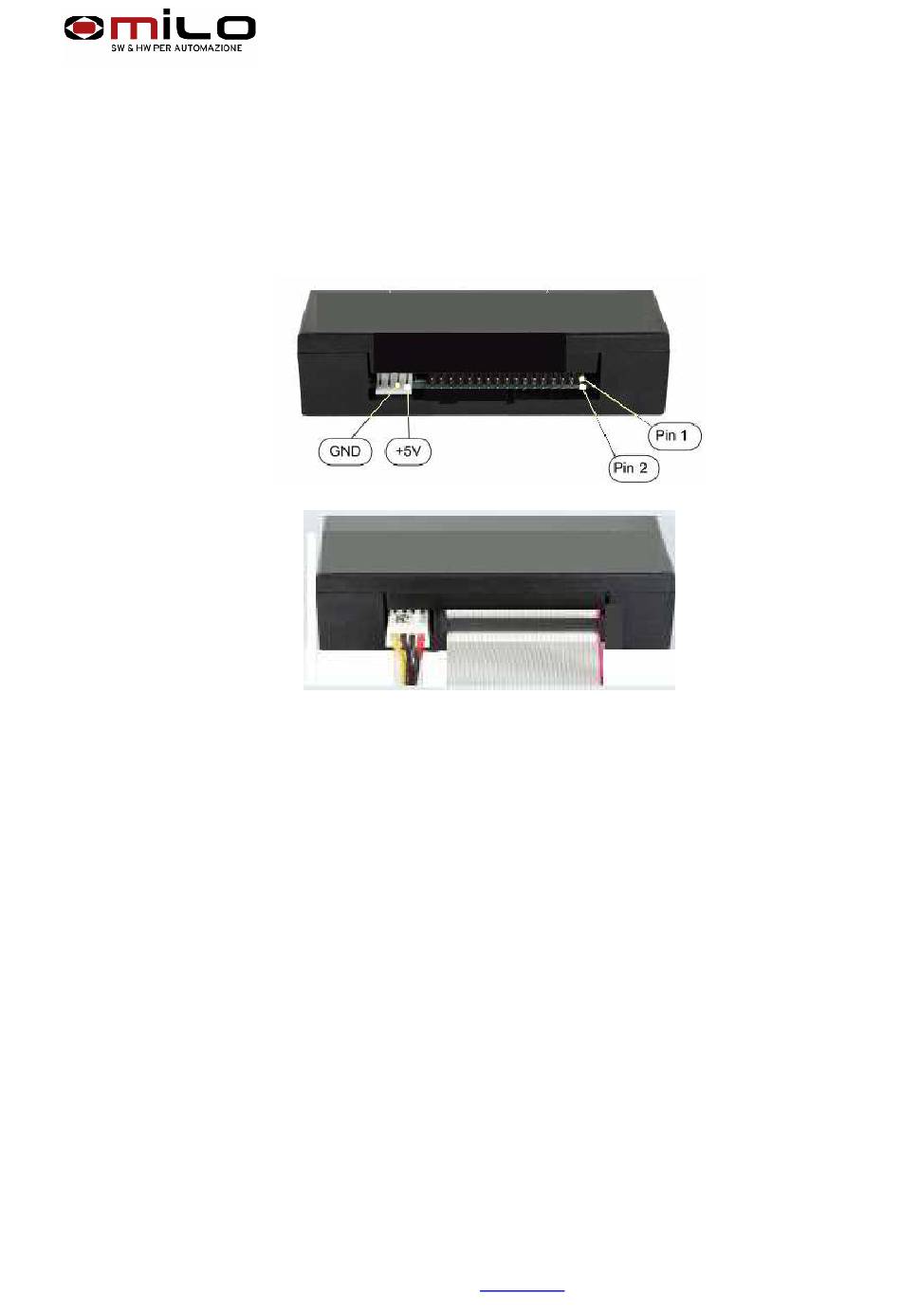

1. Using the floppy emulator EMUFDD VER. 29/30

♦

Power supply and connection of the flat cable of the device

Connect the device as shown in the figure, the pin 1 of the flat is colored blue or red.
The power of the device usually 4 wires, 5 V should be connected as shown.
•
EMUFDD is equipped with F-RAM memory, nonvolatile memory with 1014 cycles
of
writing and reading, compared to 50 years of non stop hits.
•
It is not necessary to keep the USB key inserted
Tel. 059 528512 Fax. 059 520131 E-mail:
EMUFDD_HW_MANUAL
MILO snc
SW & HW per automazione
Via Ruggiero Grieco 1/C 41011 Campogalliano -MO-
Codice Fiscale e P.IVA 03373570369
info@milosrl.it
Web: www.milosrl.it
1
