Summary of Contents for A&D FXi-09

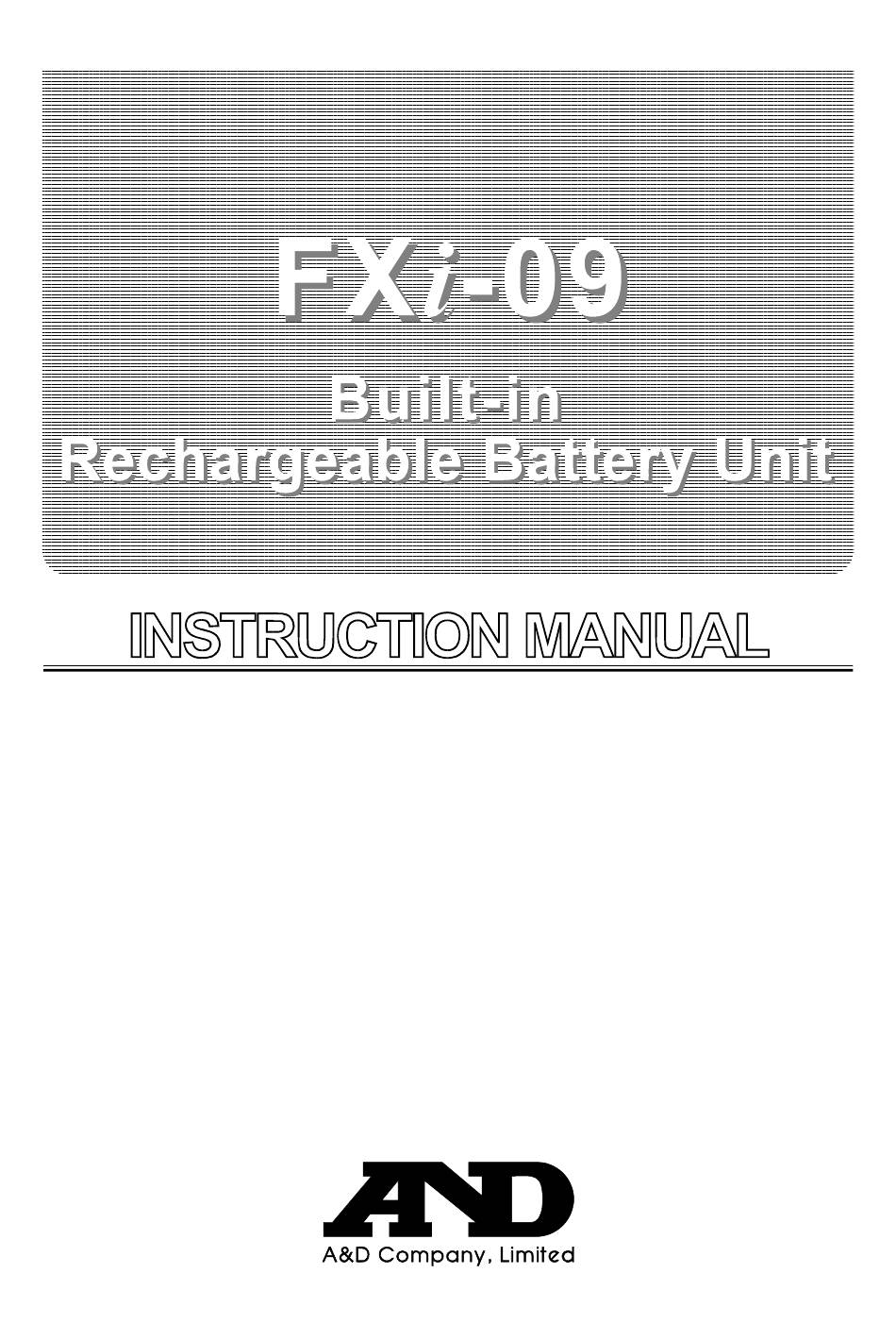

- Page 1 1WMPD4001369...
- Page 2 This is a hazard mark (caution mark). © 2006 No part of this publication may be reproduced, transmitted, transcribed, or translated into any language in any form by any means without the written permission of A&D Company Ltd. The contents of this manual and the specifications of the instrument covered by this manual are subject to change for improvement without notice.
-
Page 3: Warning Definitions
Warning Definitions The warnings described in this manual have the following meanings: Caution A potentially hazardous situation which, if not avoided, may result in minor or moderate injury. It may also be used to alert against unsafe practice. Note An important description for proper use of the instrument. Precautions When handling the balance with the rechargeable battery unit installed, observe the following precautions. -
Page 4: Names Of Each Part
1. Introduction The FXi-09 is a rechargeable battery unit exclusively designed for A&D-manufactured FX-i series balances. Using the FXi-09 , a balance can be operated in a location where an AC power source is not available. The FXi-09 consists of a battery panel and a battery that have been installed into the balance when purchased. -
Page 5: Specifications
Constant current charge with timer function for an automatic stop Battery type Nickel-metal-hydride (Ni-MH) battery 1-3 Notes on Using the FXi-09 The continuous operation hours depend on the operating conditions. During the charging operation, the battery can not be used. - Page 6 1-4 Battery Condition and Operation Below is a list of the battery operation according to the combination of the power switch and AC adapter conditions. For details, read each section on the following pages. Power Operation Description switch adapter The CHARGER LED indicator blinks and charging starts.
-
Page 7: Charging The Battery
2. Charging the Battery Notes Charging the battery before it is completely discharged will shorten the battery life. Charge the battery fully, until the CHARGE LED indicator goes out. This procedure will take about 10 hours. During the charging operation, the battery can not be used. Without the AC Charge the battery as follows: adapter connected... - Page 8 3. Using the Balance Powered by the Battery Use the battery to supply power to the balance as follows: 1. After charging is complete, disconnect the AC adapter from the balance. 2. Turn the power switch on the rear of the balance ON.
- Page 9 4. Using the Balance Powered by the AC Adapter Use the AC adapter to supply power to the balance as follows: The balance can be used powered by the AC adapter even if the battery is depleted. While the balance is used powered by the AC adapter, the battery is not used and charging is not performed.
- Page 10 MEMO...
