Page 1: User Manual

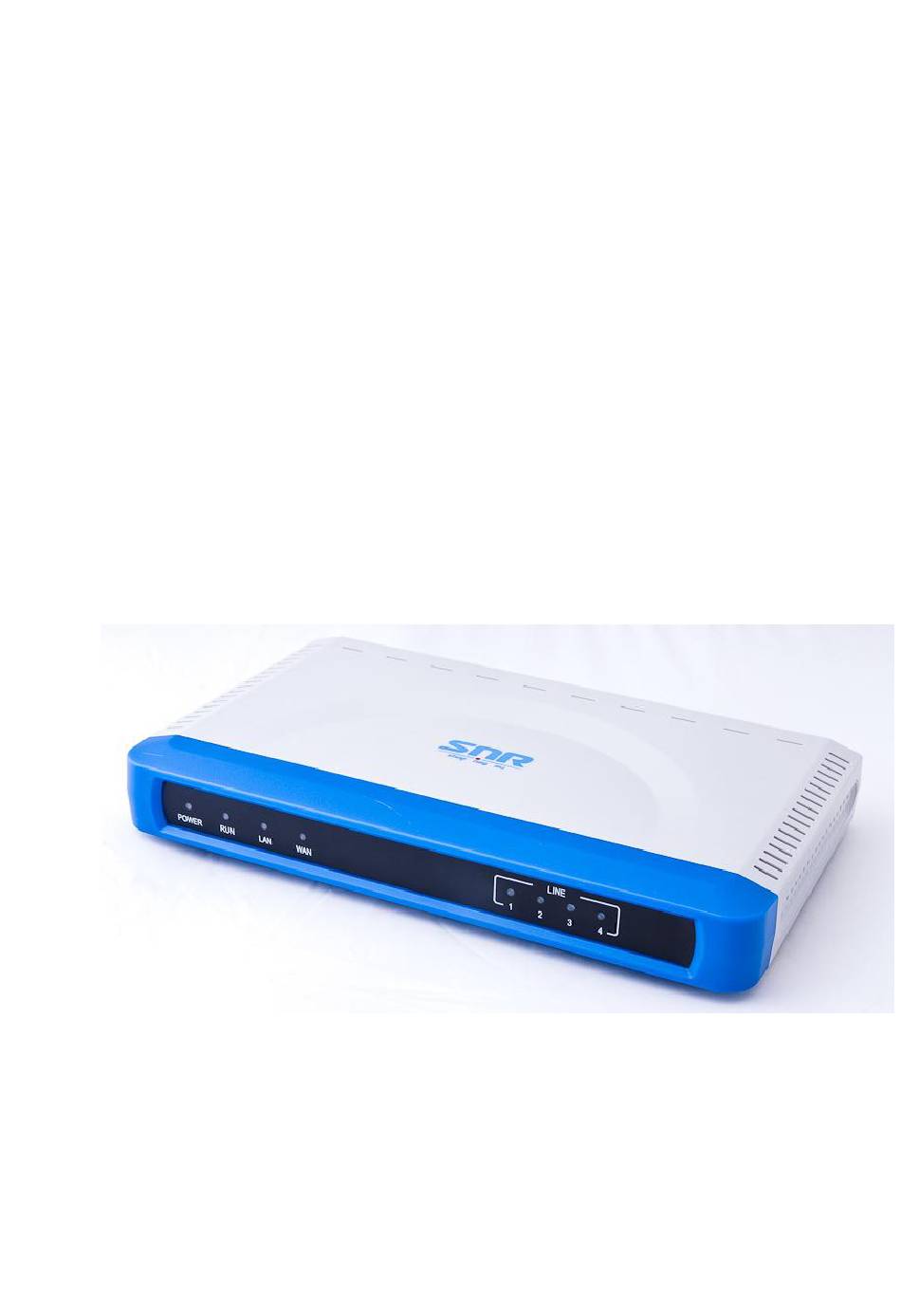

User Manual SNR-VG-60X0 Analog IP Gateway 4 or 8 FXO Ports NAG LLC... -
Page 2: Table Of Contents
Warranty ......................4 PACKAGING ........................ 4 Connect The SNR-VG-60x0 ................4 APPLICATION DESCRIPTION ..................6 Functional Diagram of IP-PBX & SNR-VG-60x0 ..........6 SNR-VG-600x&SNR-VG-60x0 Scenario/Toll- Free Calling Between Locations FEATURES ........................7 Software Features Overview ................7 Hardware Specification ..................9 CONFIGURATION GUIDE ................... -
Page 3: Welcome
VoIP network, and efficiently manages communication costs. This manual will help you learn how to operate and manage your SNR-VG-60x0 Analog IP Gateway and make the best use of its many upgraded features including simple and quick installation, multi-party conferencing, etc. -
Page 4: Warranty
2. Insert the Ethernet cable into the WAN port of SNR-VG-60x0 and connect the other end of the Ethernet cable to an uplink port (a router or a modem, etc.) 3. Connect a PC to the LAN port of SNR-VG-60x0 for initial configuration or if it is being used as a router. - Page 5 Power adapter connection FXO ports to be connected to physical PSTN lines from FXO1 - FXO8 a traditional PSTN PBX or PSTN Central Office. Figure 2: Diagram Of SNR-VG-60x0 Display Panel TABLE 2: Definitions Of The SNR-VG-Display Panel Indicates Power. Power LED Remains ON when Power is connected and turned ON.
-
Page 6: Application Description
SNR-VG-6040 User Manual firmware upgrade is complete when you can login into the web configuration pages. 3 APPLICATION DESCRIPTION Functional Diagram of IP-PBX & SNR-VG-60x0 Copyright © 2012 NAG LLC Page 6 of 25... -
Page 7: Features
Free Calling Between Locations 4 FEATURES SNR-VG-60x0 is a next generation IP voice and video gateway that features full interoperability with leading IP-PBXs, SoftSwitches and SIP platforms. The Gateway series offers superb voice and video quality, traditional telephony functionality, simple configuration, feature rich functionality and an additional video port that enables the gateway to act like a video surveillance gateway. - Page 8 Yes (Detection only). The PSTN lines will need to be Polarity Reversal / Wink subscribed to PR service from the Service Provider. SNR-VG-60x0: EN55022 Class B, CFR Part 15 Class B, Copyright © 2012 NAG LLC Page 8 of 25...
-
Page 9: Hardware Specification
5 CONFIGURATION GUIDE Configuration With Web Browser The SNR-VG-60x0 has an embedded Web server that will respond to HTTP GET/POST requests. It also has embedded HTML pages that allow a user to configure the gateway through any common web browser. -
Page 10: End User Configuration
1. Enable the “WAN Port Web Access” option via IVR option 12. 2. Find the WAN IP address of the SNR-VG-60x0 using voice prompt menu option 02. 3. Access the SNR-VG-60x0 Web Configuration page by the following URI via WAN port: http:// SNR-VG-60x0 -IP-Address (the SNR-VG-60x0 IP-Address is the WAN IP address for the SNR-VG-60x0). -
Page 11: Basic Settings Page
-To use the PPPoE feature, the PPPoE account settings IP Address need to be set. The SNR-VG-600x will attempt to establish a PPPoE session if any of the PPPoE fields have been entered with data. -
Page 12: Super User Settings
This contains the password to access the Web End User Password Configuration Menu. This field is case sensitive. If set to “Yes”, the SNR-VG-600x will respond to the PING Reply to ICMP on WAN command from other computers, but it also is vulnerable port to the DOS attack. - Page 13 Yes This parameter defines the URI or IP address of the NTP server NTP server which is used by the SNR-VG-600x to set the current date/time. Allow DHCP Option 42 If set Yes,device can get NTP server from DHCP option to override NTP server The IP address or URL of System log server.
-
Page 14: Profiles
Profiles are basically IP PBX / SIP Server configuration templates. If you have more than one IP PBX system or SIP Server that you would like to use with the SNR-VG-60x0, then you can configure Profile 1 or 2. Note – Make sure you select the correct profile for each channel under Channels WEBPAGE. - Page 15 If set to “No”, you need configure one port one account in Common Account FXO PORTS page. If set to “Yes”, SNR-VG-60x0 will auto-select an idle Line to make outbound call to PSTN. Auto Select Idle Port If set to “No”, you need configure one port one account in...
- Page 16 5060. The default value for FXS 2 port is 5062. This parameter defines the local RTP-RTCP port pair the SNR-VG-600x will listen and transmit. It is the base RTP port for channel 0. When configured, channel 0 will use this Local RTP port port _value for RTP and the port_value+1 for its RTCP;...
- Page 17 NAT IP address used in SIP/SDP message. Default is USE NAT IP blank. The SNR-VG-600x supports up to 5 different Vocoder types including G.711 A-/U-law, G.726 (Supports bit rates 32K), G.723.1, G.729A/B. The user can configure Vocoders in a preference list that will be included with the same Preferred Vocoder preference order in SDP message.
- Page 18 SNR-VG-6040 User Manual respectively. This defines the encoding rate for G723 vocoder. By default, G723 Rate 6.3kbps rate is chosen. Default is No. VAD allows detecting the absence of audio and conserve bandwidth by preventing the transmission of "silent packets" over the network.
- Page 19 SNR-VG-6040 User Manual Explanation of example rule (reading from left to right): ^1900x. - prevents dialing any number started with 1900 <=1617>[2-9]xxxxxx - allows dialing to local area code (617) numbers by dialing 7 numbers and 1617 area code will be...
- Page 20 SNR-VG-6040 User Manual Default is NO. As a Caller, select UAC to use the device as the refresher, UAC Specify Refresher or UAS to use the Callee or proxy server as the refresher. Default is Omit As a Callee, select UAC to use caller or proxy server as the UAS Specify Refresher refresher, or UAS to use the device as the refresher.
-
Page 21: Configuring The Fxo Channels
PIN for VOIP Calls default is no. 5.3.3 Configuring The FXO Channels Configuring the FXO channels on the SNR-VG-60x0 is an easy process. Follow the GUI interfaces. The Device Status page terms are defined in FXO Ports page FXO PORT SETTING Copyright ©... - Page 22 Can be identical to or different from Authenticate ID SIP User ID. SIP service subscriber’s account password for Password SNR-VG-600x to register to (SIP) servers of ITSP. Name Name Profile ID Select the corresponding Profile ID (1/2) Calls are unconditionally forwarded to the specified...
-
Page 23: Saving The Configuration Changes
Once a change is made, press the “Update” button in the Configuration Menu. The SNR-VG-60x0 will display the following screen to confirm that the changes have been saved. To activate changes, reboot or power cycle the SNR-VG-60x0 after all changes are made. -
Page 24: Firmware Upgrade
To configure the TFTP server via the Web configuration interface, open up your browser to point at the IP address of the SNR-VG-60x0. Input the admin password to enter the configuration screen. From there, enter the TFTP server address in the designated field towards the bottom of the configuration screen. -
Page 25: Restore Factory Default Settings
1. Factory Reset will be disabled if the “Lock keypad update” is set to “Yes”. 2. Please be aware by default the SNR-VG-60x0 WAN side HTTP access is disabled. After a factory reset, the device’s web configuration page can be accessed only from its LAN port.
