Ikelite DLM 8" Dome Port Instructions

DLM 8" Dome Port
Item number 5516.81

Included in the Box

•
Dome port
•
Dome shade # 5510.04 (installed)
•
Securing thumbscrews (set of 3) # 9249.6 (installed)
•
Neoprene front cover # 0200.82 (installed)
•
Neoprene rear cover # 0200.83 (installed)
•
Silicone lubricant # 0184.1

Important Notices

»
Do not use alcohol, cleaning agents, spray lubricants,
Rain-X, or other solvents on the housing or lens port.
Use of an incompatible chemical compound can
damage the plastic or component o-rings, which may
result in leaking.
»
DO NOT over-tighten the Dome Shade Set Screws
or you may damage the shade. Over-tightening is
identified by bending of the shade base away from
the port around each set screw. Slowly tighten the set
screws so they just make contact in the recessed areas
and are snug against the port.

Installation and Use

Installing the Dome Port

1. Attach the lens to the camera.
2. Check that the port sealing surface is clean and free of
debris.
3. Apply a very thin, even layer of lubricant to the exposed
portion of the housing's front o-ring and to the lens port
sealing surface. Avoid dry spots or uneven build-up of
lubricant.
4. Loosen the three securing thumbscrews on the port.

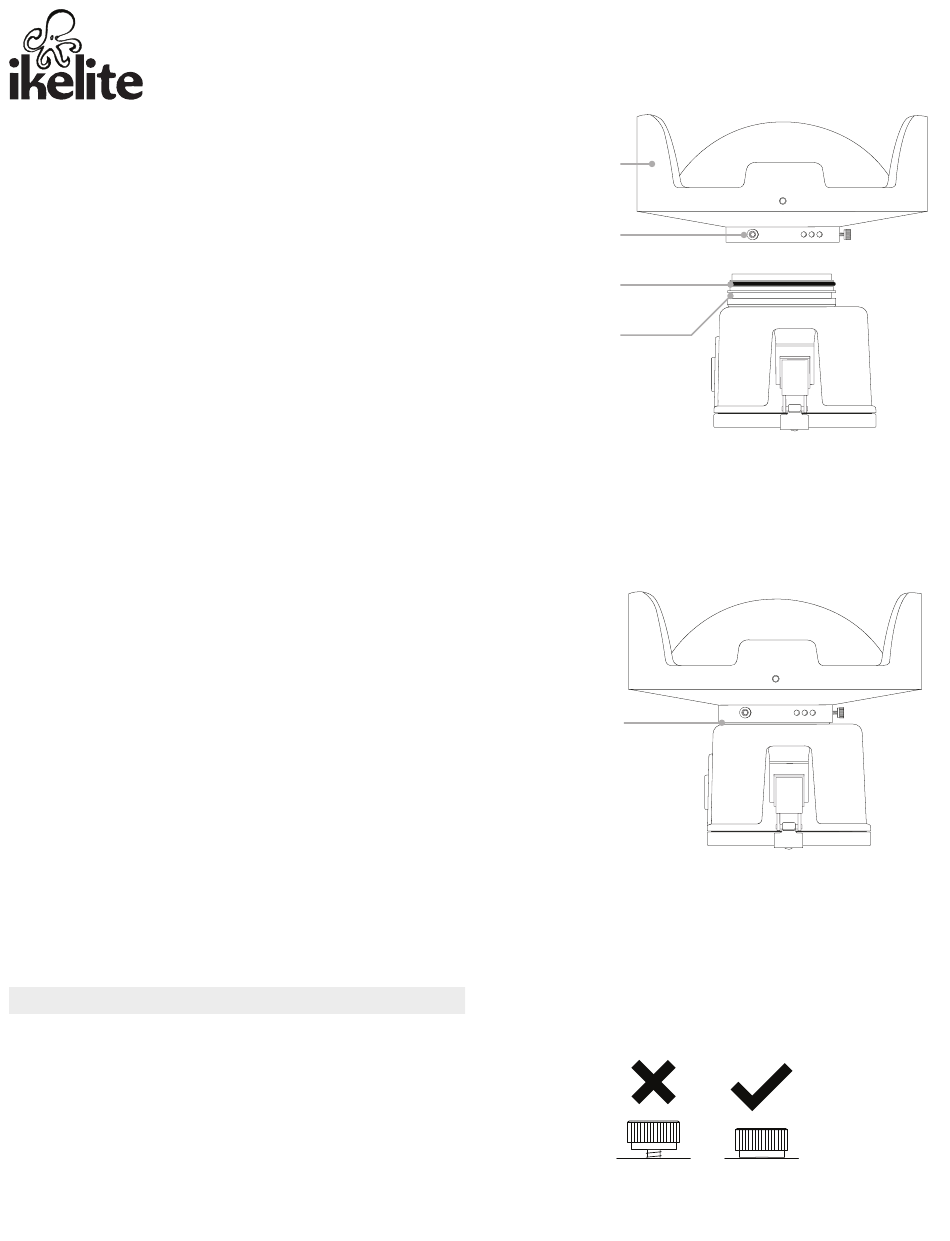

5. Align the port so that the taller projections on the dome
shade are in the 12 and 6 o'clock positions.
Shade
Thumbscrew
O-ring
Thumbscrew
groove
6. Press the port firmly towards the housing until the base of
the port is almost flush with the housing front. If there is
resistance, remove the port and re-check that the
thumbscrews are loosened and that the o-ring is properly
lubricated.
Small gap
~ 0.15" / 4mm
7. Tighten all three thumbscrews while holding the port
firmly towards the housing. The thumbscrews should
thread in completely until the head touches the port. If the
screws are difficult to turn and/or they bottom out before
their heads are flush, it is an indication that the port is not
pushed far enough down on the housing.
