08177 TAPPING ATTACHMENT KIT
For use on Hougen Drill Models HMD904 & HMD905
The 08177 Kit is used to install a Tapping Attachment onto a "Slot Drive" spindle. The Slot Drive assembly will have
One 5/16-18 x 3/8 set screw (Fig.1) at the top of the arbor body.
1
3

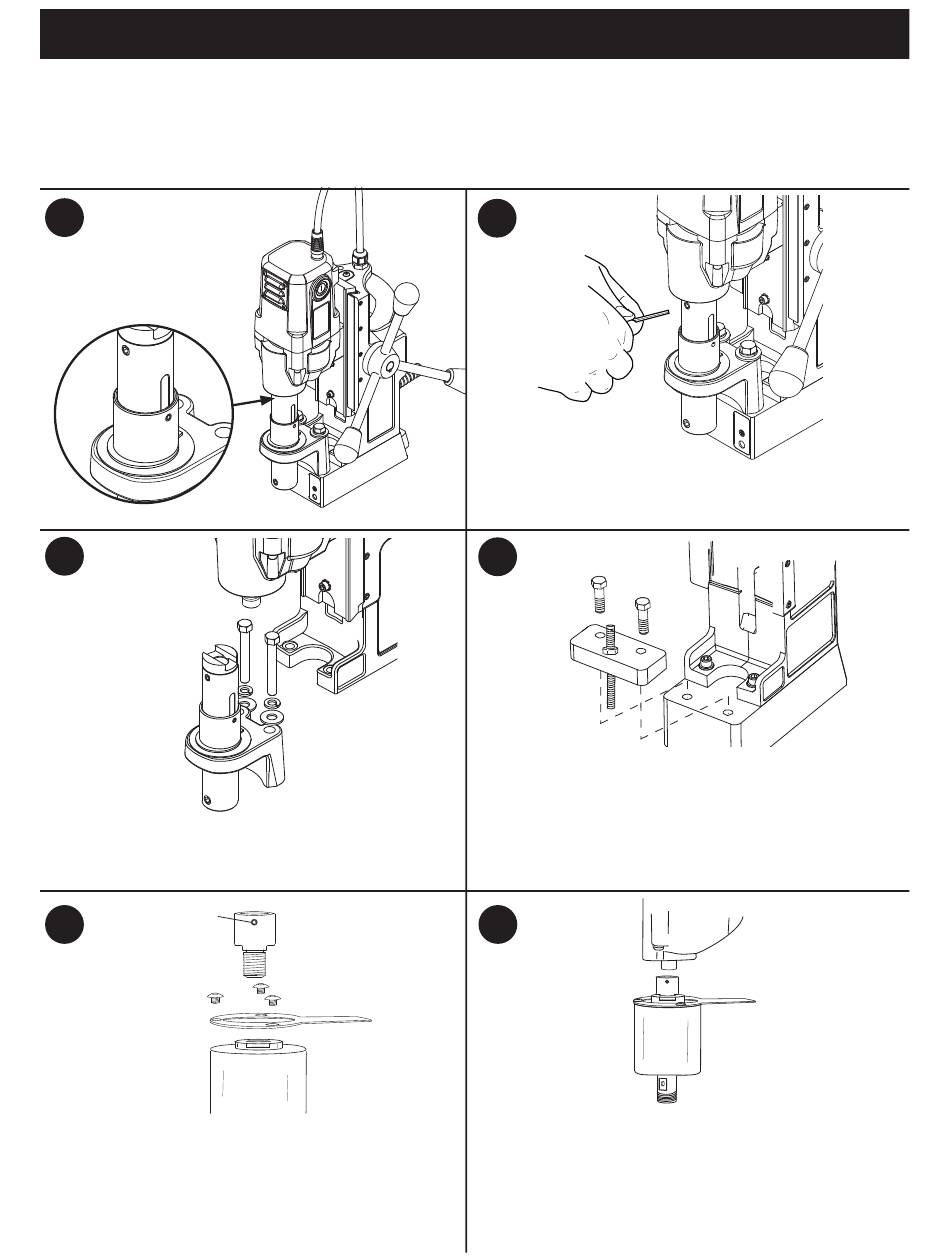

Remove both 3/8-24 Hex Bolts from the Front Support
Bracket using a 9/16" Wrench.
5/16-18 x 3/8
5
Set Screw
Install the Stop Arm to the Tap-Matic Assembly with
the 3 Button Head Screws supplied with the Tap-Matic.
Thread the Slot Drive Adapter into the top of the
Tap-Matic Assembly and install the 5/16-18 x 3/8 Set
Screw into the side of the Slot Drive Adapter.
2
Remove the 5/16-18 x 3/8 set screw from the top of the
Arbor Body with a 1/8" Hex Wrench.
4
Install the 1/4-20 x 2-1/2 Set Screw and 1/4-20 Lock
Nut into the Stop Block as shown. Mount the Stop
Block Assembly to the Magnet with the supplied 3/8-
24 Hex Bolts and tighten with a 9/16 Wrench.
6
Slide the Slot Drive Adapter and Tap-Matic Assembly
up onto the Motor Spindle at the base of the Motor.
While holding the Assembly up, tighten the 5/16-18 x
3/8 Set Screw supplied with the Kit.
