GEM SHORT BED WITH SIDES KIT Quick Start Manual

Hide thumbs

SHORT BED WITH SIDES KIT

P/N 2882432

APPLICATION

2016 or newer GEM E2, E4, E6

Verify accessory fitment at Polaris.com.

BEFORE YOU BEGIN

Read these instructions and check to be sure all parts and tools are accounted for.

Please retain these installation instructions for future reference and parts ordering

information.

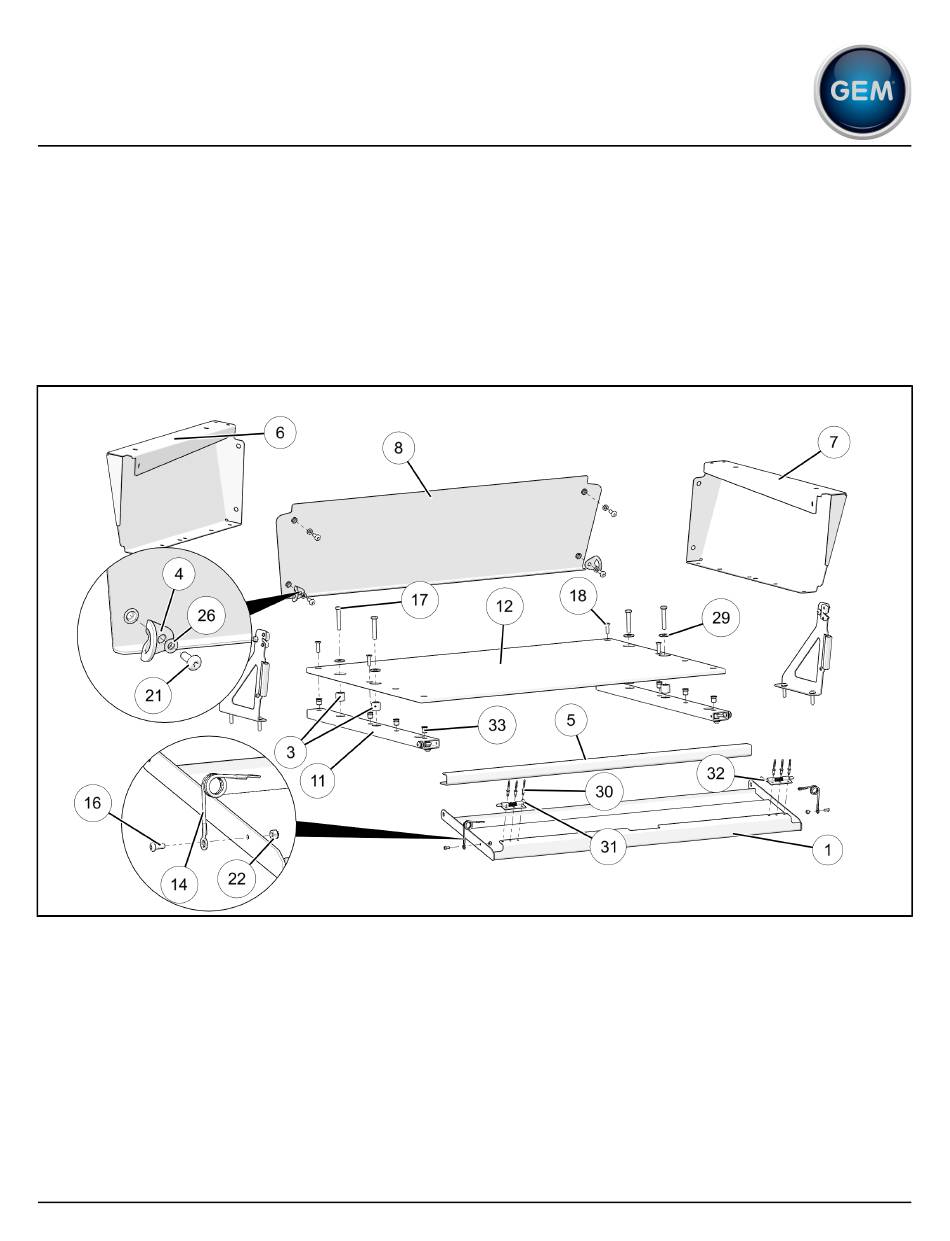

KIT CONTENTS

This Kit includes:

Instr 9927693

Rev 01 2016-08

Page 1 of 7

Table of Contents

Need help?

Do you have a question about the SHORT BED WITH SIDES KIT and is the answer not in the manual?

Questions and answers

Summary of Contents for GEM SHORT BED WITH SIDES KIT

Page 1 SHORT BED WITH SIDES KIT P/N 2882432 APPLICATION 2016 or newer GEM E2, E4, E6 Verify accessory fitment at Polaris.com. BEFORE YOU BEGIN Read these instructions and check to be sure all parts and tools are accounted for. Please retain these installation instructions for future reference and parts ordering information.
Page 2 PART DESCRIPTION PART NUMBER Tailgate 1022964 Latch 2634781 Spacer. Short 5140892 Bracket, Tie-down 5262121 Bracket, Support 5263190 Bracket, Side, LH 5263548 Bracket, Side, RH 5263549 Bracket, Front 5263550 Bracket, Brace, Side, LH 5263551 Bracket, Side, RH 5263552 Tube 5340115 Panel 5453664 Seal, 100mm 5522209–100...
Page 3 • Wrench Set, SAE IMPORTANT Your Short Bed with Sides Kit is exclusively designed for your vehicle. Please read the installation instructions thoroughly before beginning. Installation is easier if the vehicle is clean and free of debris. For your safety, and to ensure a satisfactory installation, perform all installation steps correctly in the sequence shown.
Page 4 2. Line up tubes with tailgate as shown. Insert 4. Attach side elements to back element 2& spacers onto bolt . Hold spacer by installing screws through washers place and install bolt assembly into tailgate. Install upper nut inserts and through washer and tie- onto bolt, counter-hold nut and torque to down bracket...
Page 5 7. Set upper assembly onto tailgate assembly 9. Bolt assembled brackets to the base using two ensuring bolt holes line up. Install four rear screws bolts and two washers . Torque bolts to specification. into panel and hand tighten screws. TORQUE 8 ft.
Page 6 11. Close tailgate and adjust box to desired width. 14. Attach cables to brackets with bolts Counter-hold nut and torque bolts and nuts . Ensure cable eyelet is attached to specification. outside of bracket as shown. Do not tighten bolts at this time.
Page 7 17. Set assembly on rear cover of vehicle and align holes. 18. Install four screws and washers . Torque screws to specification. TORQUE 27 ft. lbs. (37 Nm) 19. Close tailgate. Instr 9927693 Rev 01 2016-08 Page 7 of 7...
