insys icom i-modul Manual

I-modul and socket
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Evaluation Board
i-modul and Socket

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the i-modul and is the answer not in the manual?

Questions and answers

Summary of Contents for insys icom i-modul

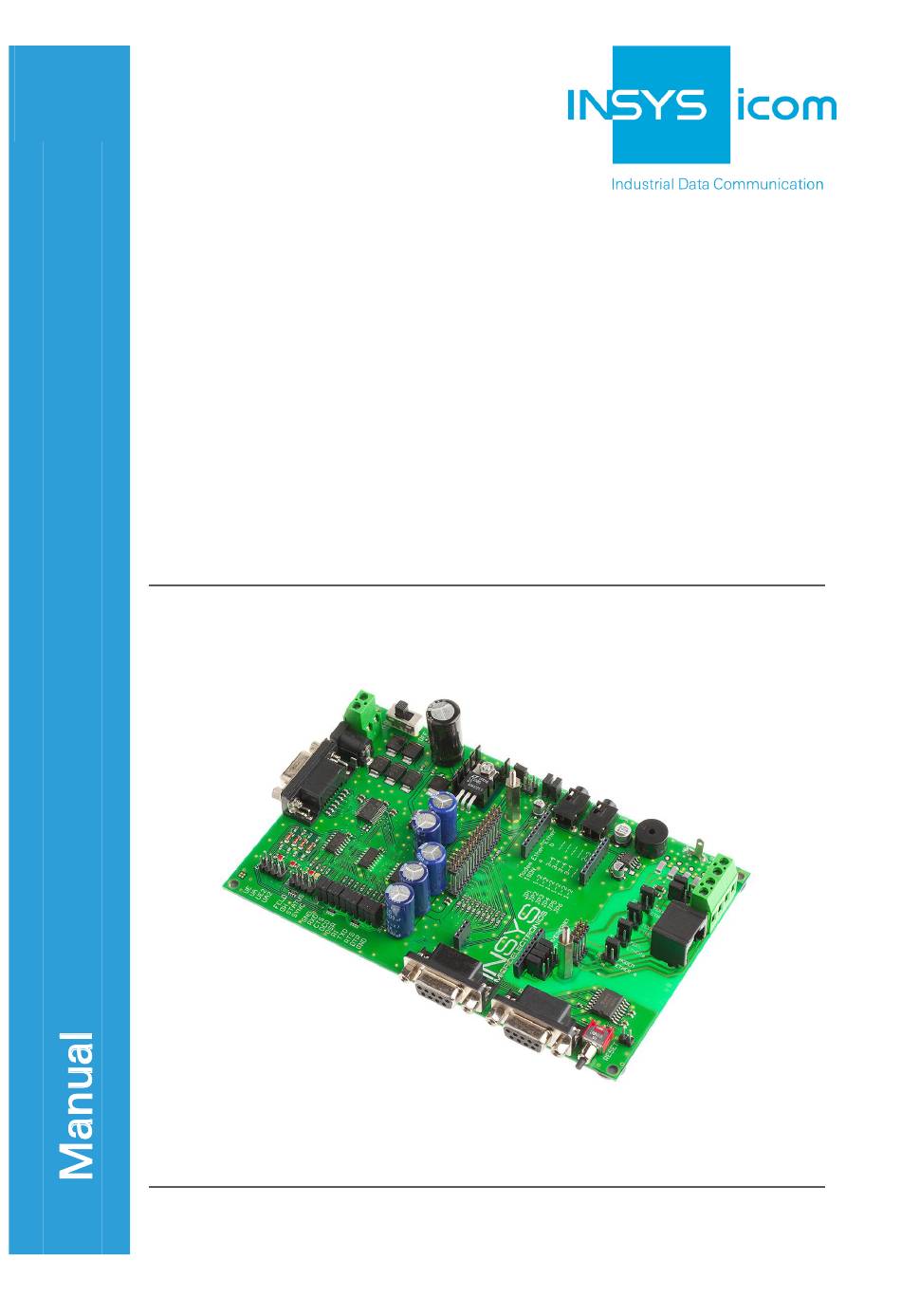

  • Page 1 Evaluation Board i-modul and Socket...
  • Page 3 Copyright © March 14 INSYS MICROELECTRONICS GmbH Any duplication of this manual is prohibited. All rights on this documentation and the devices are with INSYS MICROELECTRONICS GmbH Regensburg. Trademarks The use of a trademark not shown below is not an indication that it is freely availa- ble for use.

  • Page 4: Table Of Contents

    Content Overview ....................5 Technical Specification ................6 Connectors ......................6 Multi-pin connectors ................... 6 Jumpers ......................7 Initial operation ..................8 Configuration of i-modules .................. 9 Configuration of Socket mode ................10 Step-by-step inital operation instructions ............10 Evaluation Board and module plug ports ..........11 Circuit diagram ..................

  • Page 5: Overview

    Overview The Evaluation board is intended to be used for customer specific implementations and tests for the following INSYS i-modul and INSYS socket products:  Modem  ISDN  GSM  EDGE  HSPA  Ethernet  GPRS  WLAN ...

  • Page 6: Technical Specification

    Technical Specification Fehler! Kein Text mit angegebener Formatvorlage im Dokument. Technical Specification Dimensions: 160mm x 100mm Power supply: 9 VAC - 12 VAC 10 VDC - 15 VDC Current drain: max. 1.5A (Peak at GSM) max. 0.3A (ISDN, Modem, Ethernet, WLAN) Connectors CON401 Screwing terminal for power supply...

  • Page 7: Jumpers

    Jumpers Setting for i-modul (Pin assignment) Setting for i-modul (Pin assignment) Setting for i-modul (Pin assignment) Setting for i-modul (Pin assignment) Setting for i-modul (Pin assignment) Setting for i-modul (Pin assignment) Microphone supply JP100 Jumpers for serial interface Jumper for on-board speaker...

  • Page 8: Initial Operation

    Initial operation Fehler! Kein Text mit angegebener Formatvorlage im Dokument. Initial operation In principle there is a difference in configuration of i-modules and socket modules. Depending on the plugged-on module the correct jumper settings must be checked before switching on the evaluation board. Warning! With voltage not adjusted properly the is danger of overheating of components..

  • Page 9: Configuration Of I-Modules

    Configuration of i-modules Use jumpers J1-J6 and JP9 (bridged = 5V) if you want to configure an i-modul Mo- dem/ISDN or an i-modul Ethernet/WLAN bridge. The jumper settings for i-modul Modem correspond to the jumper settings for i- modul ISDN.

  • Page 10: Configuration Of Socket Mode

    Please follow these steps when plugging on a new i-modul or socket module: 1. Plug on the module carefully. 2. Configure the modul type with jumpers JP1 – JP6 and JP9 (i-modul and socket) respectively JP10 – JP13 (socket only).

  • Page 11: Evaluation Board And Module Plug Ports

    Evaluation Board and module plug ports Port for i-modules  144/336/56k  GSM  GPRS  Bluetooth  Ethernet  WLAN...
  • Page 12 Evaluation Board and module plug ports Fehler! Kein Text mit angegebener Formatvorlage im Dokument. Port for i-modul  ISDN HIT  ISDN HIX Note The bolt has to be removed before plugging on the module.
  • Page 13 Port for socket mod- ules...

  • Page 14: Circuit Diagram

    Circuit diagram Fehler! Kein Text mit angegebener Formatvorlage im Dokument. Circuit diagram...
  • Page 16 Circuit diagram Fehler! Kein Text mit angegebener Formatvorlage im Dokument.
