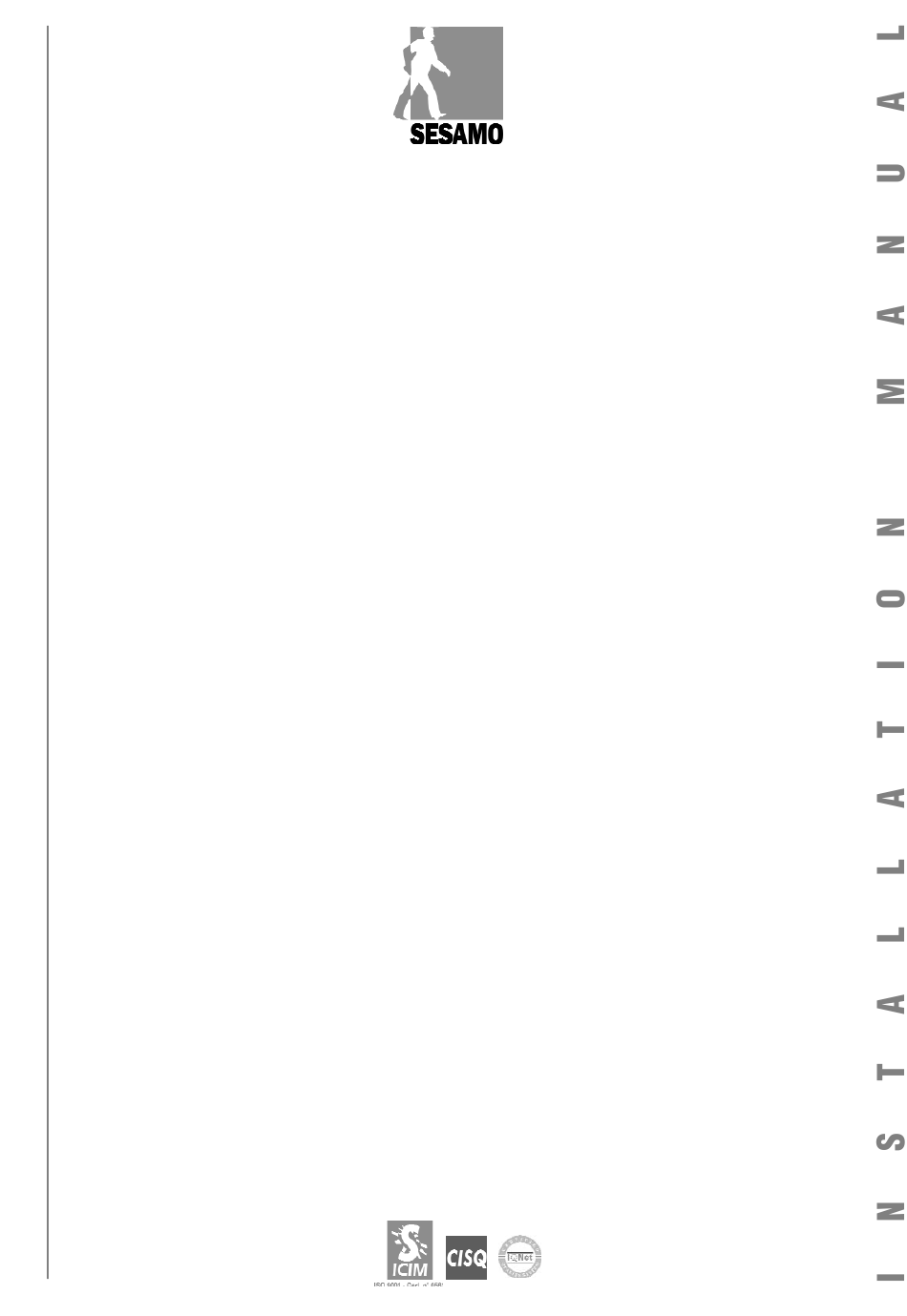

- Page 1 MILLENNIUM ADVANCED SELECTOR...
- Page 2 Machines directive uct. In order to obtain the best performance from According to directive 98/37/EC, the installer that the automatism, the Sesamo Company recom- motorizes a door becomes the builder of the mends that you carefully read and follow the...
- Page 3 Fastening and arrangement of the casing The Millennium Advanced Logics Selector has been designed to be connected with SESAMO automatisms of the Millennium series. It is usually fastened to a suitable support near the automatic entrance. To perform the fastening to a wall proceed as follows: •...
-
Page 4: Electric Connections
Description Selection button for Active operation logic operation logics led indicators Reset key LCD Display Functions menu EXECUTE Key Functions menu Functions menu SCROLL DOWN Key SCROLL UP Key Electric Connections One advanced selector can be connected simultaneously to several electronic cards up to a maximum of 15. When the Multi Slave mode is active, every single door connected can be controlled individually. -
Page 5: Functions Menu
Use of the advanced selector EXIT-ONLY RADAR ENTRY-EXIT RADAR PARTIAL EXIT-ONLY RADAR PARTIAL ENTRY-EXIT RADAR STOP OPEN STOP CLOSE With the advanced selector it is possible to select the following operation logics of the automatism: • Stop Close: the automatism controls the complete closure of the door wings. In this logic the inputs START1 and START2 of the electronic control card are not monitored;... - Page 6 The menus are structured in a hierarchical manner, and thus each menu may contain submenus; each time the user exits from a submenu he enters the immediately previous menu in the hierarchical scheme. Arrows of this type indicate that it is possible to scroll through the menu both with the SCROLL UP key and with the SCROLL DOWN key.
- Page 7 (Management Menu continued) Indicates the value currently set Language Choice Menu (1.1) Permits the user to select the language used in the functions menu.
- Page 8 Parameter Adjustment Menu (1.2) Permits the user to adjust some operational parameters: • Opening Speed. Setting range 10 ÷ 70 cm/sec. Default value 70 cm/sec. • Closing Speed. Setting range 10 ÷ 50 cm/sec. Default value 50 cm/sec. • Idle Time. Represents the idle time after an opening manoeuvre before starting the closure. Setting range 0 – 120 sec.
- Page 9 Set-up Menu (1.3) Indicates the value currently set The SET DEFAULT menu allows the reset of all parameters to the original factory values. Battery Menu (1.3.1) When the control centre is battery powered and the power level is too low, it is necessary to stop the operation of the automatism;...
- Page 10 Interblock Menu (1.3.3) Permits the user to configure the automatism in MASTER or SLAVE mode in the interblocked operation. The submenu SIGNAL MEMORY permits the user to use the special interblock version. (Soon to be activated.) Indicates the value currently set Multi Slave Menu (1.3.4) This menu per- mits to activate...
- Page 11 MillenniumWare PC connection software (ask Sesamo for further details). To access the service menu it is necessary to input the Installer Password.
- Page 12 • Service Data Menu. Permits the user to input the name and telephone number of the service center: to input the name or the telephone number use the SCROLL DOWN and SCROLL UP keys to position on the desired letter/num- ber;...
- Page 13 I/O Menu (1.3.8) Indicates the value currently set Indicates the value currently set The I/O Menu permits the user to configure the inputs and outputs of the control center; in particular, it is possible to define the electric state of each input: Normally Open or Normally Closed independently of the Default condition.
- Page 14 NOTE: the maximum output current is 100 mA. If this output is used to drive a relay, pay attention to the current absorbed and add a protection diode in parallel with the relay coil as shown in the figure: Protection diode Relay coil The Signal Menu permits the user to select when the output signal is active;...
- Page 15 Select the event to be set; the second line indicates if the event has already been set (ACTIVATED) or not (DEACTIVATED). A maximum of four events may be set. For each event it is possible to set: • STATE: indicates if the event is activat- ed or not •...
- Page 16 - is asked to specify to which door, among those connected to the selector, the successive commands will apply. SESAMO srl Str. Gabannone, 8/10 • 15030 Terruggia (AL) • Italy Tel: +39 0142 403223 • Fax: +39 0142 403256 • www.sesamo.org • E-mail: info@sesamo.org...
