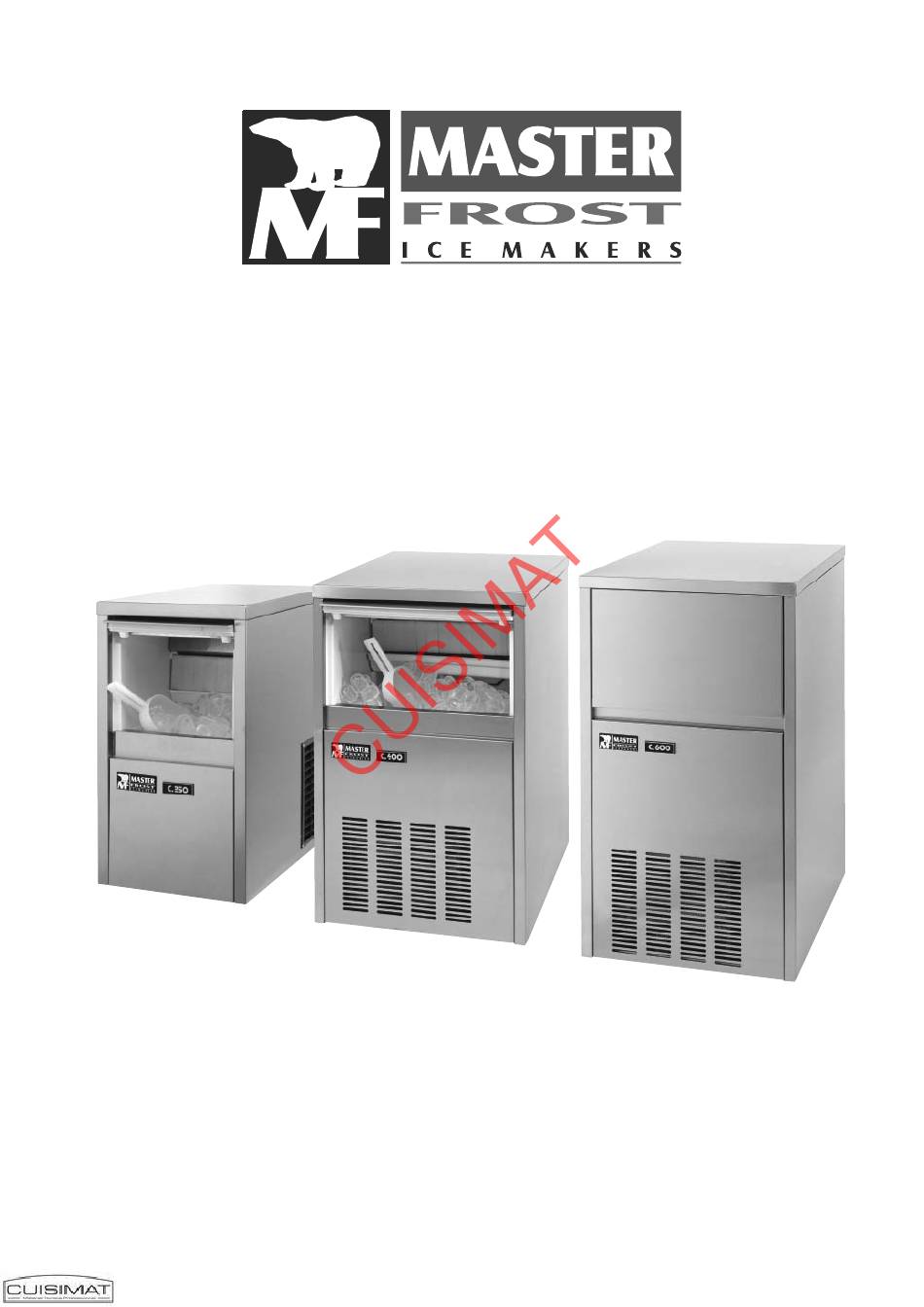

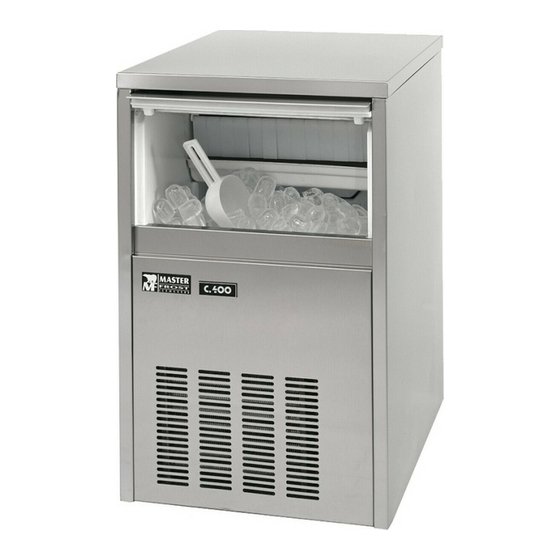

- Page 1 C-250 - C-400 - C-600 INSTRUCTION MANUAL ICE CUBES MACHINE (including: exploded views, part list & diagrams) Art.no.: *706.025 / *706.040 / *706.060...
-
Page 2: Table Of Contents
But you can also ask for installation, help or be advised by authorized personnel from the merchandiser you bought this product. This icemaker is a Greek product and has been manufactured form Master Frost having its principal offi ce in Lamia-Greece. …Please also consider that you must always ask for the European Conformities mark-com- pliance with E.U. -
Page 3: Installation
The power supply will be connected with the icemaker MUST have its own fuse as you in fi gure 1. fi g.1 The fuse must be: For the icemakers C-250/C,M-300/C, M-400/C, M-600/ C, M-800 10 Amps For the icemakers C, M-1200/C, M-1600/C, M-2800 16 Amps fi... - Page 4 INSTALLATION Inside the plastic bag you should fi nd everything you need to start produce ice… Lift the icemaker from one side, about 25 cm from the ground, and place its feet. Same do from other side. Back of the icemaker you will fi nd an inlet and outlet water. Place one side of granular pipe in outlet in outlet of icemaker and the other side to the drain of store –home.
-
Page 5: Operation
OPERATION Your icemaker has been adjusted from the factory to function after installation, without any other need of technician. But here you’ll fi nd how to make adjustment to your icemaker. Please note the adjustments are so easy to be done without the need of technical knowl- edge. -
Page 6: Tips
TIPS For having best performance of your icemaker, you should clean once a month its condenser, mostly in summer time. The condenser is behind the front cover. Clean it with UP and DOWN movements ONLY!! Do not supply your icemaker with water from a tanker, which is exposed to the sun. - Page 7 TIPS If you decide to scrap your icemaker, please proceed as follows: 1. First disconnect power cord and cut wire from the point it comes out of the icemaker. 2. Dispose all materials to each kind. 3. Make sure refrigerant coolant coolant and oil from compressor, are not escaping to environment.
-
Page 8: Troubleshootings
TROUBLE SHOOTINGS Check the plug – if there is any power. Check for short circuit – check fuses The icemaker doesn’t work Check if the storage is full of ice. If so remove ice to perform production. Check the sliding conveyor. It might have remove from its position and prevent ice to fall in the storage by keeping it in the Water storage (behind fl... -
Page 9: Warranty
When the product is delivered the sales distributor should fi ll in the invoice tax document the icemaker’s serial number and date of purchase and give a copy to Master Frost SA. If the document cannot be presented then other evidence is required to validate the warranty. -
Page 10: Name And Code Of Spare Parts
NAME AND CODE OF SPARE PARTS Technical data Model C-250 (706.024) C-400 (706.040) C-600 (706.060) Production / 24Hr. 25 Kg 40 Kg 60 Kg Height mm 580 mm 750 mm 840 mm Width mm 335 mm 485 mm 485 mm... - Page 11 ELECTRIC DIAGRAM Water inlet electric valve Water pump C) Compressor D) Compressor starting relay Thermal overload Electric fan G) Plug H) Terminal block Timer Bin thermostat Evaporator thermostat Electric distribution box M) Pressostat BLUE BLACK GREEN WHITE BLUE DARK BROWN YELLOW/GREEN WATER CIRCUIT DIAGRAM 071009...
