Local Control Network LCN-GT10D Installation Manual

Installation guide
Glass touch- keypad with 10 keys, 2,8" TFT- colour display, timer switch and
temperature sensor

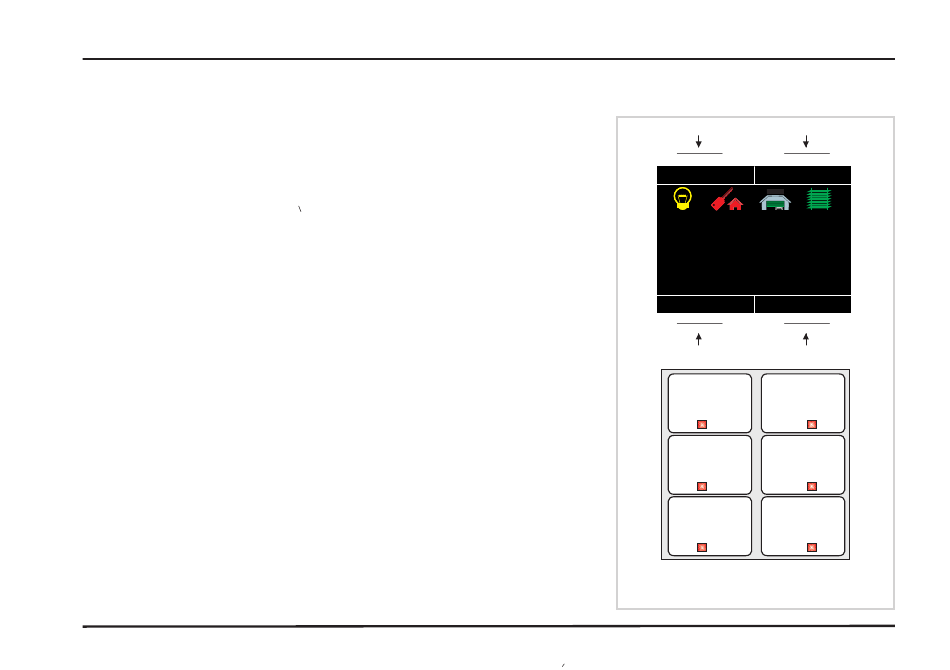

The LCN-GT10D is a 10-key glass touch-keypad with
display for the I-port of any LCN module with version
140719 (Juli 2010) or after. It is suitable for temperature
regulation, due to it´s intregated temperature sensor.
®
A Corona surrounding light with white LED´s, serves as
a decorative accent lighting and as a discreet
orientation light, so that the LCN-GT4D can be comfor-
tably operated even with a low environmental light.
Apart from that, the bottom 6 keys D1..D6 are supplied
with a blue background light. Each of the 6 keys has an
integrated status LED that can be individually controlled or
react to status messages.
The 4 capacitive working sensor keys are situated behind
a 5 mm thick glass front. A slight touch on the surface
area is enough to trigger off the functions.
The inscriptions on the bottom 6 sensor keys are carried
out individually per inlay - changeable at any time without
difficulty.
Local Control Network
LCN-GT10D ®
X1 X2
window OPEN/CLOSE Auto ON/OFF
GARAGE
Mo 31.12.2019 11:55:59
shutter automatic on
outside temperature 17,4°C
temp. - temp. +
X3 X4
D1 D2
L1 L2
D3 D4
L3
L4
D5 D6
L5 L6
