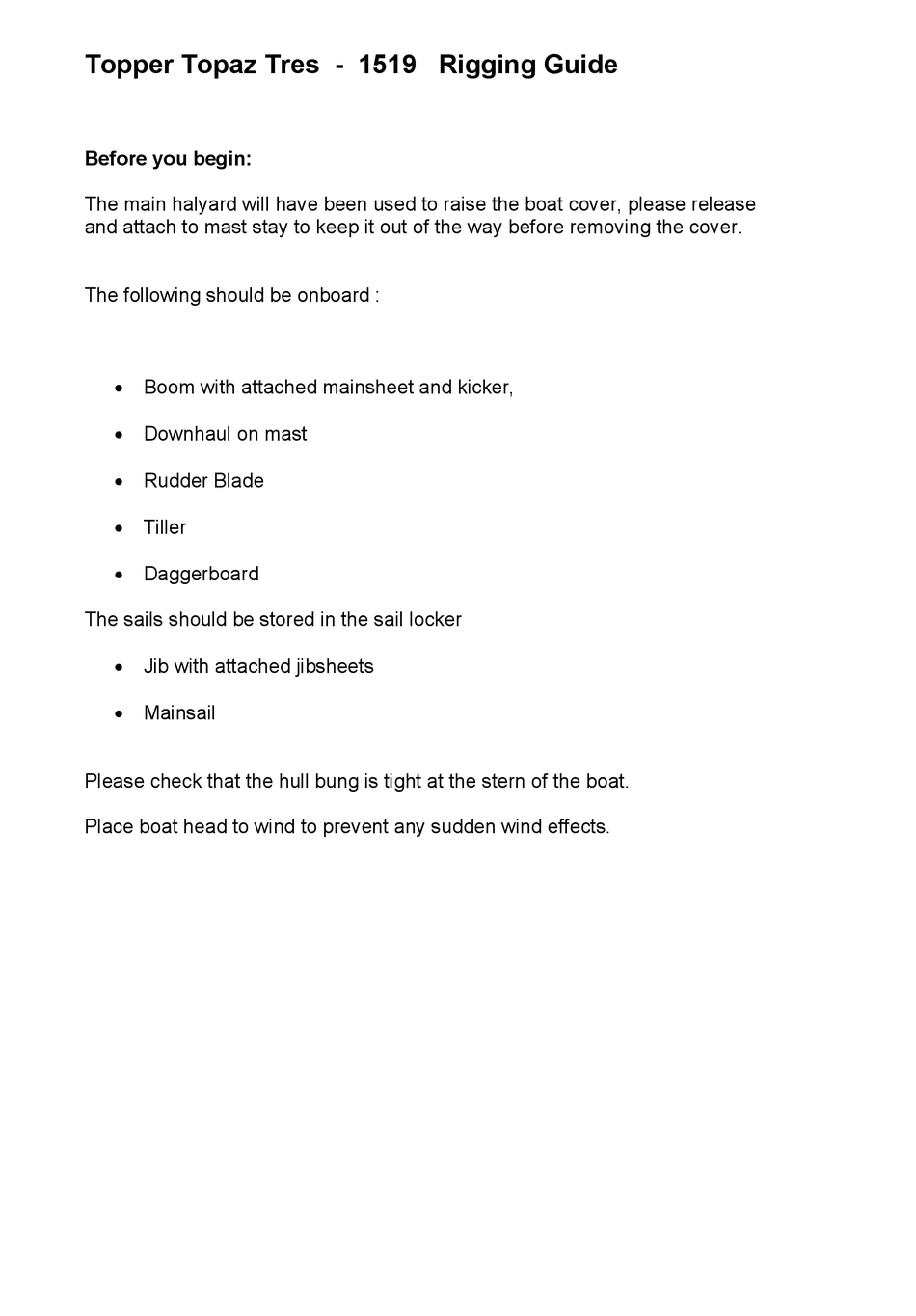

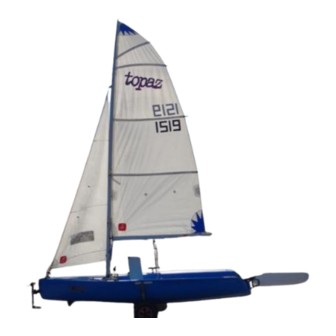

Topper Topaz Tres - 1519 Rigging Guide
Before you begin:
The main halyard will have been used to raise the boat cover, please release
and attach to mast stay to keep it out of the way before removing the cover.
The following should be onboard :
 Boom with attached mainsheet and kicker,
 Downhaul on mast
 Rudder Blade
 Tiller
 Daggerboard
The sails should be stored in the sail locker
 Jib with attached jibsheets
 Mainsail
Please check that the hull bung is tight at the stern of the boat.
Place boat head to wind to prevent any sudden wind effects.
