ENVIROMUX
Series
Wiring Instruction For:
ENVIROMUX-RKS REMOTE STATION KEYPAD
ENVIROMUX-ACK SERIES DIGITAL KEYPAD
ENVIROMUX-EDR-SF FAIL SAFE STRIKE
ENVIROMUX-EDR-SCR FAIL SECURE STRIKE
The ENVIROMUX devices listed above are intended for connection to an NTI ENVIROMUX-16D/5D/2D or an ENVIROMUX-MINI-LXO
(SYSTEM). For additional instruction on their proper use and operation, see any manuals that came with them and the manual
provided with your SYSTEM.
Wiring instruction for connection to these SYSTEMs can be found below and on the pages that follow.
For the purposes of these illustrations, the "Keypad" can be either the ENVIROMUX-RKS or ENVIROMUX-ACK.

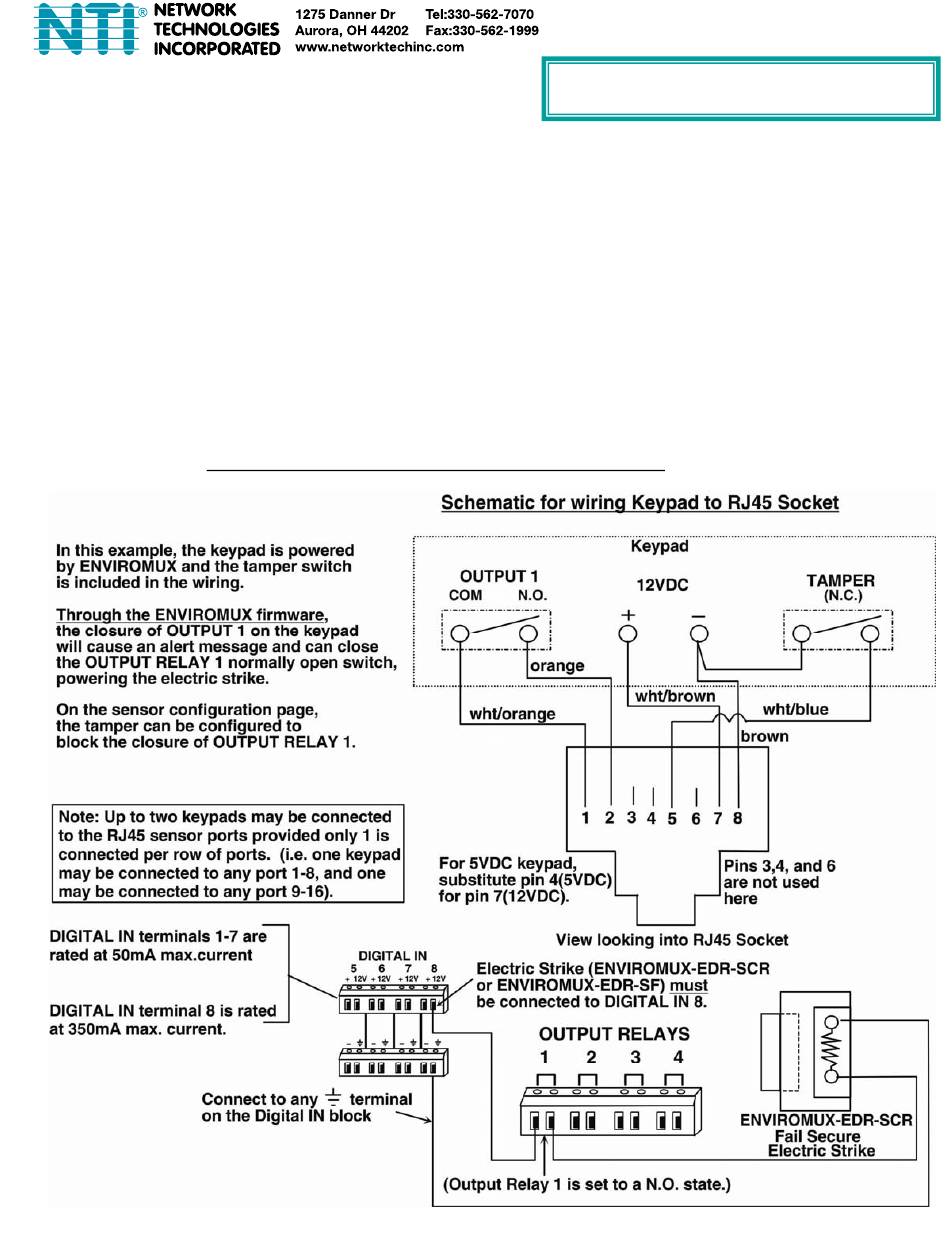

Wiring Connections for ENVIROMUX-16D

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ENVIROMUX-RKS and is the answer not in the manual?

Questions and answers

Related Manuals for NTI ENVIROMUX-RKS

Summary of Contents for NTI ENVIROMUX-RKS

  • Page 1 ENVIROMUX-EDR-SCR FAIL SECURE STRIKE The ENVIROMUX devices listed above are intended for connection to an NTI ENVIROMUX-16D/5D/2D or an ENVIROMUX-MINI-LXO (SYSTEM). For additional instruction on their proper use and operation, see any manuals that came with them and the manual provided with your SYSTEM.
  • Page 2 Photo Gallery of an Installation Two-wire cable to power electric strike CAT5 cable- plugged into sensor port on one end, connected to Keypad at the other end.
  • Page 3 Optional: Apply brown to 7, and white brown to 4 if you want to power the LEDs ENVIROMUX-RKS wired to CAT5 patch cable. Brown and white brown are optional. Green and white green are not used.
  • Page 4 ENVIROMUX-ACK wired to CAT5 patch cable. Green and white green are not used. The two-wire cable connects to the ENVIROMMUX- EDR-SCR...
  • Page 5 Wiring Connections for ENVIROMUX-LXO/ ENVIROMUX-2D / ENVIROMUX-5D The ENVIROMUX-MINI-LXO, ENVIROMUX-2D and ENVIROMUX-5D will also provide sensing and switching functions for the ENVIROMUX-RKS,ENVIROMUX-ACK, ENVIROMUX-EDR-SF, or ENVIROMUX-EDR-SCR. An example of how these components can be connected can be seen below. When sold for use with the ENVIROMUX-MINI-LXO, ENVIROMUX-2D or ENVIROMUX-5D,...
  • Page 6 Wiring Connections for other ENVIROMUX Keypads ENVIROMUX-ACK(R) ENVIROMUX-ACKR-WDB...
  • Page 7 ENVIROMUX-ACK-VWS ENVIROMUX-ACK-VWT...
  • Page 8 Warranty Information The warranty period on this product (parts and labor) is two (2) years from the date of purchase. Please contact Network Technologies Inc at (800) 742-8324 (800-RGB-TECH) or (330) 562-7070 or visit our website at http://www.networktechinc.com information regarding repairs and/or returns. A return authorization number is required for all repairs/returns. COPYRIGHT Copyright ©...
