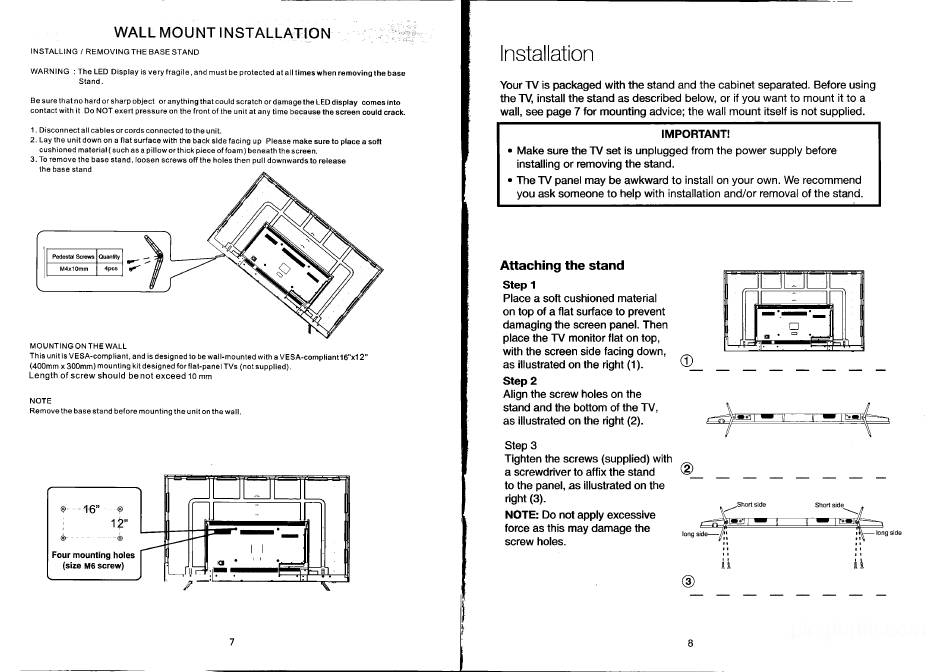

Installation; Attaching The Stand - RCA RTU7877 Instruction Manual

MOUNT
WALL
INSTALLING / REMOVING THE BASE STAND
WARNING : T h e LED Display is very fragile , and must be
Stand.
Be no or
sure that hard orsharp object anything that could scratch
contact with it Do N O T exert pressure on the front of the unit at any time because t h e screen could crack.
1. Disconnectall cables or cords connected to the unit.
2. Lay the unit down on a flat surface with the back side facing up Please make sure to place a soft
cushioned material ( such as a pillow orthick piece offoam) beneath the
3. To remove the base stand, loosen screws offthe holes then pull
the base stand
Pedestal Screws
M4x10mm
MOUNTINGONTHEWALL
This unit is VESA-compliant, and is designed to be waII-rnounted with a VESA-compliant16"x12"
(400mm x 300mm) mounting kit designed forflat-panel TVs (not supplied).
Length of screw should be not exceed 10mm
N O T E
Remove the base stand before mounting the uniton the wall.
@» w V- 46"
«g»
i 12"
' ,, . ,,é
Four mounting holes
(size M6screw)
INSTALLAHQNL ,7,
a t a i l timeswhen removingthe base
protected
or LEDdispIay
damagethe comesinto
screen.
downwardsto
release

Installation

Your TV is packaged with the stand and the cabinet separated. Before using
the TV, install the stand as described below, or if you want to mount it to a
wall, see page 7 for mounting advice; the wall mount itself is not supplied.
IMPORTANT!
- Make sure the TV set is unplugged from the power supply before
installing or removing the stand.
0 The TV panel may be awkward to install on your own. We recommend
you ask someone to help with installation and/or removal of the stand.

Attaching the stand

Step 1
Place a soft cushioned matetial
on top of a flat surface to prevent
damaging the screen panel. Then
place the TV monitor flat on top,
with the screen side facing down,
as illustrated on the right (1).
Step 2
Align the screw holes on the
stand and the bottom of the TV,
as illustrated on the right (2).
Step 3
Tighten the screws (supplied) with
a screwdriver to affix the stand
to the panel, as illustrated on the
right (3).
NOTE: Do not apply excessive
as
this may damage the
force
screw holes.
(D
X
n/E'
- U J - "'
®_ _ _ _ _ __ _
side\
/Short
side Short
E _ i ii _ -..- A
side: .. ;\_long
long
..
ii
(\Lt
__
side
