Entrematic PAS024AS User Manual

User's Guide for product version 0200 and higher
See product label for serial number

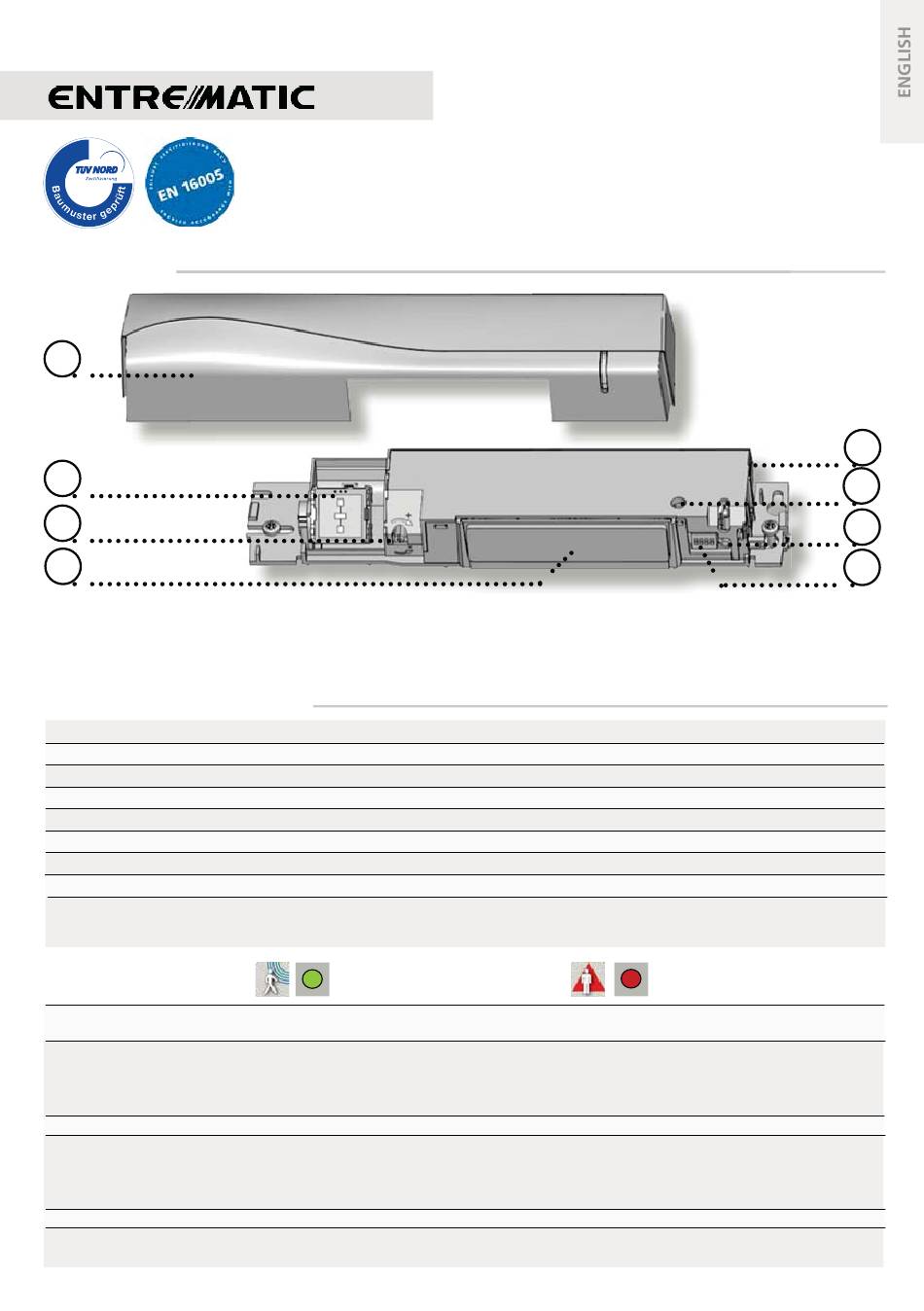

DESCRIPTION
1
2
3
4

TECHNICAL SPECIFICATIONS

Supply voltage:
Power consumption:
Mounting height:
Sensitivity of the test input:
Temperature range:
Degree of protection:
Noise:
Expected lifetime:
Norm conformity:
Detection mode:
Technology:
Angle:
Output:
Hold time output signal:
Response time on test request:
1. cover
2. radar antenna
(wide field)
3. radar field size adjustment
4. IR-prism
(2 m)
12 V - 30 V DC -5%/+10%
< 2.2 W
1.8 m to 3 m
< 1 V : Log. L; > 10 V: Log. H (max. 30 V)
-25 °C to +55 °C
IP54
< 70 dB
20 years
EN 16005; EN 12978; EN IEC 62061SIL2, EN 61496-1 ESPE Type 2; EN ISO 13849-1
Pl «c»
CAT.2
(under the condition that the door control system monitors the sensor at least once per door cycle)
GREEN
LED
Motion
Min. detection speed: 5 cm/s
Microwave doppler radar
Transmitter frequency: 24.150 GHz
Transmitter radiated power: < 20 dBm EIRP
Transmitter power density: < 5 mW/cm2
From 15 ° to 50 ° vertical (adjustable)
Solid-state-relay
(free of potential, free of polarity)
Max. contact current: 100 mA
Max. contact voltage: 42 V AC/DC
0.5 s
Specifications are subject to changes without prior notice. All values measured in specific conditions.
Entrematic PAS024AS(W)
Opening & safety sensor
for automatic sliding doors
PAS024ASW: energy-saving unidirectional sensor
PAS024AS: bidirectional sensor
5. main connector
6. IR-angle adjustment
7. push button for setup or DIP-setting confirmation
8. DIP-switch
(to be operated from SELV compatible power supplies only)
Presence
Typical response time: <256 ms
Active infrared with background analysis
Spot diameter: 0.1 m (typ)
Number of spots: 24
Number of curtains: 2
From -4 ° to +4 ° (adjustable)
Solid-state-relay
(free of potential, free of polarity)
Max. contact current: 100 mA
Max. contact voltage: 42 V AC/DC
0.3 s to 1 s (not adjustable)
Typical: < 5 ms
RED
LED
5
6
7
8
