Canarm L5050T3R Assembly And Installation Instructions

RGB-LED FLEXIBLE
TAPE LIGHTING KIT
QUESTIONS OR CONCERNS CONTACT AT:
1-800-265-1833 (English) / 1-800-567-2513 (French)
Monday through Friday 8:00 AM to 5:00 PM E.S.T.
WARNING:
• Risk of electric shock: turn power off before servicing - see instructions.
• This luminaire must be installed in dry location only and in open fixtures only.
• CAUTION - To reduce the risk of fire, do not install more than 2 luminaires in
compartment smaller than 12 inches by 12 inches by 12 inches.
• Use only insulated staples or plastics ties to secure cord;
• Route and secure cords so that they will not be pinched or damaged when the
cabinet is pushed to the wall;
• Position the portable cabinet light with respect to the cabinet so the lamp
replacement markings are able to be read during relamping.
• Not intended for recessed installation in ceilings, or recessed installation in soffits.
• The National Electrical Code (NEC) does not permit cords to be concealed
where damage to insulation may go unnoticed. To prevent fire danger, do not run
cord behind walls, ceilings, soffits, or cabinets where it may be inaccessible for
examination. Cords should be visually examined periodically and immediately
replaced when any damage is noted.
• This product is not a toy. Do not store or leave this luminaire in a location
accessible to young children.
• Do not install this luminaire in a heat-producing appliances.
• Risk of fire hazard, only connect a maximum of a TOTAL length to the following Adapter.
Adapter Model
Model
L5050T3R TP06-120200W
• Ensure NOT to exceed the above maximum (loading) total length before
adding any accesories.
• If this unit is installed in an outdoor location, the transformer (driver) must
be installed using an outdoor electrical box and fully covered by an outdoor
in use cover certified for wet location.
CAUTION:
• Remove batteries to prevent product damage when the product is not used for
long period of time.
• Batteries must be insert in correct position
• Do not throw batteries into fire or expose them to excess heat.
• This luminaire includes an adapter that is only designed for use with this luminaire.
PACKAGE CONTENTS
Transformer
Dimmer
(60" cord with on/off switch)
x 1
x 1
Connector with cord
x 1
L5050T3R
11/17
Maximum TOTAL length
13.1 feet (4 meter)
Connector
x 1
Mounting clip
Remote control
x 12
x 1
Screw
x 26

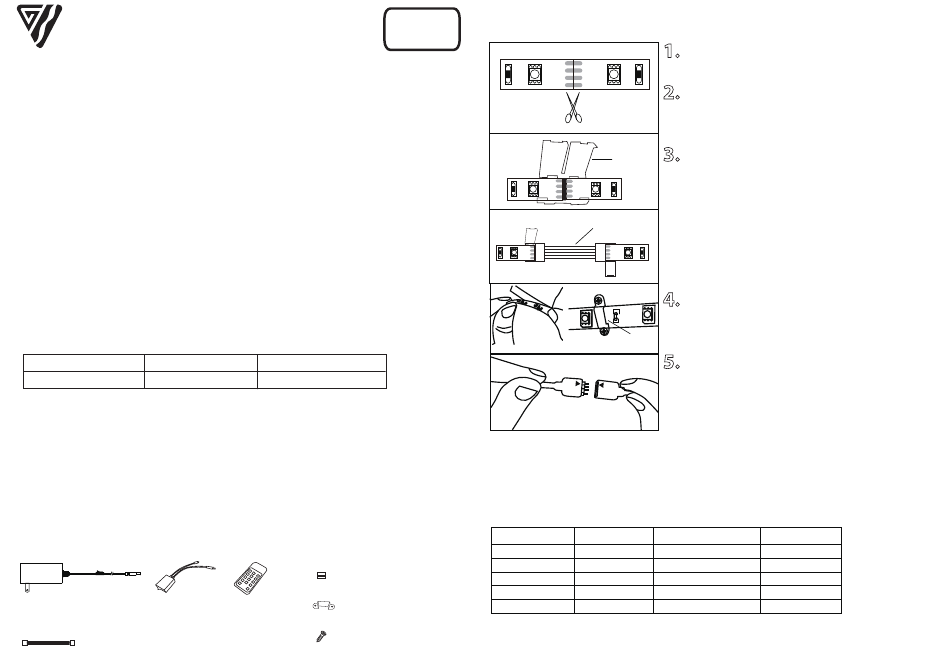

ASSEMBLEY AND INSTALLATION INSTRUCTIONS
1.
removing the backing exposing the adhesive. Ensure
+12V +12V
G G
mounting surface is clean and free of any debris or residue.
R R
B B 2.
tape at the flat welding plate along the line, as indicated
(avoid the bulge tin welding plate). Every 3 LED's in group is
cuttable.
Option 1
3.
Connector
the end of the strip and make sure the flat welding plate is
well inserted into the connector.
+12V +12V
Accessories sold separately
G G
R R
Flexible Tape Connector / Cord connectors - to connect the
B
B
strip
Option 1 : Direct connect
Option 2
Connector with cord
Option 2 : Connect the strip with cord connectors
Flexible Tape Extension - For areas where no-light is required
Import Note: When connecting the tapes, ensure "+"
+12V +12V
G G
R R
(anode) sign are matching with each other.
B B
4.
Place in the desired location. To obtain optimum adhesion,
ensure the surface is clean. Mounting clips are also provided
for extra support.
Mounting clip
5.
POLARIZED
power feed cable assembled on the tape to the RGB Dimmer
Control. Then connect the Dimmer Control to the power
supply cord and plug in. RGB Dimmer Control must be placed
in a dry location. Use the two screws to hold the Dimmer
Conrol in place.
Turn on switch in cord, now your remote is ready to use.
To use the RGB Remote Control make sure you are no more than 8 metres away from dimmer.
The RGB Remote Control is capable of many colour changing effects.
(flashing, strobe flash, fade, smooth etc.)
See table below for some options.
Pattern Table
Brightness+ Brightness-
Static red Static green Static blue
Static rose Static light green Static sapphire blue
Static orange Static green blue Static violet and grey
Static light yellow Static sky blue
Static brown and purple
Static yellow Static cyan Static purple
Tel: (613) 342-5424, Fax: (800) 263-4598
MEASURE – and lay-out the installation prior to
IF CUTTING – Use a pair of sharp scissors to cut the
CONNECT– use the connector to connect the strip. Insert
MOUNT – Remove the backing to expose adhesive tape.
CONNECT – Ensure the plug is polarized. Connect the
OFF ON
Static white
3 colors jump
3 colors gradual
7 colors gradual
7 colors jump
