Summary of Contents for Arthur Jackson CTC MIKE 2.0

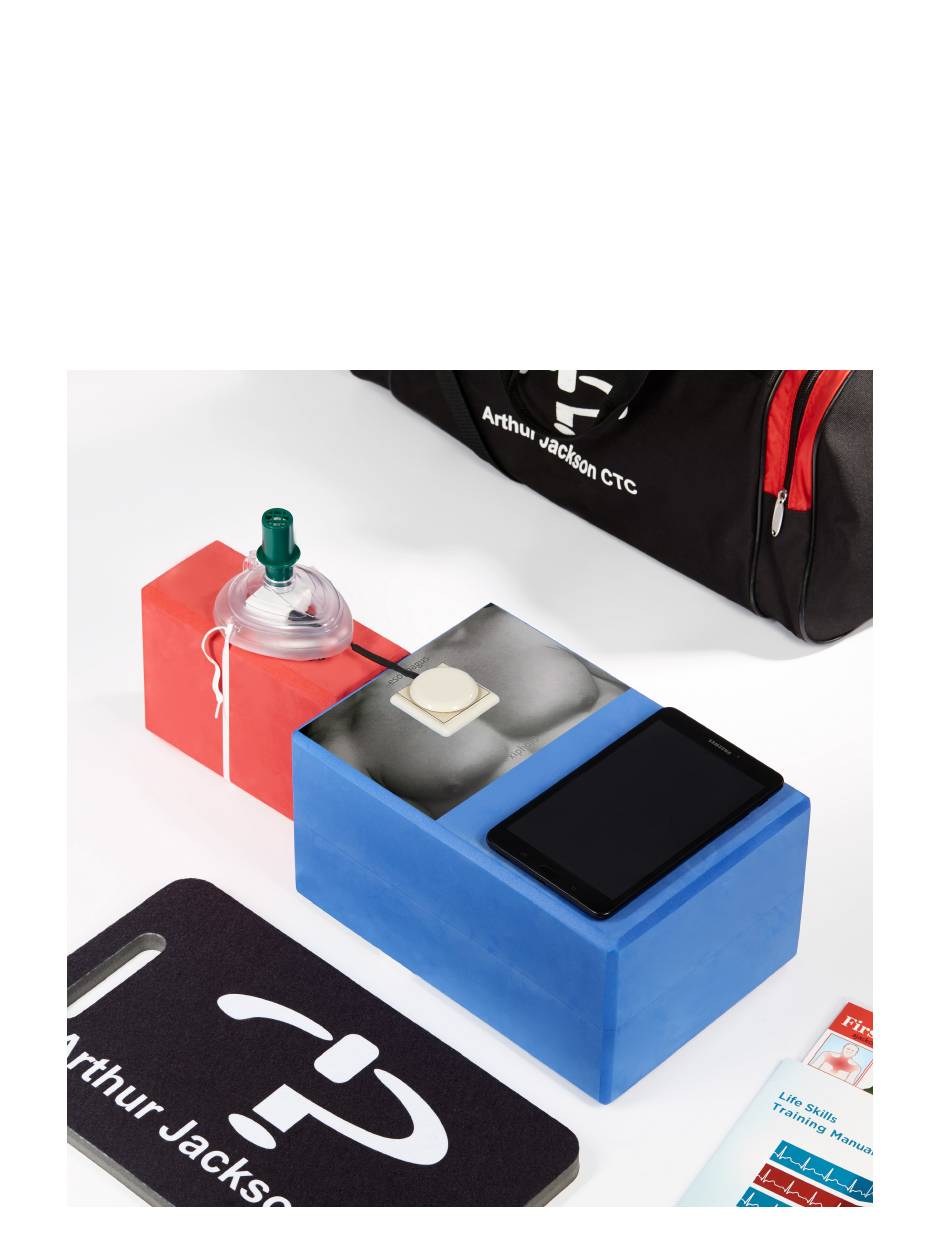

- Page 1 MIKE 2.0 TRAINING STATION SETUP AND OPERATIONS MANUAL...
- Page 2 Assembly of the Mike 2.0 training station The mike 2.0 training station is easy to assemble and operate. Assembly instructions are as follows; 1.0) Check contents of shipping container. Each container should contain the following pieces; A.) Head and Body units B.) Pressure Sensor...
- Page 3 2.0) Assemble the base unite by connecting the loop and hook (Velcro) strips together. (The units can be separated for storage in the carry bag.) Base unit has chest image plate mounted on it. The chest image can be a skeleton or human chest. 3.0) Mount the Samsung tablet on the lower half of the base unit as shown.
- Page 4 Charging the devices The Mike 2.0 training station is now assembled, and ready to use. You should be sure the interface and tablet are fully charged. The tablet is supplied with a connector on the unit to allow charging by plugging into any AC receptacle.
- Page 5 Operating the Mike 2.0 Training Station Once assembled, the Mike 2.0 station is ready for operation. When the purchase of the station was made, you received a down load of the APP, CPR Mirror, to your Android device, or the CPR Mir- ror APP was pre- loaded into the Samsung Tablet upon purchase.
- Page 6 I f your interface unit is on, the screen will change to the following; Finally you will get the final screen; Your APP is up and The icons at the top operating . The top control: Graph is air pressure 1.0) frequency of reading And the bottom is the Sensor pressure in pounds.
