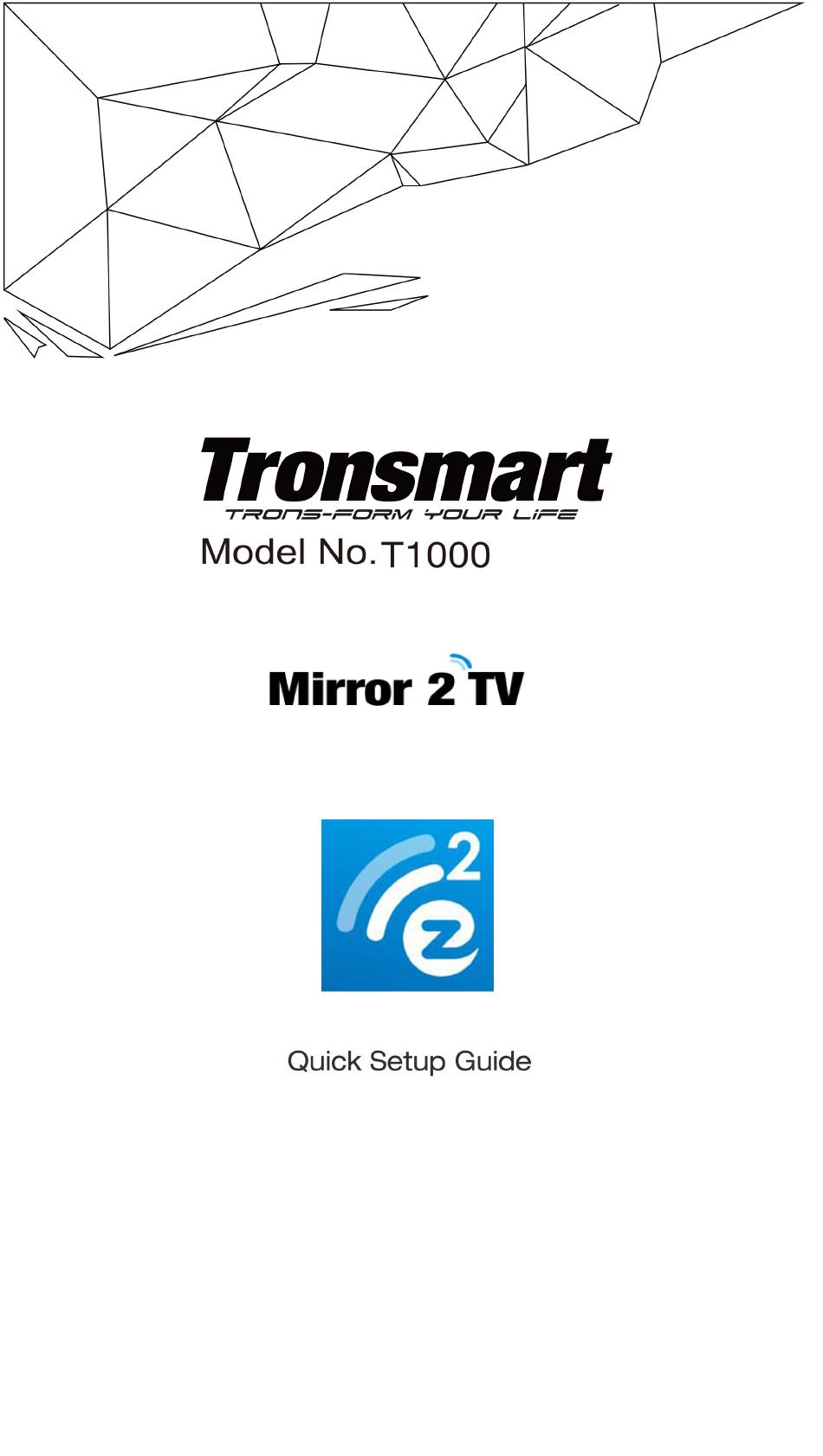

Tronsmart T1000 Mirror2TV Quick Setup Manual

Hide thumbs

Advertisement

Quick Links

Download this manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the T1000 Mirror2TV and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Tronsmart T1000 Mirror2TV

Summary of Contents for Tronsmart T1000 Mirror2TV

  • Page 2 Catalogue I. Product Notice II. Product Introduction III. Preparation IV. Windows PC / Mac V. Android / iOS VI. Setting Functions VII. Frequently Asked Questions...

  • Page 3: Product Notice

    I. Product Notice 1. This manual includes safety guidelines and proper operating instructions for the Miracast TV Dongle. Please read it completely before operating your new device. 2. Please do not expose this item to high temperatures, extreme humidity, or dusty environments. 3.

  • Page 4: Product Introduction

    II. Product Introduction 1、 Operates using the HDMI port of your TV, LCD, or Projector. 2、This product supports Windows, Mac, iOS, and Android Operating systems, the four most widely used in the world. 3、 The device gives you the ability to stream local and internet data, music, or video wirelessly from one device to a separate display in a few easy steps.
  • Page 5 III. Preparation 1. Before using, please connect the HDMI extending line to the Miracast dongle before you connect it to the HDMI port on your display / TV. 2. Power on your TV and adjust the signal output of the TV or display device using the proper channel.
  • Page 6 4. You will now see your screen display the image above. 5. The user name of your Wireless LAN connection will be:Tronsmart-050654F6 and the Password will be:23798965 6. The download for Windows / Mac OS users is located at the http://www.tronsmart.com/support/download-center...
  • Page 7 8. The download for Android users can be accessed by QR Code, Google Play Store (Search: EZ Cast), or the website. 9. Open the EZ Cast mode using your device and the EZ Cast will check for proper connection. If not connected, please use step 5 to attempt another connection manually.
  • Page 8 Operating System User 1. Install the EZ Cast APP. Open the EZ Cast mode using your device and EZ Cast app will check for a proper connection. If not connected, please use step 5 to attempt another connection manually. 2. Use either the Wifi link from your Mobile phone or the dongle connected to your display.
  • Page 9 1. Photos The sharing of photos from your Android device to your TV is now simple. Click the photo icon, EZ Cast will search out all of the photos on your Android device, and display them as a file.You can even click the Pen ，mark on the photo, and click the to save.
  • Page 10 and music from Youtube. 4. Camera Click on the camera icon to open your mobile phone or tablet camera to take a photo. Once open, adjust the focus ； Camera switch, Take a picture. 5. Streaming Share and stream the music and video from your Android device wirelessly to your TV through the data connection 6.
  • Page 11 Note: DLNA mode requires both devices to have DLNA installed. 7. EZ Air Used for Apple Air Play, functions exactly as the DLNA described above, but for the Iphone or the Ipad users to be able to share TV, music, and streaming video wirelessly. If the third-party APP supports Air Play, then you can also use apps viewable directly on your TV.

  • Page 12: Setting Functions

    Currently (1/2014), the Screen-mirroring function is still under development for iOS devices. Only EZ Cast and EZ Air are available for use by iOS devices until an update is available at http://www.tronsmart.com/support/download-center please check official website often. VI. Setting Functions 1.
  • Page 13 Tronsmart T1000 should now be connected to the internet. 3. Change Screen Resolution The Tronsmart T1000 supports a maximum of 1080p @ 30fps. You can change the resolution under the, “Settings” menu if you prefer a different display output. Please note, after you change the screen resolution the device will restart in order to apply the new display resolution.

  • Page 14: Frequently Asked Questions (Faq)

    6. If you are experiencing video buffering or stop / start, please confirm that your device is positioned properly to receive a strong and stable wireless signal for connection. Any questions in using Tronsmart T1000, please contact with support@tronsmart.com...
