Summary of Contents for DCT SimpleScan ADF

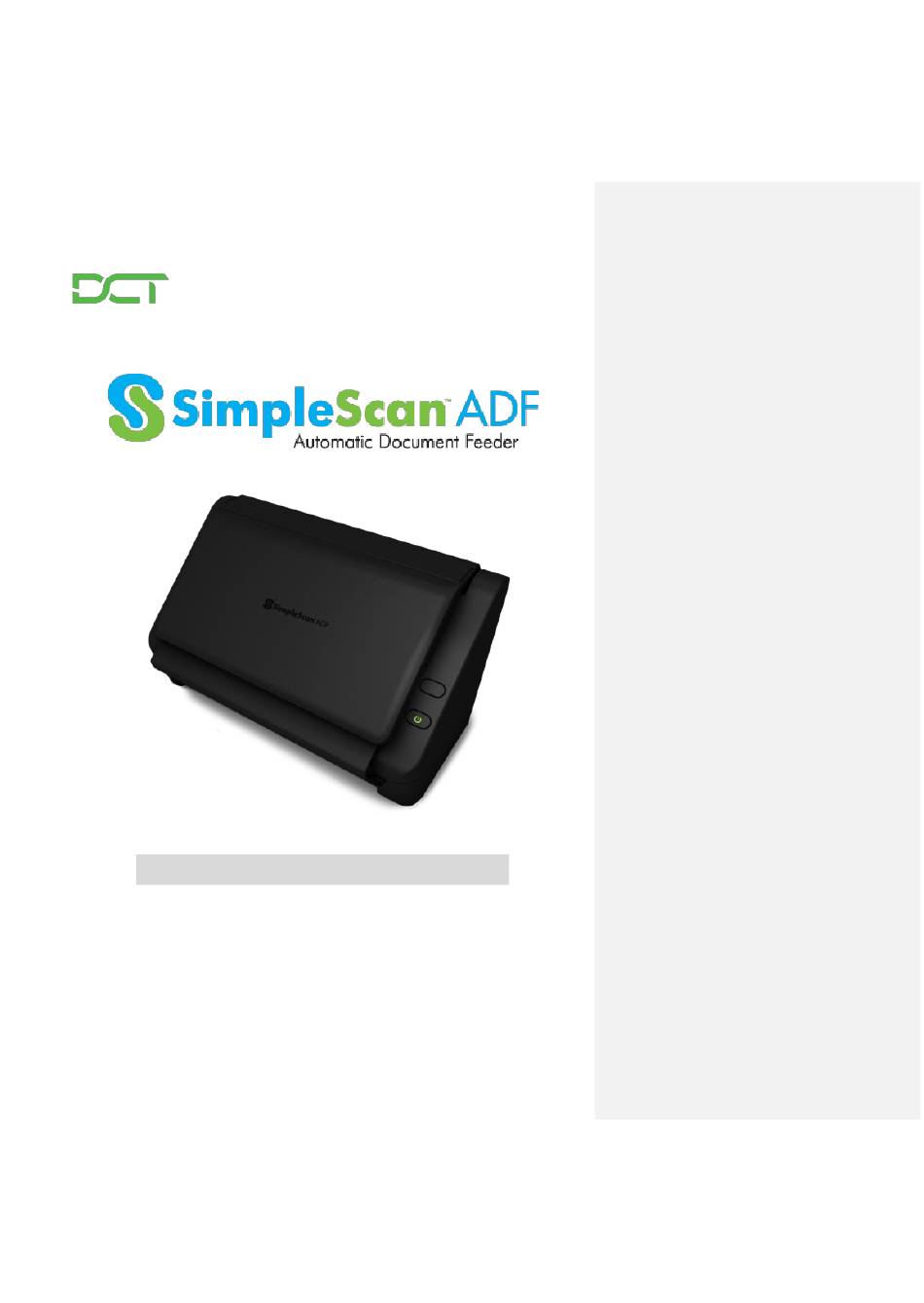

- Page 1 User’s Manual...
- Page 2 Warranty The information contained in this document is subject to change without notice. DCT makes no warranty of any kind with regard to this material, including, but not limited to, the implied warranties of fitness for a particular purpose. DCT shall not be liable for errors contained herein or for incidental or consequential damages in connection with the furnishing, performance, or use of this material.
- Page 3 Consult your point of purchase or service representative for additional suggestions. ® As an ENERGY STAR Partner, DCT has determined that this product meets the ENERGY STAR guidelines for energy efficiency.
- Page 4 EMC Directive 2004/108/EC CE compliance of this product is valid if powered with the correct CE-marked AC adapter provided by DCT. *This machine is certified as Class 1 LED product. This means that this machine does not produce hazardous laser radiation.
- Page 5 User’s Manual System Requirements IBM compatible PC 586, Pentium or higher Microsoft Windows XP(SP3), Windows Vista/Windows 7/8/10 USB port 2.0 (compatible with USB 1.1) At least 100 MB of free hard disk space (500 MB is recommended) At least 128 MB of system memory (512 MB of RAM is ...
- Page 6 User’s Manual 1. Introduction Congratulations on your purchase of the color sheet-fed image scanner. With this scanner, you can scan documents from auto document feeder increase your productivity. Before you install and operate the new scanner, please take a few minutes to read through this manual. It provides proper instructions for you to unpack, install, operate and maintain the scanner.
- Page 7 User’s Manual Scanner Main Unit USB Cable Power Adapter & Power Cord Note: 1. Only use the AC adapter included. Using other AC adapters may damage the machine and void the warranty. 2. Please unpack the packing carefully, and check the contents against the checklist.
-
Page 8: Scanner Installation
User’s Manual 2. Scanner Installation Precautions Keep the scanner out of direct sunlight. Direct exposure to the sun or excessive heat may cause damage to the unit. Do not install the scanner in a humid or dusty place. Be sure to use the proper AC power source. - Page 9 User’s Manual 2.1 Installing the Scanner Driver and Connecting the Cables Visit www.docketport.com/ADF to download the TWAIN driver to use your scanner with any TWAIN compliant scanning application. 2.1.1 Connecting to Power Plug the small end of the power adaptor into the power jack of your scanner.
- Page 10 User’s Manual 2.1.2 Connecting to Computer Connect the square end of the USB cable to the USB port of your scanner. Connect the rectangle end to the USB port of your computer. The computer should detect a new USB device and prompt a “New Hardware Found”...
-
Page 11: Using The Buttons
LED will be lit. To turn off the scanner, press the Power Switch button, the Power LED will be off. Scan Button Power Button Scan Button not operable with this specific SimpleScan ADF model. Initiate scanning within your TWAIN compliant scanning application. -
Page 12: Maintenance
User’s Manual Maintenance Cleaning the ADF From time to time the pad assembly and feeding rollers may become contaminated with ink, toner particles or paper dust. In this case the scanner may not feed documents smoothly. If this occurs please follow the cleaning procedures to return your machine to its original state. - Page 13 User’s Manual 4.2 Cleaning the Calibration Area Open the front cover to the left. Wet a clean cloth with some isopropyl alcohol. (95%) Wipe the glass and the white area as illustrated in below to rid the dust or dirt.
-
Page 14: Troubleshooting
User’s Manual 5. Troubleshooting 5.1.1.1 Clearing a Paper Jam In the event of a paper jam, follow the procedures below to remove the paper: Gently open the scanner ADF cover. Carefully pull the paper out of the ADF unit. Close the scanner ADF cover. Your Scanner is now ready to use. - Page 15 User’s Manual 5.2 Questions and Answers Question: Paper becomes jammed during scanning. Answer: 1) Open the scanner front door. 2) Pull out the jammed paper carefully. 3) Close the scanner front door. Question: More than one sheet of paper is fed into the scanner.
- Page 16 User’s Manual Question: Why is it my scanned image always comes out too dark? Answer: 1) Please adjust the screen settings to SRGB. 2) Please adjust the brightness settings on the screen from application software. Question: Sometimes it seems the scanner does not detect paper? Answer: The scanner paper sensor is located at the center of the paper guide.
-
Page 17: Technical Service
User’s Manual Technical Service Before contacting DCT Support, please prepare the following information: Scanner serial & revision number (located on the bottom of the scanner); Hardware configuration (e.g., your host CPU type, RAM size, free disk space, display card, interface card);... -
Page 18: Specifications
User’s Manual 7. Specifications All specifications are subject to change without notice. Model Number： SimpleScan ADF Technology: CIS (Contact Image Sensor) Light Source: Optical Resolution: 600 dpi * 1200 dpi Scanning Modes: Black & White Gray Color ADF Capacity: Up to 50 pages (20lbs)
