© 2016 Pure Lighting. All Rights Reserved.

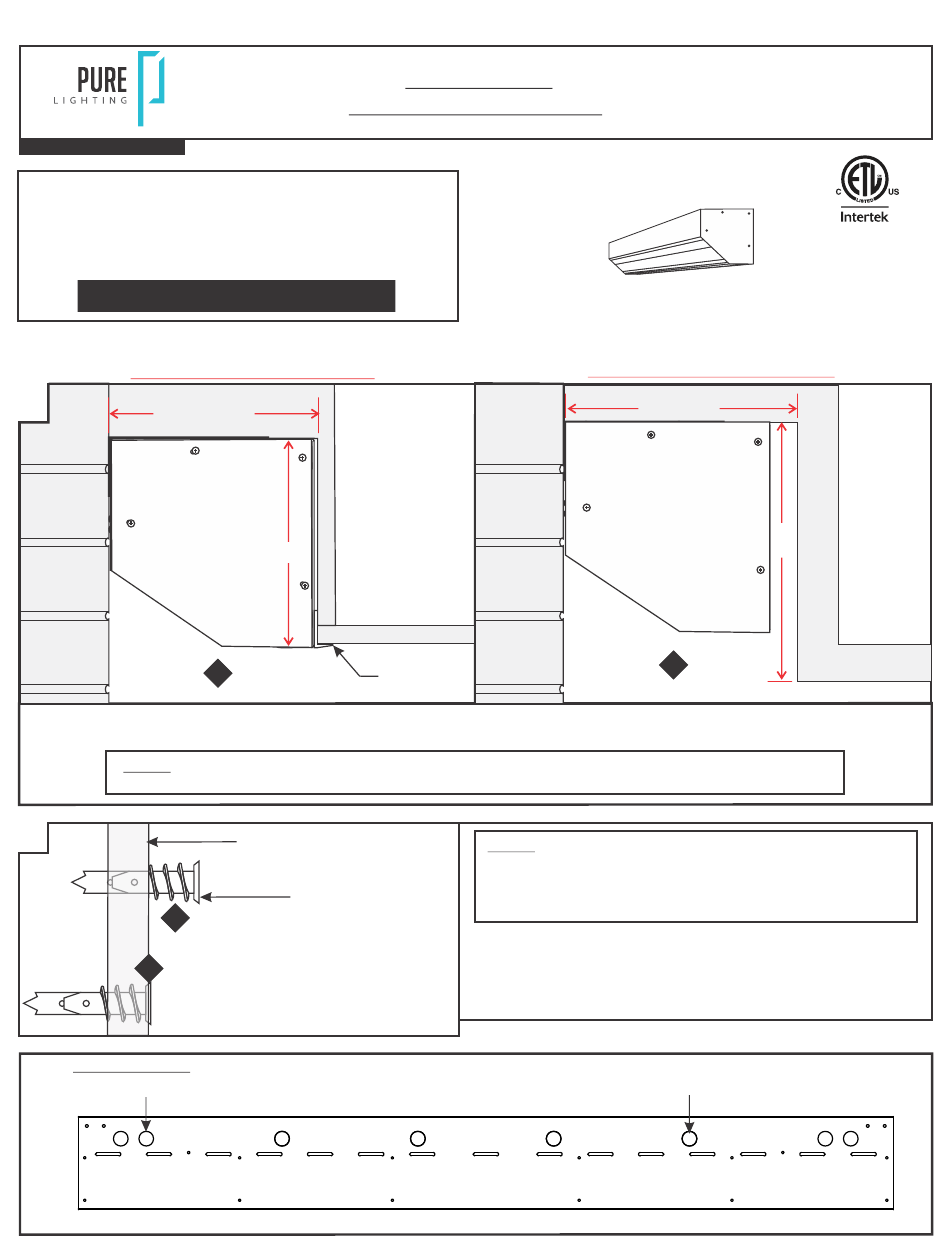

PART# SH_-SP_-RGB
IMPORTANT INFORMATION
- This product is suitable for damp locations or outdoor
under awning.
- This instruction shows a typical installation.
- This product is ETL listed.
SAVE THESE INSTRUCTIONS!
Install the Fixture
FLUSH CEILING INSTALLATION
A
NOMINAL
FIXTURE
1: Determine the location where the fixture will be installed. In most cases, fixture will be installed in either a flush ceiling or in a
in-depth cove installation.
NOTE:
If installing fixture in a in-depth cove location the housing lip does not have to be used. Loosen and
remove the four Phillips screws and pull the housing lip off.
B
2
3
Hole Identification
MOUNTING BRACKET KNOCKOUT
Installation Instruction
6"
5.5"
DRYWALL
HOUSING
1
LIP
WALL
ANCHOR
Stratus RGB
NOTE:
Use the fixture as a template by aligning it against the
wall, ceiling, and the electrical conduit(s), and mark the
necessary holes for installation. Punch out the marked knockout
holes. Refer to the hole identification drawing below for proper
installation.
2: Tap the anchors onto the marked locations up to the threaded
portion with a hammer.
3: Screw the threaded portion of the anchors in with a Phillips
screwdriver.
Top View of Housing
1
1718 W. Fullerton Ave
Chicago, IL 60614
Tel: 773-770-1195
Fax: 773-935-5613
www.purelighting.com
info@purelighting.com
IN-DEPTH COVE INSTALLATION
7"
MINIMUM
FIXTURE
1
ELECTRICAL KNOCKOUT
INS# STRATUS_RGB_2
10"
COVE
CEILING
Advertisement
Table of Contents
Summary of Contents for Pure Lighting Stratus RGB
-
Page 1: Important Information
Chicago, IL 60614 Tel: 773-770-1195 Installation Instruction Fax: 773-935-5613 www.purelighting.com info@purelighting.com © 2016 Pure Lighting. All Rights Reserved. PART# SH_-SP_-RGB IMPORTANT INFORMATION - This product is suitable for damp locations or outdoor under awning. - This instruction shows a typical installation. - Page 2 CEILING 4: Mount each wall bracket onto the anchors and secure it with the provided four #8 screws. #8 SCREW WALL BRACKET COVE CEILING WALL BRACKET LOCK NUT & WASHER ANCHOR WALL 10" HOUSING COVE CEILING 7" MINIMUM 5: Align the fixture to the wall bracket and secure to the wall bracket with the lock nut and washer.
- Page 3 12: Secure the end caps to the housing with the four screws provided. HOUSING SCREW END CAP COVE CEILING PANEL SCREW DRIVER 13: To access the inside of fixture, you can use a flat head screw TEXTURED WALL driver to pull the LED panel out. NOTE: If the fixture was installed against drywall, plaster and then FLUSH CEILING...
- Page 4 GROUND +24 VDC DATA + DATA - GROUND...
