Adaptive SAS-500-WM Installation Manual

Installation Guide

Adaptive Technologies Group
1635 E. Burnett Street | Signal Hill, CA 90755 USA
Ph: 562.424.1100 | Fax: 562.424.3520

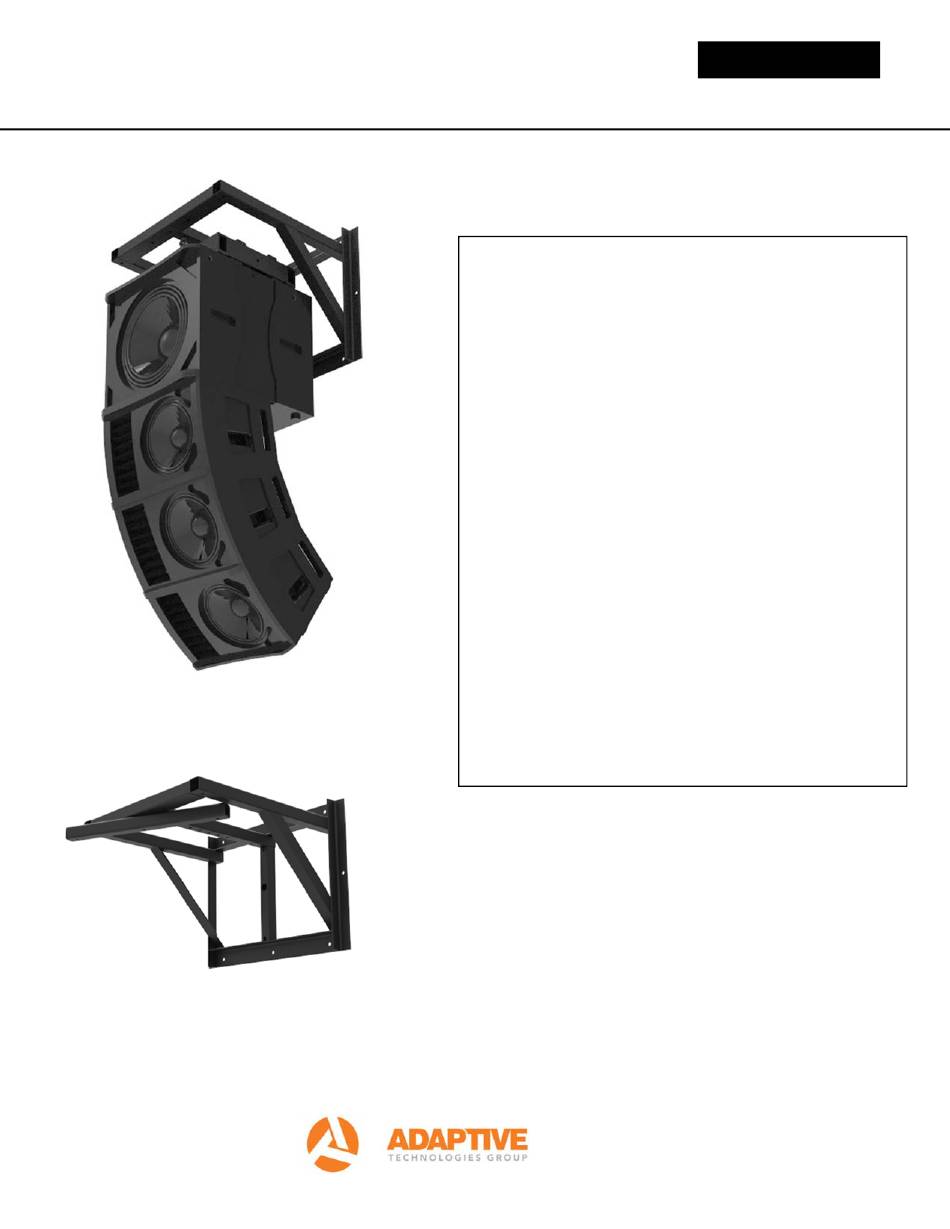

The SAS-500-WM line array wall mount is a load rated universal wall arm
system for mounting loudspeakers weighting up to 500lb/228 kg to walls &
other vertical structures. This heavy duty stainless steel wall arm mount is
rated for extreme outdoor environment.

Note to installers

Due to the wide variety of wall structures, materials and mounting methods,
these instructions assume that the installing contractor will exercise proper
judgment in selecting the mounting area and hardware.
As a guide, the installation, when complete should be capable of
supporting 5 to 10 times the actual applied load. Also, always use a
backup safety system such as a safety cable.
To assure a trouble-free installation, read and follow these
instructions carefully before beginning. If you have doubts about
the integrity of the structure you are mounting to or you are not
sure about the proper hardware to use, consult a structural
and/or hardware specialist.
Be sure that all the following items are included in this kit before
proceeding:
1 pc 32" Wall Mount Assembly
1 pc 27" Cross Arm Tube
6 pcs ½" Flat Washer
2 pcs 2" sq rib Endcap
1 pc .5 IDx1.5 OD Nylon Washer
2 pcs 3/8"-16x1.25 Eyebolt
2 pcs 3/8-16 Nylock Nut
1 pc Instruction Sheet
NOTE: Screws, bolts, and washers to attach line array wall mount to
structure are not included.
Step 1:
Locate and mark the desired installation area. If needed mark the wall with
the mounting holes of the SAS-500-WM using the top and bottom center
holes.
Step 2:
Attach the line array wall mount to the wood structure using the
appropriate hardware, such as lag screws for wood structure and ½"
dia. anchor bolts for concrete walls. Make sure that the wall is strong
enough to carry the 5 times the load of the speaker and wall arm.
Consult with your local hardware specialist for the proper hardware to
use (Figure 1).
SAS-500-WM
SAS-200-24-
32" LINE ARRAY WALL MOUNT
2 pcs ½-13 x 3.5" Eyebolt
3 pcs ½"-13 Nylock Nut
3 pcs ½" Split Lock Washer
2 pcs 3/8" Shackle
1 pc ½-13 x 5.5" Hex Cap Bolt
4 pcs 3/8" Flat Washer
ALWAYS INSTALL SAFETY CABLES
Mounting and/or suspension loudspeakers requires experienced
WARNING:
professionals. Improperly installed loudspeakers can result in property damage,
personal injury and/or liability to the installing contractor
